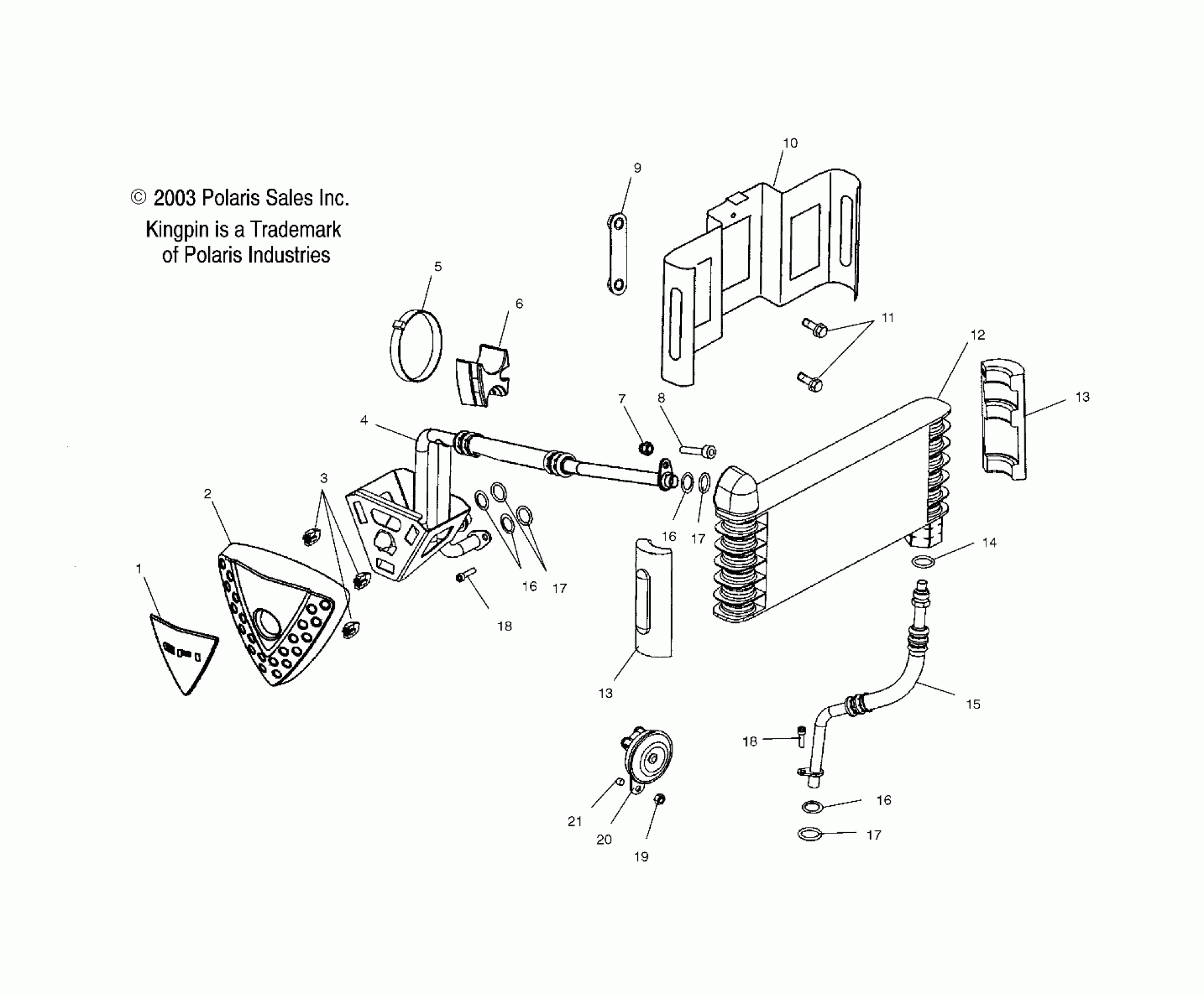

Polaris KINGPIN ALL OPTIONS - V04CB16 ENGINE, OIL COOLING - V04CB16/ALL OPTIONS (4989568956C07) Diagram

#

Description
Price

1

Badge, Oil Line Cover

7170617

$45.24

2

COVER, IGNITION/COIL

5245659

Unavailable

3

Isolator, Cover Mount

5412364

Unavailable

4

Line, Inlet

5334192

$237.30

5

Cable Tie

7080906

$6.79

6

Mount, Rubber

5412188

$31.11

7

NUT-ACORN,M6,SS,DIN 1587

7547115

Unavailable

8

Screw

7517384

$8.79

9

Plate, Nut

1013984

Unavailable

10

Bracket, Oil Cooler, Silver

1240142-385

$37.62

10

Bracket, Oil Cooler, Black

1240142-067

$38.41

11

Screw

7517839

$5.59

12

Cooler, Oil, Silver

1240145-385

$245.24

12

Cooler, Oil, Black

1240145-067

$245.24

13

Isolator, Cooler

5412105

$6.59

13

Isolator, Cooler

5412105

$6.59

14

O-RING

5412027

Unavailable

15

Line, Outlet

5334191

$102.38

16

Washer, Flat

7556113

$4.79

16

Washer, Flat

7556113

$4.79

16

Washer, Flat

7556113

$4.79

17

O-Ring

5411356

$2.39

17

O-Ring

5411356

$2.39

17

O-Ring

5411356

$2.39

18

SCREW

7517405

$10.39

18

SCREW

7517405

$10.39

19

NUT

7547076

$2.60

20

Horn, Disk

4010739

$41.27

21

Spacer, Horn

5133647

$4.37
