- KINGPIN ALL OPTIONS - V04CB16
ELECTRICAL, HARNESSES, SENSORS and SWITCHES - V04CB16/ALL OPTIONS (4989568956C05)

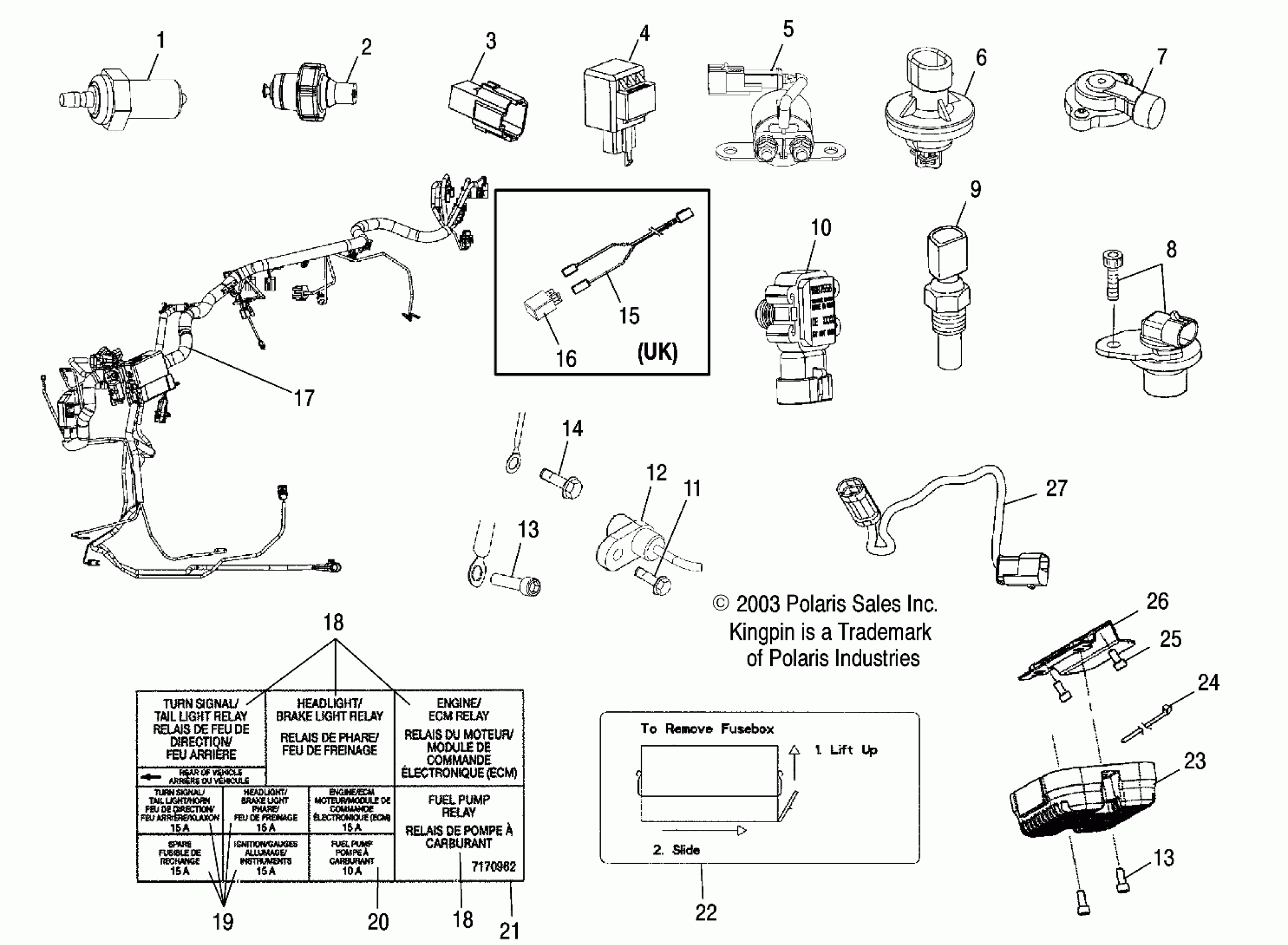

Polaris KINGPIN ALL OPTIONS - V04CB16 ELECTRICAL, HARNESSES, SENSORS and SWITCHES - V04CB16/ALL OPTIONS (4989568956C05) Diagram
#
Description
Price
1
Switch, Neutral Indicator
4110235
Unavailable
2
Switch, Oil Pressure
4010649
Unavailable
3
Diode
2410358
Unavailable
4
Relay, Flasher
2410338
$72.84
5
NUT
7547270
$3.99
5
Solenoid, Starter
4010947
Unavailable
6
Sensor, Air Temperature
4040077
Unavailable
7
Sensor, Throttle Position
4010225
Unavailable
7
O-Ring
1500201
$2.87
8
SCREW
7517272
$7.19
8
Sensor, Crankshaft Position
4110217
Unavailable
9
Sensor, Engine Temperature
4040076
Unavailable
10
Sensor, MAP
4040078
Unavailable
11
SCREW
7518141
$4.79
12
Sensor, Speed
4011111
$183.95
13
SCREW
7517272
$7.19
13
SCREW
7517272
$7.19
14
SCREW
7518140
Unavailable
15
Harness, Headlight, UK
2461207
Unavailable
16
Relay (UK)
4010945
Unavailable
17
Harness, Main Wire
2461180
$529.99
18
Relay, Micro
4010948
$28.32
18
Relay, Micro
4010948
$28.32
19
FUSE-MINI BLADE,15 AMP
2410280
Unavailable
20
FUSE-IGNITION,10 AMP
2434016
$4.79
21
Decal, Fuse Box
7170962
Unavailable
22
DECAL, FUSE BOX REMOVAL
7171031
Unavailable
23
Regulator, Voltage [Black]
2410337
Unavailable
23
Regulator, Voltage, Silver
2410421
Unavailable
24
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
$2.41
25
Screw
7517739
$9.59
26
Bracket, Voltage Regulator [Black]
1013510
$27.94
26
Bracket, Voltage Regulator, Silver
1013623
$41.27
27
Harness, Jumper, Fuel Injector
2461135
Unavailable
