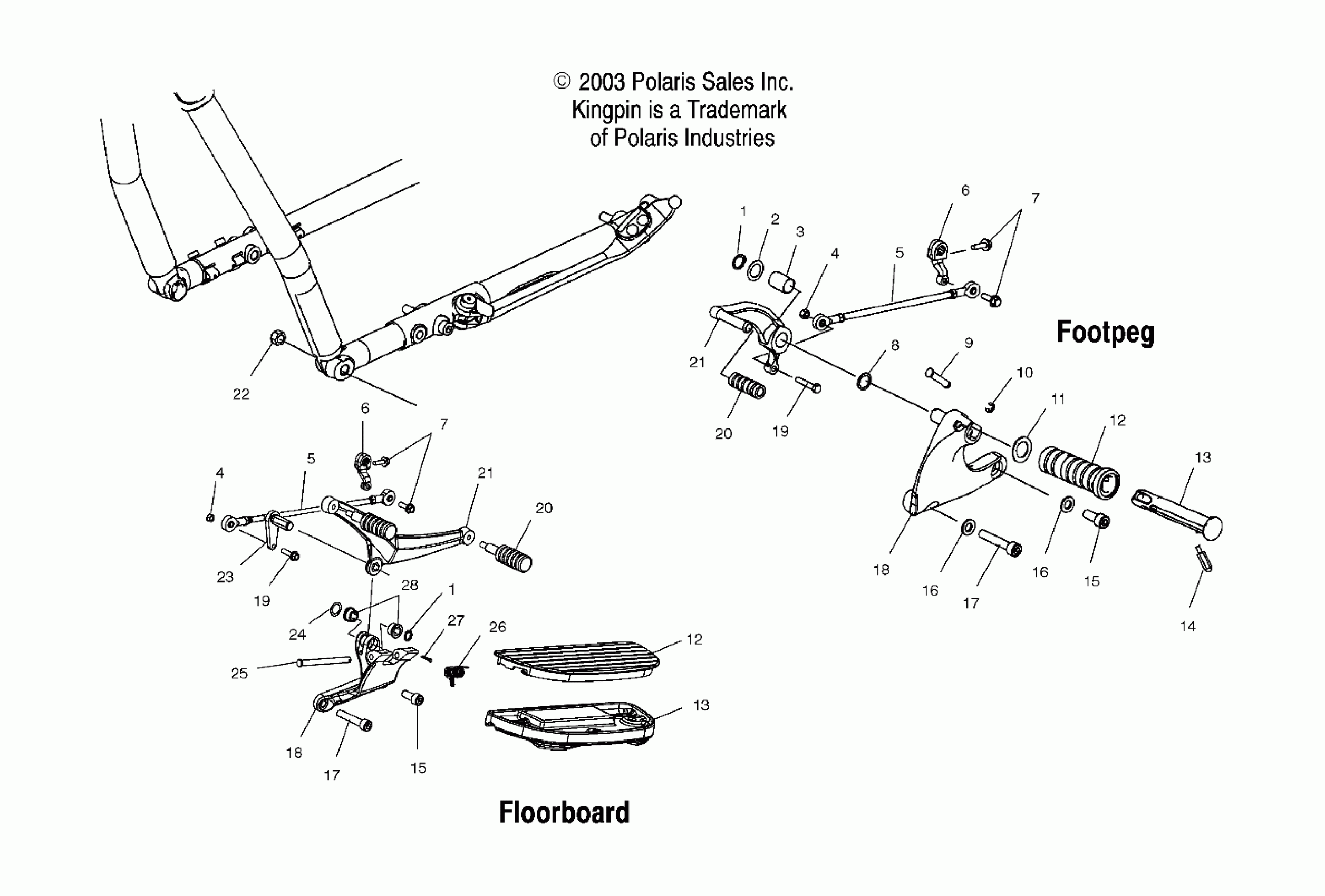

Polaris KINGPIN ALL OPTIONS - V04CB16 CHASSIS, L.H. FOOTPEG/FLOORBOARD/SHIFTER - V04CB16/ALL OPTIONS (4989568956A06) Diagram

#

Description
Price

1

Ring, Retaining, External [Floorboard]

7710508

$4.35

1

Ring, Retaining, External [Footpeg]

7710499

$7.19

1

Ring, Retaining, External [Floorboard]

7710508

$4.35

1

Ring, Retaining, External [Footpeg]

7710499

$7.19

2

WASHER, FLAT

7556075

Unavailable

3

BEARING-SHIFT PEDAL

3514335

Unavailable

4

NUT

7547230

Unavailable

4

NUT

7547230

Unavailable

5

Asm., Shifter Linkage [Footpeg]

1013957

Unavailable

5

Asm., Shifter Linkage [Floorboard]

1014246

Unavailable

5

Asm., Shifter Linkage [Footpeg]

1013957

Unavailable

5

Asm., Shifter Linkage [Floorboard]

1014246

Unavailable

6

LEVER, SHIFTER

5133530

Unavailable

6

LEVER, SHIFTER

5133530

Unavailable

7

SCREW

7518141

$4.79

7

SCREW

7518141

$4.79

8

WASHER, WAVE

7556273

Unavailable

9

Pin, Pivot

7661167

$7.94

10

Ring, Retaining

7710545

$1.98

11

Washer, Flat

7556241

Unavailable

12

PAD, FOOTPEG

5412256

Unavailable

12

PAD, FLOORBOARD, DRIVER

5412456

Unavailable

12

PAD, FOOTPEG

5412256

Unavailable

12

PAD, FLOORBOARD, DRIVER

5412456

Unavailable

13

Footpeg, CC, LH

5133540-411

$105.02

13

Floorboard, Driver

5134061-425

Unavailable

13

Footpeg, CC, LH

5133540-411

$105.02

13

Floorboard, Driver

5134061-425

Unavailable

14

FEELER, FOOTPEG

5133539

Unavailable

15

SCREW

7518101

Unavailable

15

SCREW

7518101

Unavailable

16

WASHER, FLAT

7556234

$3.19

16

WASHER, FLAT

7556234

$3.19

17

SCREW

7518146

Unavailable

17

SCREW

7518146

Unavailable

18

Support, Footpeg, Silver, LH

5133527-385

Unavailable

18

Support, Floorboard, Black, LH

5133863-067

$170.63

18

Support, Footpeg, Black, LH

5133527-067

$184.13

18

Support, Floorboard, Silver, LH

5133863-385

$289.68

18

Support, Footpeg, Silver, LH

5133527-385

Unavailable

18

Support, Floorboard, Black, LH

5133863-067

$170.63

18

Support, Footpeg, Black, LH

5133527-067

$184.13

18

Support, Floorboard, Silver, LH

5133863-385

$289.68

19

Screw [Floorboard]

7518329

Unavailable

19

Screw [Footpeg]

7518147

Unavailable

19

Screw [Floorboard]

7518329

Unavailable

19

Screw [Footpeg]

7518147

Unavailable

20

PEG-SHIFTER, BRAKE [Floorboard]

5412493

Unavailable

20

Pad, Shift Pedal [Footpeg]

5411364

$23.99

20

PEG-SHIFTER, BRAKE [Floorboard]

5412493

Unavailable

20

Pad, Shift Pedal [Footpeg]

5411364

$23.99

21

Pedal, Shifter Lever [Floorboard]

5134179-410

$319.99

21

Pedal, Shift Lever, Silver [Footpeg]

5133528-385

Unavailable

21

Pedal, Shift Lever, Chrome [Footpeg]

5133528-156

Unavailable

21

Pedal, Shifter Lever [Floorboard]

5134179-410

$319.99

21

Pedal, Shift Lever, Silver [Footpeg]

5133528-385

Unavailable

21

Pedal, Shift Lever, Chrome [Footpeg]

5133528-156

Unavailable

22

NUT

7547039

Unavailable

23

Shaft, Shift Lever

1014589

$35.71

24

Washer, Wave

7556322

$15.99

25

PIN, FLOORBOARD SUPPORT

7661095

$2.99

26

SPRING, SUPPORT, FLOORBOARD

7041623

$27.99

27

PIN, COTTER

7661094

Unavailable

28

Bushing, Shift, Rear

3514470

Unavailable
