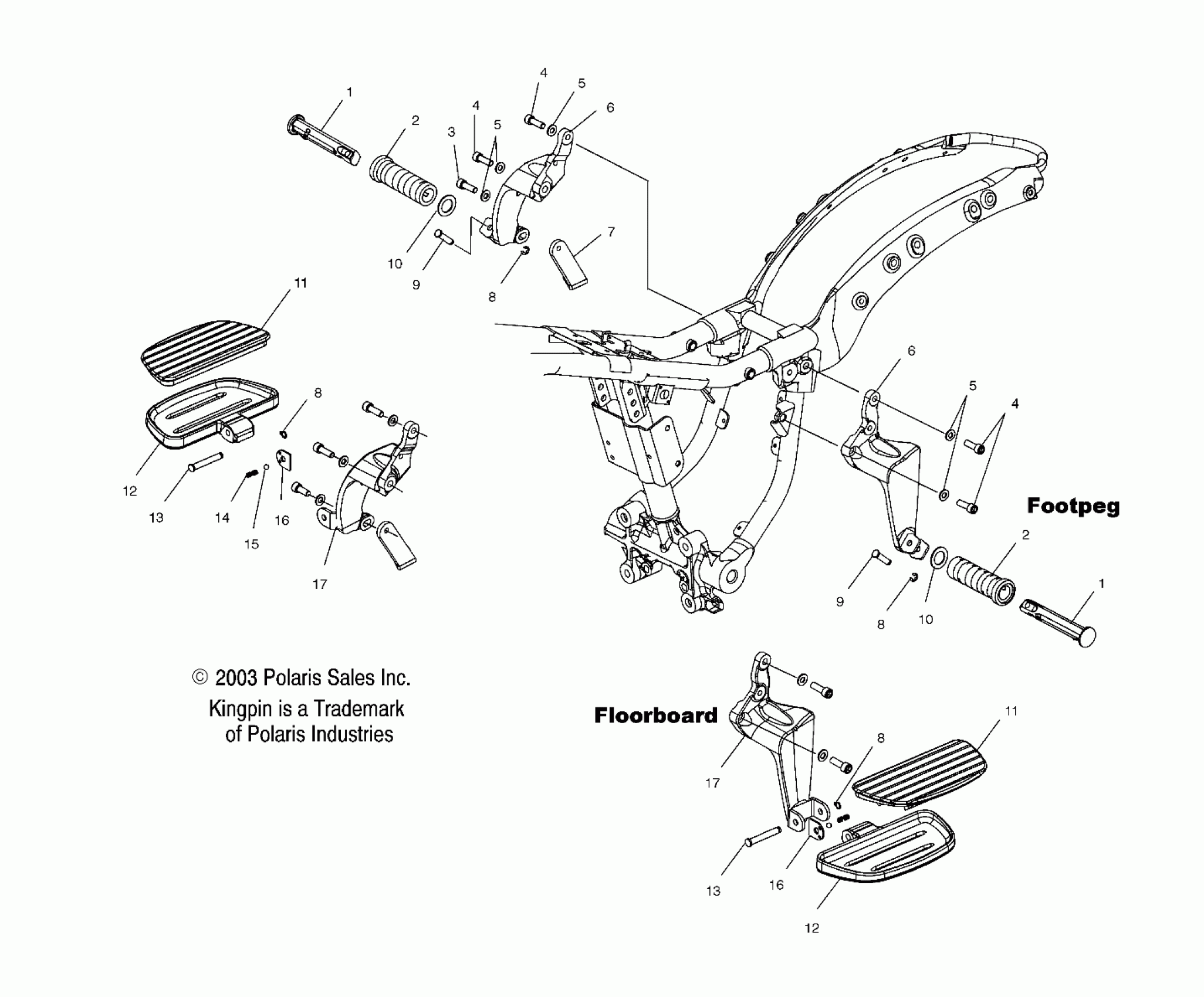

Polaris KINGPIN ALL OPTIONS - V04CB16 CHASSIS, FOOTPEGS, PASSENGER, FLOORBOARDS - V04CB16/ALL OPTIONS (4989568956A05) Diagram

#

Description
Price

1

Footpeg, Clear, LH

5133540-411

$105.02

1

Footpeg, Clear, RH

5133526-411

Unavailable

1

Footpeg, Clear, LH

5133540-411

$105.02

1

Footpeg, Clear, RH

5133526-411

Unavailable

2

PAD, FOOTPEG, REAR

5412261

Unavailable

2

PAD, FOOTPEG, REAR

5412261

Unavailable

3

Screw

7518149

$19.84

4

SCREW

7518142

$10.39

4

SCREW

7518142

$10.39

4

SCREW

7518142

$10.39

5

Washer, Flat

7556245

$4.79

5

Washer, Flat

7556245

$4.79

5

Washer, Flat

7556245

$4.79

6

Mount, Footpeg, Passenger, Silver, RH

1014127-385

$182.54

6

Mount, Footpeg, Passenger, Silver, LH

1014126-385

$182.54

6

Mount, Footpeg, Passenger, Silver, RH

1014127-385

$182.54

6

Mount, Footpeg, Passenger, Silver, LH

1014126-385

$182.54

7

Bracket, Exhaust, Upper

5246787

$23.02

8

Ring, Retaining

7710545

$1.98

8

Ring, Retaining

7710545

$1.98

8

Ring, Retaining

7710545

$1.98

8

Ring, Retaining

7710545

$1.98

9

Pin, Pivot

7661168

$7.94

9

Pin, Pivot

7661168

$7.94

10

WASHER-FOOTPEG,PIVOT

7556274

Unavailable

10

WASHER-FOOTPEG,PIVOT

7556274

Unavailable

11

Pad, Passenger Floorboard

5412450

$36.83

11

Pad, Passenger Floorboard

5412450

$36.83

12

Floorboard, Passenger, Bur

5134049-425

$214.99

12

Floorboard, Passenger, Bur

5134049-425

$214.99

13

Pin, Pivot

7661172

$10.32

13

Pin, Pivot

7661172

$10.32

14

SPRING, COMPRESSION

7042255

Unavailable

15

Ball, Floorboard, Detent

5133944

Unavailable

16

Plate, Floorboard, Detent

5247353

$54.99

16

Plate, Floorboard, Detent

5247353

$54.99

17

Support, Board, Passenger, Silver, LH

1014774-385

$216.17

17

Support, Board, Passenger, Silver, RH

1014775-385

Unavailable

17

Support, Board, Passenger, Silver, LH

1014774-385

$216.17

17

Support, Board, Passenger, Silver, RH

1014775-385

Unavailable
