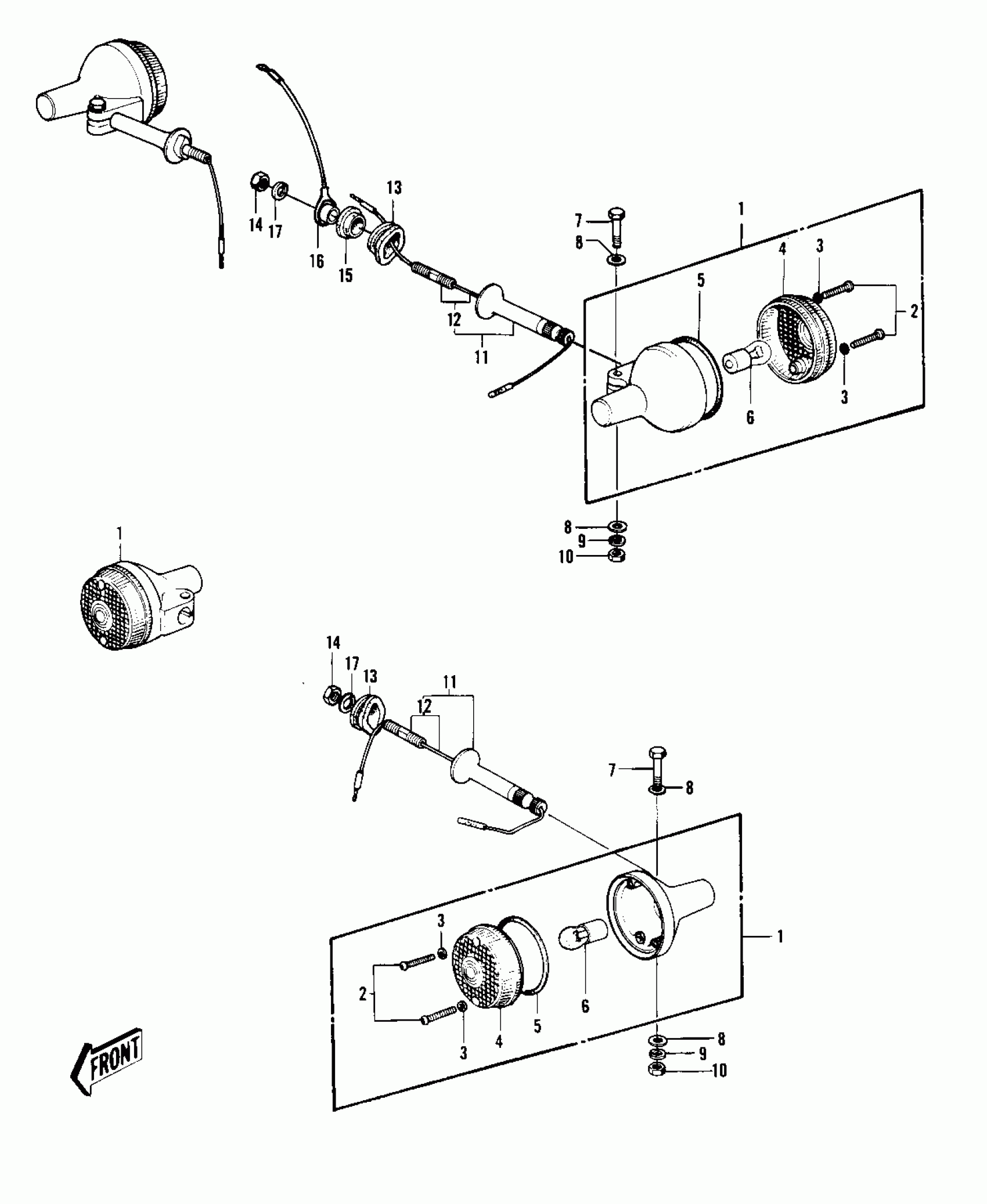

Kawasaki KH500-A8 TURN SIGNALS ('73-'75 D/E/F & '76 A8) Diagram

Description

Price

LAMP ASSY-TURN SIGNAL

23040-037

$65.93

SCREW-PAN HEAD,4X20

220E0420A

$2.25

WASHER,PLAIN,4MM

23058-002

$1.77

LENS-SIGNAL LAMP,"045-6588"

23048-1001

$8.05

GASKET,SIGNAL LAMP

23050-003

$4.39

BULB,12V 32CP(23W)

92069-055

$3.95

BOLT-UPSET

112G0630

Unavailable

WASHER-PLAIN,6MM

411D0600

$1.49

WASHER SPRING 6MM

461F0600

Unavailable

NUT,6MM

311N0600

$0.81

BRACKET-TURN SIG LAMP

23078-001

Unavailable

BOLT SET-SIG LAMP BKT

23073-001

Unavailable

DAMPER,LAMP

92075-128

$4.42

NUT-HEX-FINE,10MM

315B1000

Unavailable

DAMPER RUBBER,SIG LM

92075-158

$4.15

COLLAR

23076-003

Unavailable

WASHER SPRING 10MM

461F1000

Unavailable
