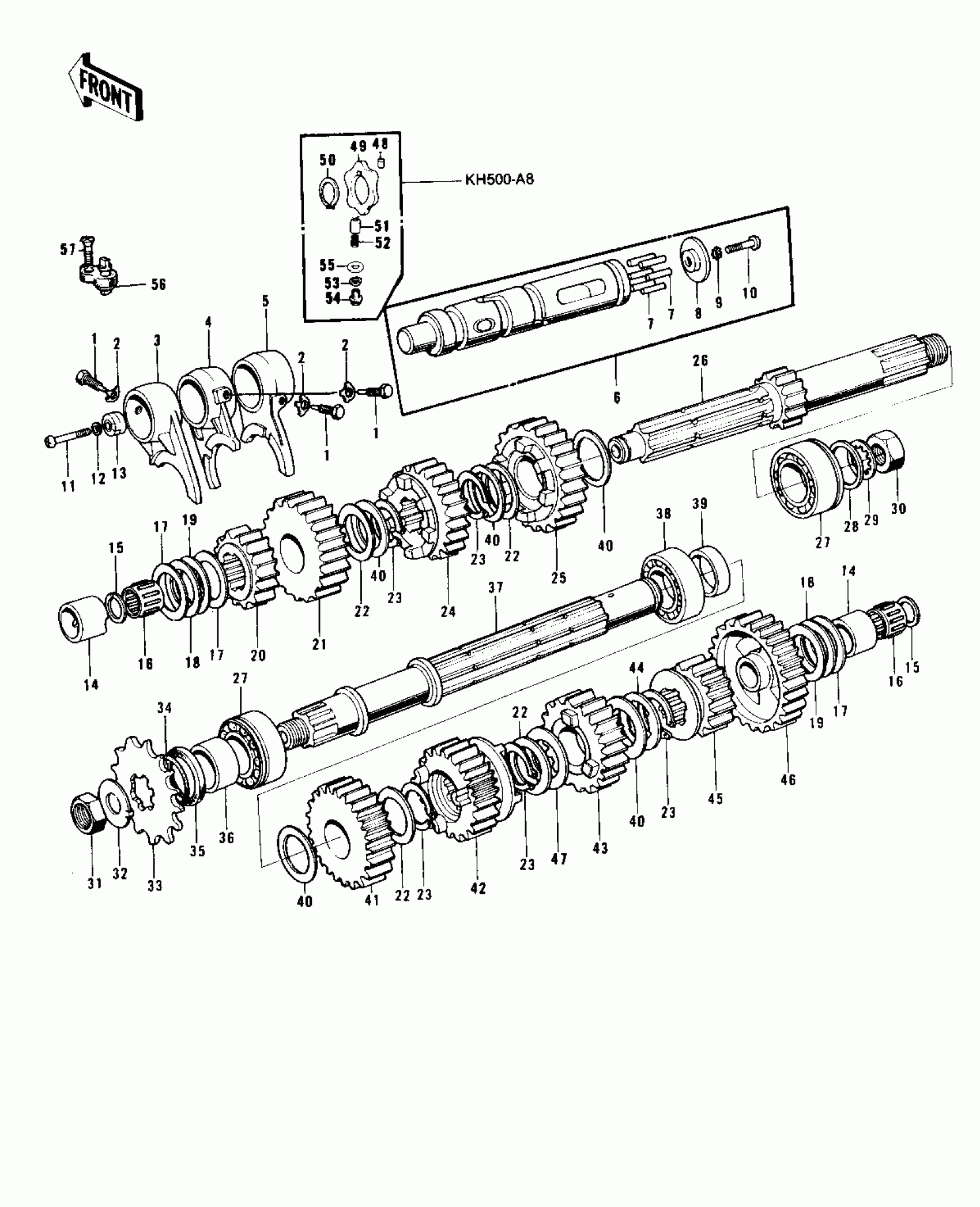

Kawasaki KH500-A8 TRANSMISSION/CHANGE DRUM ('73-'77 D/E/F Diagram
#
1
PIN SELECT FORK GUIDE
92043-016
Unavailable
2
WASHER LOCK 10MM
92031-001
$11.45
3
FORK,SELECTOR,2ND&3RD
13140-064
Unavailable
4
FORK SELECTOR TOP
13140-013
Unavailable
5
FORK-SELECTOR,LOW
13140-014
Unavailable
5
FORK-SELECTOR,LOW
13140-014
Unavailable
6
DRUM ASSY-GEAR CHANGE
13239-007
Unavailable
6
DRUM ASSY,CHANGE
13239-023
Unavailable
7
PIN,DOWEL,4X15.8
92042-014
$0.43
8
PLATE CHANGE DRUM PIN
13142-004
Unavailable
9
WASHER LOCK 6MM
464H0600
Unavailable
10
SCREW-PAN-CROS,6X14
220B0614
$1.48
11
SCREW PAN HEAD 6X25
220B0625
$2.60
12
WASHER SPRING 6MM
461F0600
$0.69
13
ROTOR NEUTRAL SWITCH
13147-001
Unavailable
13
ROTOR TRANSMISSION
13147-005
Unavailable
14
BUSH
92028-073
Unavailable
15
RING-SNAP,20MM
92033-015
$4.26
16
BEARING NEEDLE
92046-010
$37.55
17
WASHER,20.5X30X1,STEEL
92022-112
$8.86
18
WASHER,20.5X30X0.5,STEEL
92022-144
$7.62
18
WASHER,20.5X30X1.4
92022-223
$12.72
19
WASHER THRUST
92022-113
Unavailable
20
2ND GEAR DRIVE SHAFT
13130-017
Unavailable
21
4TH GEAR DRIVE SHAFT
13134-003
Unavailable
22
WASHER 25MM
92022-076
Unavailable
22
WASHER,25.3X30X1
92022-161
$10.65
23
RING-SNAP,24MM
92033-026
$8.79
24
3RD GEAR DRIVE SHAFT
13132-014
Unavailable
25
TOP GEAR-DRIVE SHAFT
13136-041
Unavailable
26
SHAFT DRIVE
13127-019
Unavailable
27
BEARING BALL 6205NX3
92045-010
$24.30
28
WASHER THRUST
92022-114
Unavailable
29
WASHER LOCK 20MM
463G2000
Unavailable
30
NUT,20MM
92016-028
$9.91
31
NUT,18MM
92015-019
$7.22
32
WASHER,LOCK,18MM
92024-067
Unavailable
33
ENGINE SPROCKET 15T
13144-030
Unavailable
33
ENGINE SPROCKET 14T
13144-035
Unavailable
33
ENG SPROCKET 16T (OPT
13144-036
Unavailable
34
RING-O
92055-035
$5.00
35
SEAL-OIL,SC325210
92050-024
$8.17
36
SPACER-ENG SPROCKET
92026-1024
Unavailable
37
SHAFT OUTPUT
13128-020
Unavailable
38
BEARING-BALL,#6005C3
601B6005
$16.92
39
COLLAR
92027-052
Unavailable
40
WASHER,25.3X32X0.5
92022-225
$5.52
41
2ND GEAR OUTPUT SHAFT
13131-011
Unavailable
42
4TH GEAR OUTPUT SHAFT
13135-007
Unavailable
43
3RD GEAR OUTPUT SHAFT
13133-015
Unavailable
44
WASHER,TOOTHED,25.5X32X1
92024-033
$8.19
45
TOP GEAR OUTPUT SHAFT
13137-010
Unavailable
46
LOW GEAR OUTPUT SHAFT
13129-024
Unavailable
47
WASHER,LOCK
92024-072
$2.29
47
WASHER,25.3X32X0.5
92022-225
$5.52
48
ROLLER,4X6
610A0406
$4.31
49
DISC,CHANG DRUM OPRTN
13145-006
Unavailable
50
CIRCLIP-TYPE-C,30MM
480J3000
$6.22
51
PIN
92043-076
$11.71
52
SPRING
92081-112
$6.16
53
GASKET
92065-090
Unavailable
54
BOLT,FLANGED,16X16.5
92001-131
$19.90
55
WASHER,THRUST,16.5X21X0.8
92022-053
$3.98
56
SWITCH NEUTRAL
13151-012
Unavailable
57
SCREW-CSK-CROS,6X16
221B0616
$0.59
