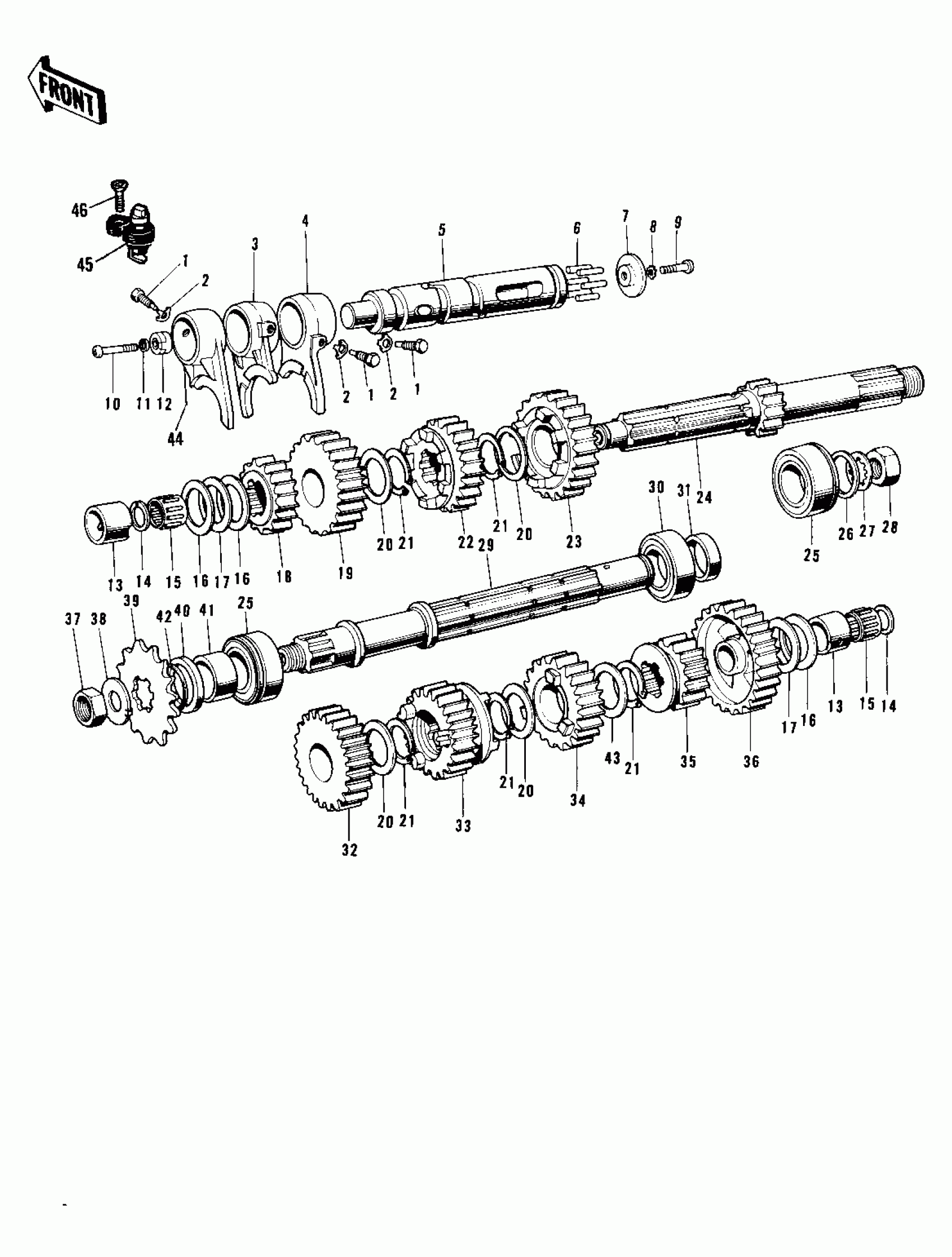

Kawasaki KH500-A8 TRANSMISSION/CHANGE DRUM ('69-'72 H1/A/B Diagram
#
1
PIN SELECT FORK GUIDE
92043-016
Unavailable
2
WASHER LOCK 10MM
92031-001
$11.45
3
FORK SELECTOR TOP
13140-013
Unavailable
4
FORK-SELECTOR,LOW
13140-014
Unavailable
5
DRUM ASSY-GEAR CHANGE
13239-007
Unavailable
6
PIN,DOWEL,4X15.8
92042-014
$0.43
7
PLATE CHANGE DRUM PIN
13142-004
Unavailable
8
WASHER LOCK 6MM
464H0600
Unavailable
9
SCREW PAN HEAD 6X12
220B0612
Unavailable
10
SCREW PAN HEAD 6X25
220B0625
$2.60
11
WASHER SPRING 6MM
461F0600
$0.69
12
ROTOR NEUTRAL SWITCH
13147-001
Unavailable
13
BUSH
92028-073
Unavailable
14
RING-SNAP,20MM
92033-015
$4.26
15
BEARING NEEDLE
92046-010
$37.55
16
WASHER,20.5X30X1,STEEL
92022-112
$8.86
17
WASHER THRUST
92022-113
Unavailable
18
2ND GEAR DRIVE SHAFT
13130-017
Unavailable
19
4TH GEAR DRIVE SHAFT
13134-003
Unavailable
20
WASHER 25MM
92022-076
Unavailable
21
RING-SNAP,24MM
92033-026
$8.79
22
3RD GEAR DRIVE SHAFT
13132-014
Unavailable
23
TOP GEAR-DRIVE SHAFT
13136-041
Unavailable
24
SHAFT DRIVE
13127-019
Unavailable
25
BEARING BALL 6205NX3
92045-010
$24.30
26
WASHER THRUST
92022-114
Unavailable
27
WASHER LOCK 20MM
463G2000
Unavailable
28
NUT,20MM
92016-043
Unavailable
29
SHAFT OUTPUT
13128-020
Unavailable
30
BEARING-BALL,#6005C3
601B6005
$16.92
31
COLLAR
92027-052
Unavailable
32
2ND GEAR OUTPUT SHAFT
13131-011
Unavailable
33
4TH GEAR OUTPUT SHAFT
13135-007
Unavailable
34
3RD GEAR OUTPUT SHAFT
13133-015
Unavailable
35
TOP GEAR OUTPUT SHAFT
13137-010
Unavailable
36
LOW GEAR OUTPUT SHAFT
13129-024
Unavailable
37
NUT,18MM
92015-019
$7.22
38
WASHER,LOCK,18MM
92024-067
Unavailable
39
ENGINE SPROCKET 15T
13144-030
Unavailable
39
ENG SPROCKET 16T (OPT
13144-036
Unavailable
39
ENGINE SPROCKET 14T
13144-035
Unavailable
40
SEAL-OIL,SC325210
92050-024
$8.17
41
SPACER-ENG SPROCKET
92026-1024
Unavailable
42
RING-O
92055-035
$5.00
43
WASHER 25MM
92022-076
Unavailable
43
WASHER,TOOTHED,25.5X32X1
92024-033
$8.19
44
FORK,SELECTOR,2ND&3RD
13140-064
Unavailable
45
SWITCH NEUTRAL
13151-012
Unavailable
46
SCREW-CSK-CROS,6X16
221B0616
$0.59
