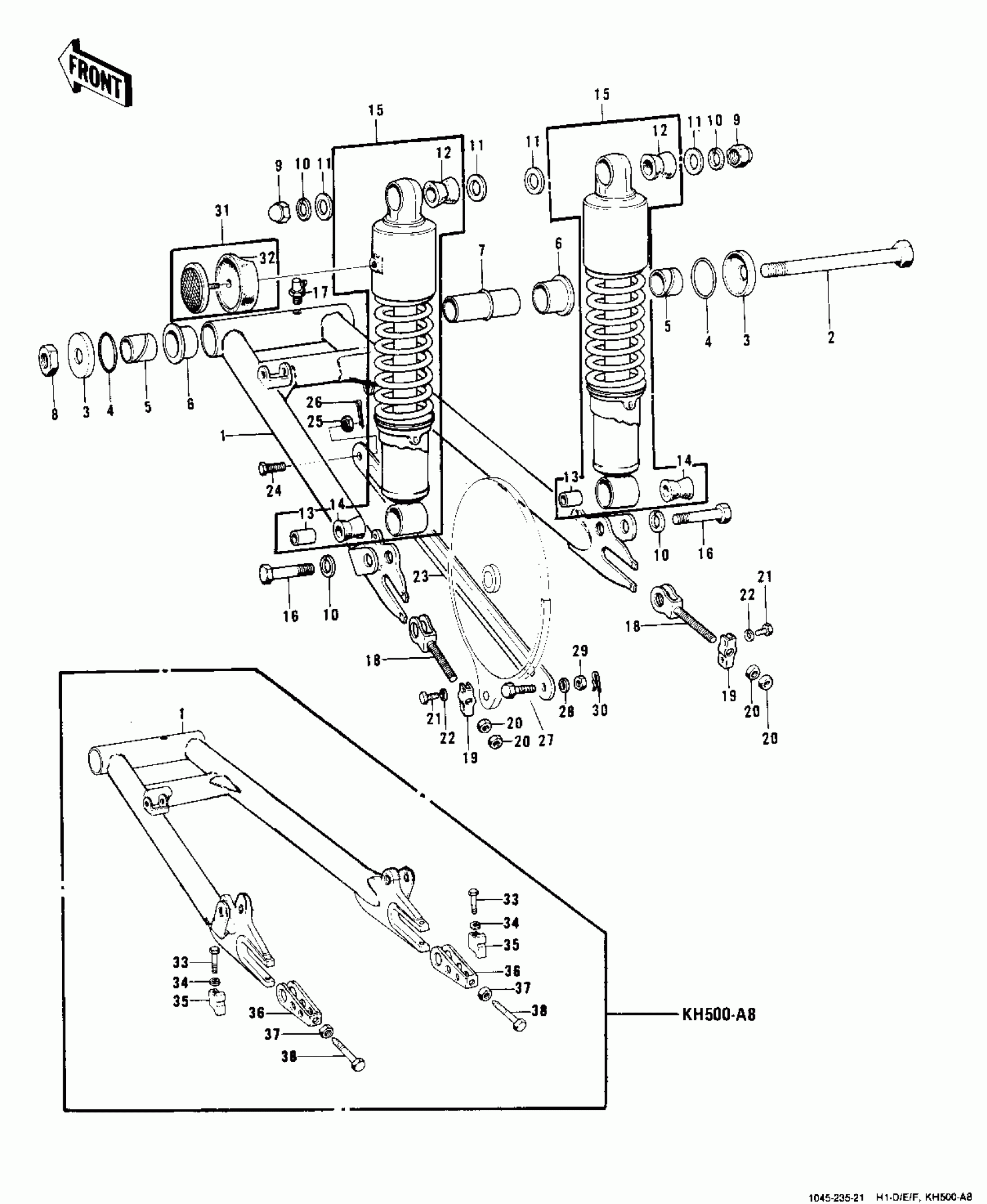

Kawasaki KH500-A8 SWING ARM/SHOCK ABSORBERS ('73-'75 D/E/F Diagram
#
1
ARM,SWING
33001-050
$196.29
1
SWINGING ARM
33001-065
Unavailable
1
1ARM,SWING
33001-084
Unavailable
2
SHAFT-SWING ARM PIVOT
33032-038
Unavailable
3
CAP,SWING ARM
33035-007
Unavailable
4
"0" RING,30MM
671B2530
$5.05
5
SLEEVE SWING ARM
33034-009
Unavailable
6
BUSHING-SWING ARM
33033-009
Unavailable
7
SLEEVE SWING ARM LONG
33034-008
Unavailable
8
NUT-SELF LOCKING
92019-012
$25.70
9
NUT,CAP,10MM
92020-003
$6.52
10
WASHER SPRING 10MM
461F1000
$0.67
11
WASHER,10.5X26X2.3
92022-246
$3.39
12
BUSH SHCK ABS RUBBER
45017-001
$12.15
12
DAMPER,SHOCKABSORBER
45017-015
Unavailable
13
COLLAR,SHOCKABSORBER
45016-003
$15.92
13
COLLAR,SHOCKABSORBER
45016-008
$9.91
14
BUSHING,SHCK ABS RUB
45017-018
Unavailable
14
DAMPER,SHOCKABSORBER
45017-012
$14.90
15
SHOCK ABSBR RR
45014-077
$121.87
15
SHOCK ABSBR RR
45014-095
$117.68
16
BOLT HEX HEAD 10X35
113N1035
$9.14
17
GREASE NIPPLE
92005-002
Unavailable
18
ADJUSTER-CHAIN
33040-050
$22.21
18
ADJUSTER,CHAIN
33040-059
$24.88
19
PLATE,CHAIN ADJUSTER
33041-002
Unavailable
19
PLATE,CHAIN ADJUSTER
33041-004
$13.40
20
NUT 8MM
312B0800
$0.58
21
BOLT-UPSET,6X16
112G0616
$1.10
22
WASHER SPRING 6MM
461F0600
$0.69
23
TORQUE LINK-REAR BRK
43007-027
$27.18
24
BOLT,10X29
92003-096
$10.72
25
NUT-HEX-FINE,10MM
314B1000
$0.67
26
PIN COTTER 2.0X25
550D2025
$2.81
27
BOLT-HEX HEAD,10X40
92003-097
Unavailable
28
WASHER SPRING 10MM
461F1000
$0.67
29
NUT-HEX-FINE,10MM
315B1000
$0.58
30
PIN-SNAP,8MM
554A0800
$1.26
31
REFLECTOR,REFLEX,REAR
28001-030
Unavailable
32
DAMPER RUBBER,REFLEX
28016-003
$9.18
33
BOLT,FLANGED,8X35
92001-1577
Unavailable
34
WASHER SPRING 8MM
461F0800
$0.40
35
STOPPER,CHAIN ADJUST
33044-002
Unavailable
36
ADJUSTER,CHAIN
33040-056
Unavailable
37
NUT 8MM
314B0800
Unavailable
38
BOLT,8X50
92001-1399
$9.48
