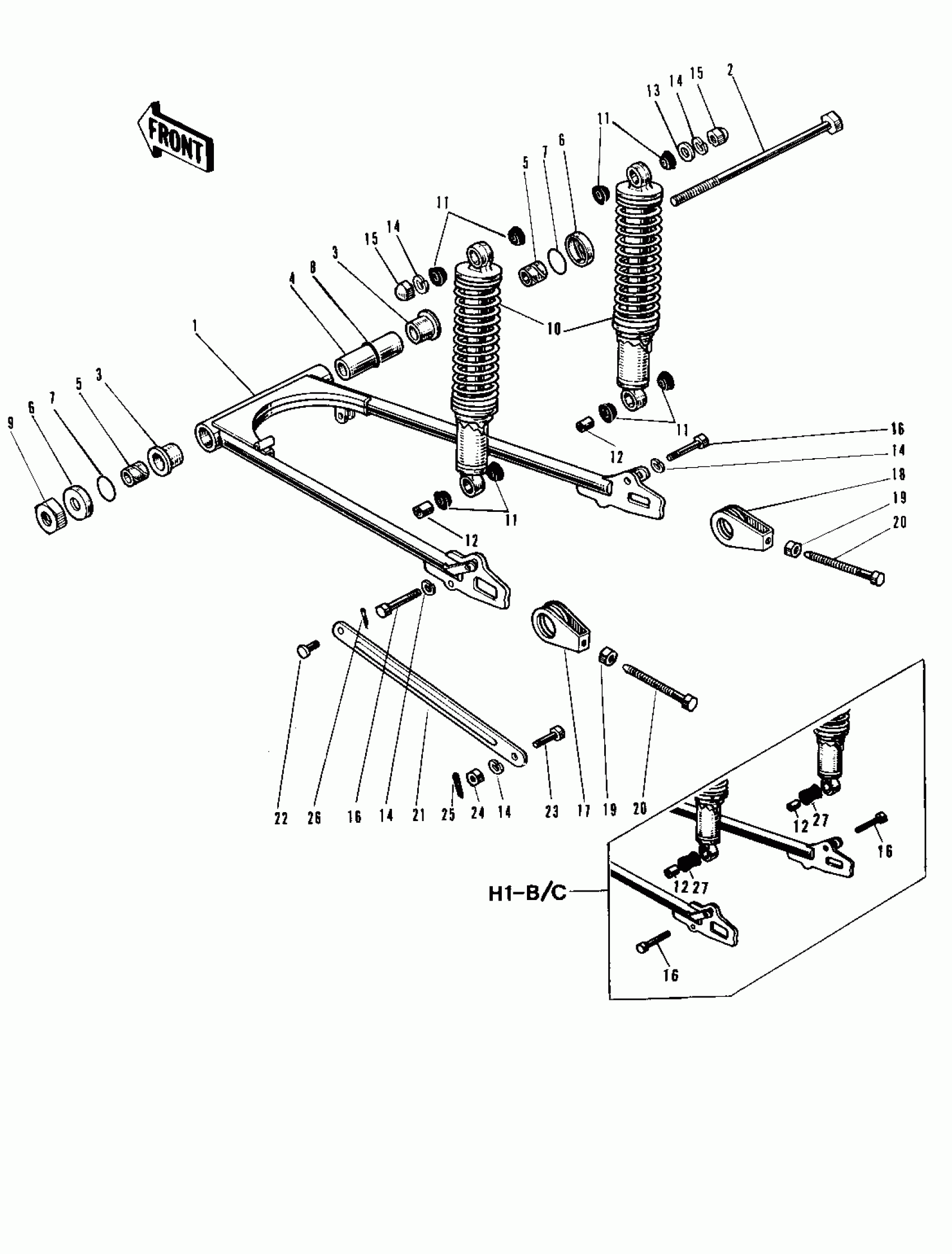

Kawasaki KH500-A8 SWING ARM/SHOCK ABSORBERS ('69-'72 H1/A/ Diagram
#
Description
Price
1
ARM SWING
33001-016
$103.30
1
ARM-SWINGING
33001-040
$155.43
2
SHAFT SWING ARM PIVOT
33032-020
$21.36
2
SHAFT-SWING ARM PIVOT
33032-038
Unavailable
2
SHAFT-SWING ARM PIVOT
33032-038
Unavailable
3
BUSHING-SWING ARM
33033-009
Unavailable
4
SLEEVE SWING ARM LONG
33034-008
Unavailable
5
SLEEVE SWING ARM
33034-009
Unavailable
6
CAP,SWING ARM
33035-007
Unavailable
6
CAP,SWING ARM
33035-007
Unavailable
7
"0" RING,30MM
671B2530
$5.05
8
O RING,21MM
670B2021
$4.69
9
NUT-SELF LOCKING
92019-012
$25.70
9
NUT-SELF LOCKING
92019-012
$25.70
10
SHOCK ABSBR RR
45014-056
Unavailable
11
BUSH SHCK ABS RUBBER
45017-001
$12.15
11
BUSH SHCK ABS RUBBER
45017-001
$12.15
12
COLLAR,SHOCKABSORBER
45016-003
$15.92
12
BUSH-SHCK.ABS.PVT.SFT
45016-005
Unavailable
13
WASHER,10.5X26X2.3
92022-044
$3.92
14
WASHER SPRING 10MM
461F1000
$0.67
14
WASHER SPRING 10MM
461F1000
$0.67
15
NUT,CAP,10MM
92020-003
$6.52
16
BOLT HEX HEAD 10X35
113N1035
$9.14
16
BOLT-HEX HEAD,10X35
92003-083
Unavailable
17
ADJUSTER CHAIN L.H
33040-028
Unavailable
18
ADJUSTER CHAIN R.H
33040-029
Unavailable
19
NUT 8MM
312B0800
$0.58
20
BOLT,8X50
92001-1399
$9.48
21
TORQUE LINK REAR BRK
43007-016
Unavailable
22
PIN,SPRING,10X12
43009-001
$7.40
23
BOLT,10X35
92003-034
$13.21
24
NUT CASTLE 10MM
321B1000
Unavailable
25
PIN COTTER 2.0X15
550D2015
$1.04
25
PIN-SNAP,8MM
554A0800
$1.26
26
PIN-COTTER,2.5X20
550D2520
$1.36
27
BUSHING,SHCK ABS RUB
45017-018
Unavailable
