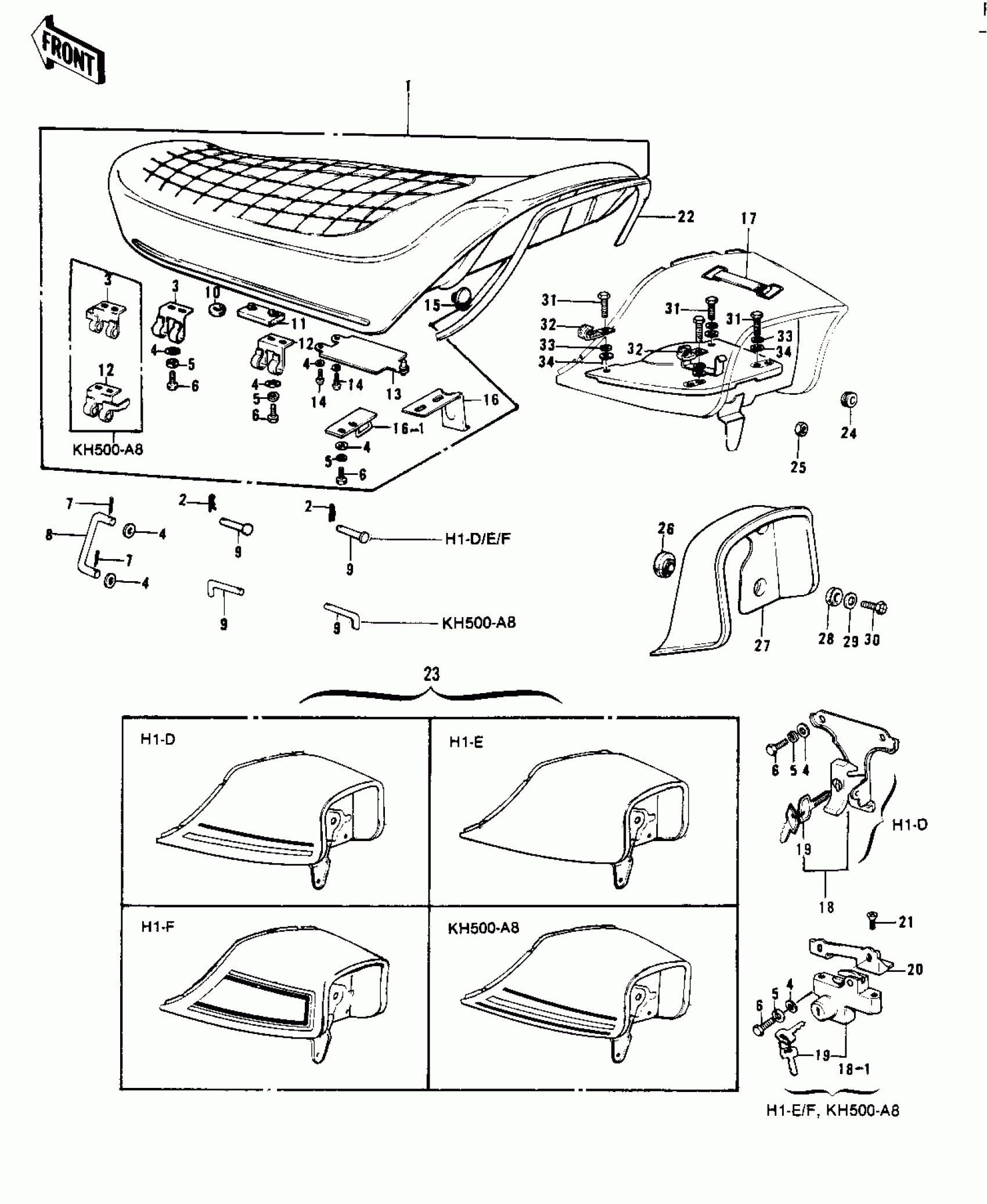

Kawasaki KH500-A8 SEAT/SEAT COVER ('73-'75 D/E/F & '76 A8) Diagram
#
1
SEAT-ASSY,DUAL
53001-079
Unavailable
1
SEAT-ASSY,DUAL
53001-097
$990.24
1
SEAT-ASSY,DUAL
53001-115
Unavailable
2
COTTER PIN
92041-003
$5.72
3
HINGE-SEAT
53009-021
Unavailable
3
HINGE,FRONT
53009-033
$8.28
4
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
5
WASHER SPRING 6MM
461F0600
$0.69
6
BOLT-UPSET 6X14
112B0614
Unavailable
7
PIN-COTTER,1.6X15
550D1615
$2.51
7
COTTER PIN
92041-003
$5.72
7
PIN,COTER
92041-006
Unavailable
8
STAND,SEAT
53054-002
$7.53
9
PIN,6X48
53011-002
$5.96
9
PIN,SEAT PIVOT
92043-1064
Unavailable
9
PIN,SEAT PIVOT
92043-1064
Unavailable
10
GROMMET
92071-056
$4.26
11
DAMPER RUBBER,SEAT
92075-139
$11.46
12
HINGE
53009-022
$7.44
12
HINGE,REAR
53009-034
$5.64
13
CASE,MANUAL
32099-011
$16.66
14
SCREW-PAN-CROS,6X14
220B0614
$1.48
15
DAMPER
92075-099
$5.52
16
HOOK
53008-018
$4.03
16-1
HOOK,SEAT
53008-025
Unavailable
17
BAND
92072-012
$7.34
18
HOOK ASSY
53045-004
Unavailable
18-1
LOCK ASSY,SEAT
53045-013
Unavailable
19
KEY SET,#265
27018-016-65
Unavailable
19
KEY SET,#279
27018-016-79
Unavailable
19
KEY SET,#911
27008-055-11
Unavailable
19
KEY SET,#925
27008-055-25
Unavailable
20
BRACKET,HOOK
53010-005
Unavailable
21
SCREW-CSK-CROS,6X12
221B0612
$2.06
22
MOLE
53044-004
Unavailable
23
BACK REST,C.LIME
53043-006-77
$112.54
23
BACK REST,C.RED
53043-006-1X
$112.54
23
BACK REST,C.LIME
53043-006-1Y
$237.75
23
BACK REST,C.BLUE
53043-006-2W
$234.04
23
BACK REST, C.GOLD
53043-006-2X
$111.32
23
BACKREST,DEEP.BURGUN
53043-006-3T
$116.88
23
BACK REST,COPPER
53043-006-3U
$161.57
24
GROMMET,WIRING HARNES
92071-070
Unavailable
25
NUT 6MM
311B0600
$0.93
26
DAMPER RUBBER
92075-169
Unavailable
27
COVER,BACK REST
53057-002
$45.90
28
DAMPER RUBBER
92075-168
Unavailable
29
WASHER-PLAIN,7MM
92022-240
Unavailable
30
SCREW-PAN HEAD,6X30
92011-030
Unavailable
31
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
32
CLAMP
92037-113
$6.15
33
WASHER SPRING 8MM
461F0800
$0.40
34
WASHER PLAIN 8MM
411B0800
$0.93
