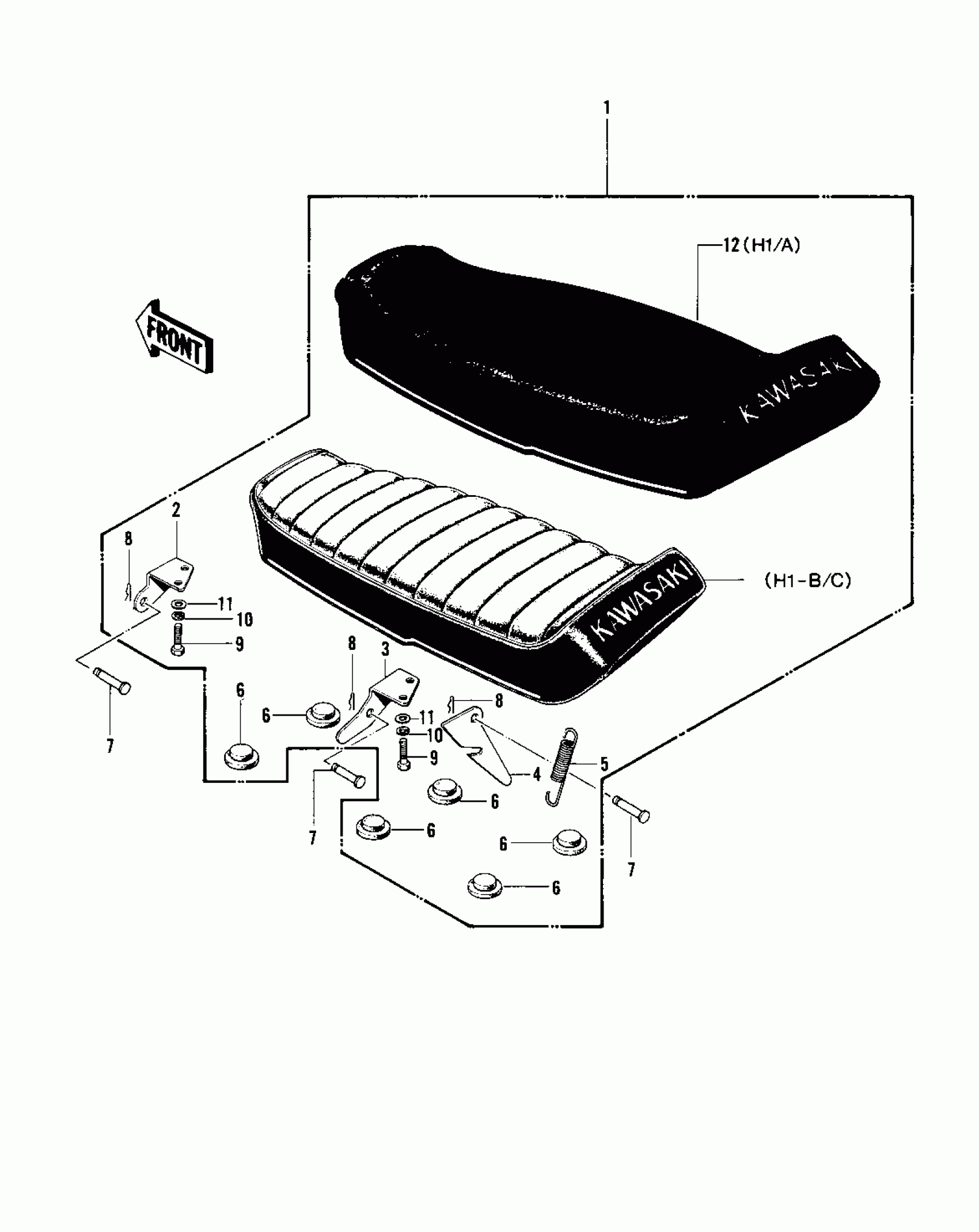

Kawasaki KH500-A8 SEAT ('69-'72 H1/A/B/C) Diagram

#

Description

Price

1

SEAT-DUAL

53001-060

Unavailable

1

SEAT ASSY-DUAL

53001-066

Unavailable

1

SEAT ASSY-DUAL

53001-072

Unavailable

2

HINGE-FRONT,BLACK

53009-012-10

Unavailable

3

HINGE-REAR,BLACK

53009-013-10

Unavailable

4

HOOK

53008-006

Unavailable

5

SPRING

53012-002

Unavailable

6

DAMPER,DUAL SEAT

92075-023

$3.74

7

PIN DUAL SEAT PIVOT

53011-001

$4.92

8

PIN COTTER 2.0X15

550D2015

Unavailable

8

PIN-SNAP,8MM

554A0800

Unavailable

9

BOLT-UPSET 6X14

112B0614

Unavailable

10

WASHER SPRING 6MM

461F0600

Unavailable

11

WASHER PLAIN 6MM

411B0600

Unavailable

12

COVER-DUAL SEAT

53003-002

Unavailable
