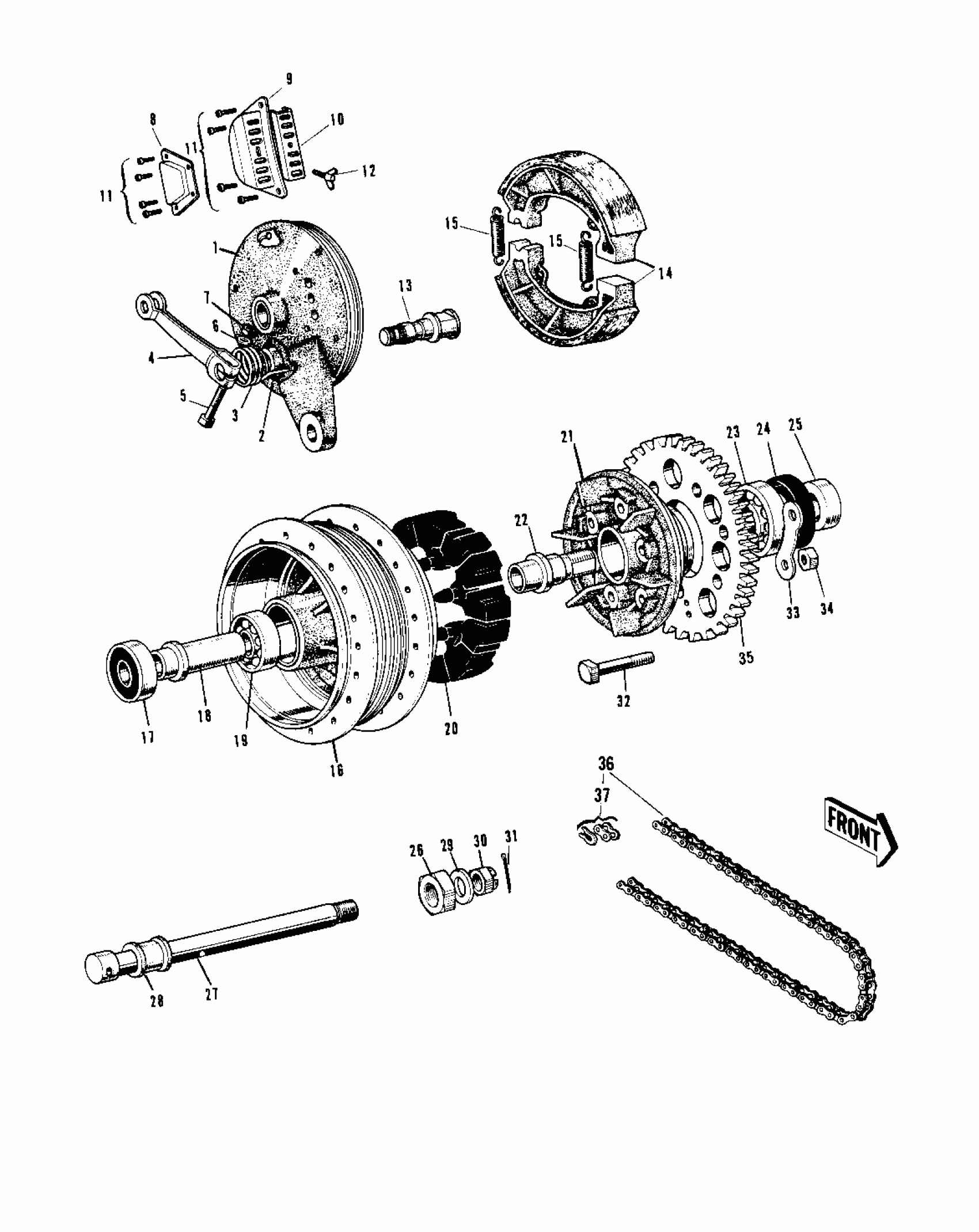

Kawasaki KH500-A8 REAR HUB/BRAKE/CHAIN ('69-'72 H1/A/B/C) Diagram
#
1
PANEL-ASY,RR BRK,F.B.
42006-013-21
$263.55
1
PANEL-ASY,RR BRK,F.B.
42006-013-21
$263.55
2
SEAL,BRAKE CAM
41051-001
$4.26
3
SPRING BRAKE CAM LEV
41056-003
Unavailable
4
LEVER,REAR BRAKE CAM
42029-037
Unavailable
4
LEVER,REAR BRAKE CAM
42029-037
Unavailable
5
BOLT-UPSET,6X40
112G0640
$2.22
6
WASHER PLAIN 6MM
411B0600
$2.84
7
NUT 6MM
311B0600
$0.93
8
OUTLET-VENTILATOR
42023-002
$25.69
9
INNLET-VENTILATOR
42022-002
$37.50
10
SHUTTER AIR
42024-001
Unavailable
11
SCREW,4X6
220E0406A
$0.99
12
BOLT 3X10 WING
92001-062
Unavailable
13
CAM SHAFT REAR BRAKE
42026-009
Unavailable
14
SHOE,BRAKE
42019-007
$152.09
15
SPRING BRAKE SHOE
42020-003
Unavailable
16
DRUM ASSY,RR BK,BUFF
42005-015-80
$302.06
17
BEARING BALL #6205Z
601B6205Z
$21.69
18
SPACER RR HUB BEARING
42010-014
Unavailable
19
BEARING BALL #6303Z
601B6303Z
$24.50
20
DAMPER REAR HUB SHOCK
42014-014
Unavailable
21
COUPLING ASSY RR HUB
42008-005
$107.32
22
SLEEVE RR HUB COUPLNG
42036-011
Unavailable
23
BEARING-BALL,#6305C3
601B6305
$25.78
24
SEAL-OIL,AJN40627
92050-027
$20.96
25
COLLAR SLEEVE
42037-017
$7.37
26
NUT SLEEVE
42045-006
Unavailable
27
AXLE-REAR
42031-038
Unavailable
27
AXLE-REAR
42031-038
Unavailable
28
COLLAR REAR AXLE
42032-017
Unavailable
29
WASHER L.H SLEEVE
42046-010
$7.21
30
NUT,CASTLE,16MM
42045-014
$9.91
30
NUT,CASTLE,16MM
42045-014
Unavailable
31
PIN COTTER 4.0X30
550D4030
$2.33
32
BOLT-REAR SPROCKET
92003-087
Unavailable
33
WASHER LOCK
92088-007
$13.51
34
NUT,10MM
42045-005
$7.98
35
REAR SPROCKET 45T
42041-046
$111.85
35
RR SPROCKET 43T (OPT)
42041-047
Unavailable
35
RR SPROCKET 47T (OPT)
42041-077
Unavailable
36
DR CHAIN 530X102L
92057-010
$95.41
37
CHAIN JOINT 530
92058-015
$13.70
