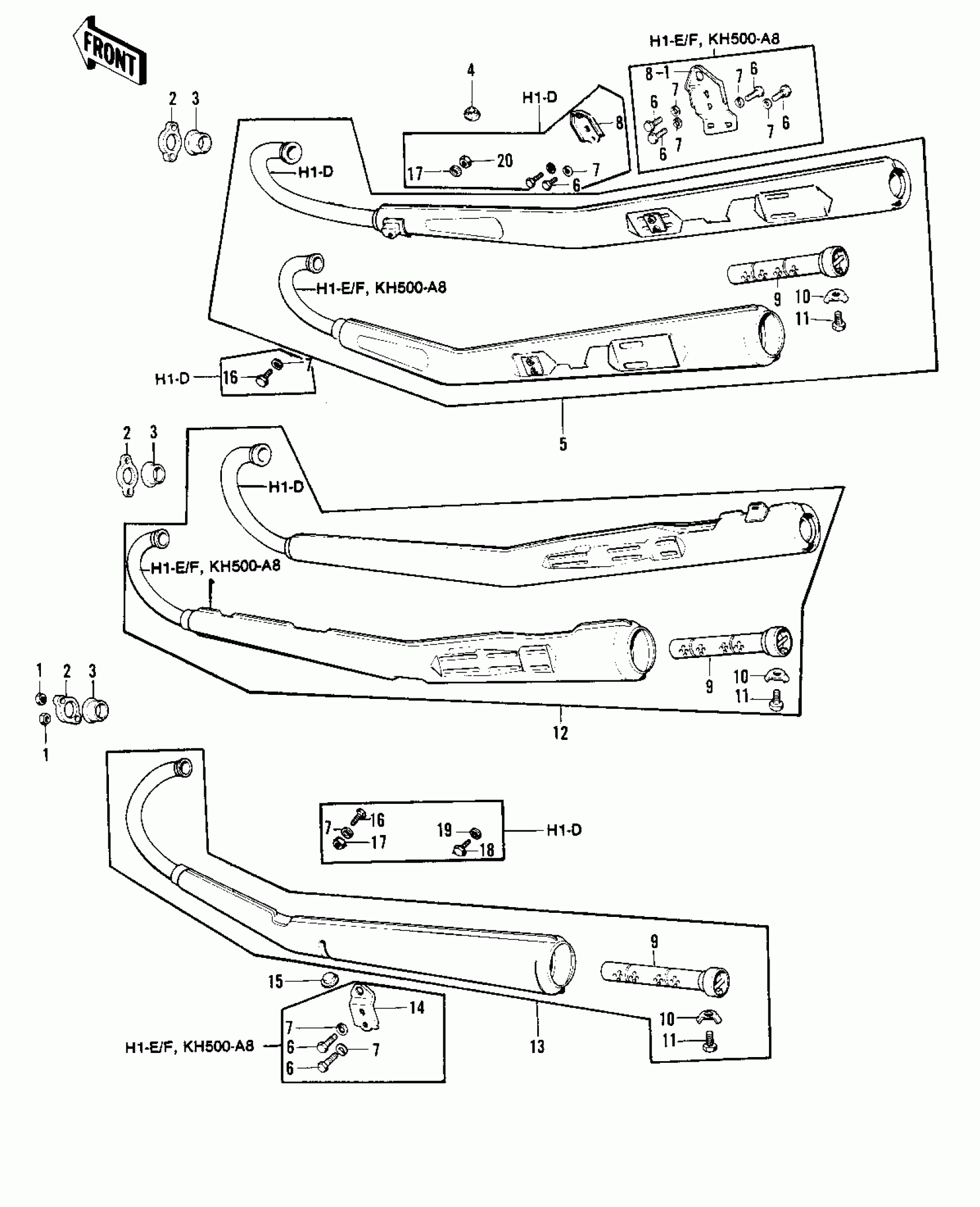

Kawasaki KH500-A8 MUFFLERS ('73-'75 D/E/F & '76 A8) Diagram
#
Description
Price
1
NUT 6MM
311B0600
$0.93
1
NUT,8MM
311B0800
$0.67
1
NUT,8MM
311B0800
$0.67
2
HOLDER,EXHAUST
18069-044
$33.08
2
HOLDER,EXHAUST
18069-049
$42.68
3
INSERT,EXHAUST HOLDER
18070-007
Unavailable
4
DAMPER RUBBER
92075-006
$2.16
5
MUFFLER ASSY,R.H
18001-086
$483.40
5
MUFFLER ASSY,R.H
18001-164
$223.13
5
MUFFLER ASSY,R.H
18001-164
$223.13
5
MUFFLER ASSY,R.H
18001-179
$214.75
6
BOLT-SMALL-UPSET,8X14
115B0814
Unavailable
6
BOLT-SMALL-UPSET,8X14
115B0814
Unavailable
7
WASHER SPRING 8MM
461F0800
$0.40
8
BRACKET,MUFFLER
18061-039
$10.05
8-1
BRACKET,MUFFLER,R.H
18061-050
Unavailable
9
BAFFLE TUBE
18033-064
$71.41
10
WASHER LOCK 6MM
92024-016
Unavailable
11
BOLT-UPSET,6X12
112G0612
$1.45
12
MUFFLER ASSY,CENTER
18001-085
$176.93
12
MUFFLER ASSY,CENTER
18001-163
Unavailable
12
MUFFLER ASSY,CENTER
18001-163
Unavailable
12
MUFFLER ASSY,CENTER
18001-178
$533.64
13
MUFFLER ASSY,L.H
18001-084
Unavailable
13
MUFFLER ASSY L.H.
18001-162
Unavailable
13
MUFFLER ASSY L.H.
18001-162
Unavailable
13
MUFFLER ASSY,L.H
18001-177
Unavailable
14
BRACKET,MUFFLER,L.H
18061-049
Unavailable
15
DAMPER
92075-015
$5.00
16
BOLT-SMALL-UPSET 8X25
115G0825
$5.05
17
WASHER PLAIN 8MM
411B0800
$0.93
18
BOLT,HEX HEAD,10X18
113G1018
Unavailable
19
WASHER SPRING 10MM
461F1000
$0.67
20
NUT,8MM
311B0800
$0.67
