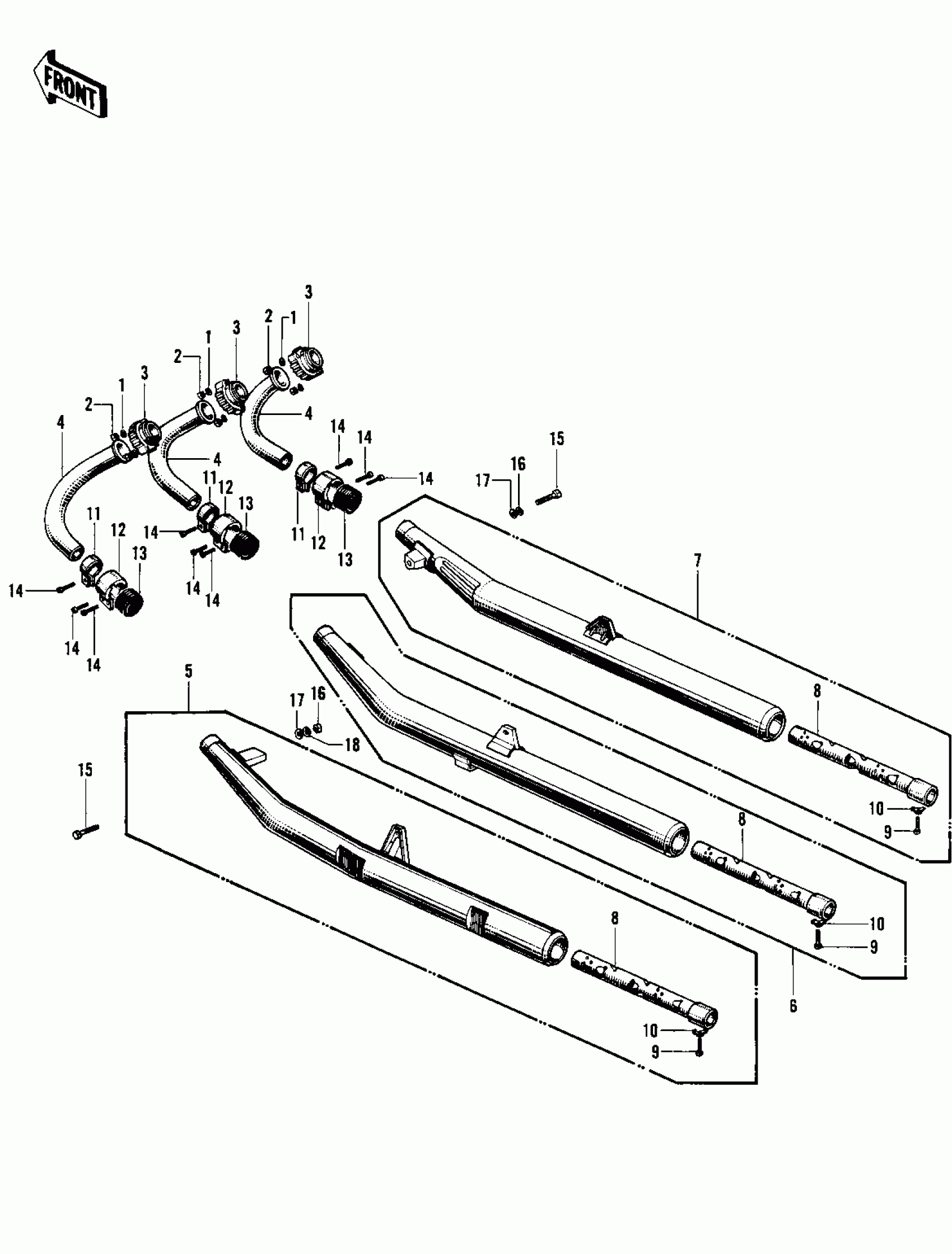

Kawasaki KH500-A8 MUFFLERS ('69-'72 H1/A/B/C) Diagram
#
Description
Price
1
WASHER SPRING 6MM
461F0600
Unavailable
2
NUT 6MM
311B0600
Unavailable
6
MUFFLER ASSY,CENTER
18001-064
Unavailable
7
MUFFLER ASSY,R.H.
18001-065
Unavailable
8
BAFFLE TUBE
18033-027
Unavailable
8
BAFFLE TUBE
18033-051
Unavailable
9
BOLT-UPSET,6X12
112G0612
Unavailable
10
WASHER LOCK 6MM
92024-016
Unavailable
11
HOLDER MUFFLER CONECT
18044-007
Unavailable
12
HOLDER MUFFLER CONECT
18044-006
Unavailable
14
SCREW PAN HEAD 6X25
220B0625
Unavailable
15
BOLT,8X20
115G0820
Unavailable
16
WASHER SPRING 8MM
461F0800
Unavailable
17
WASHER PLAIN 8MM
411B0800
Unavailable
18
NUT,8MM
311B0800
Unavailable
