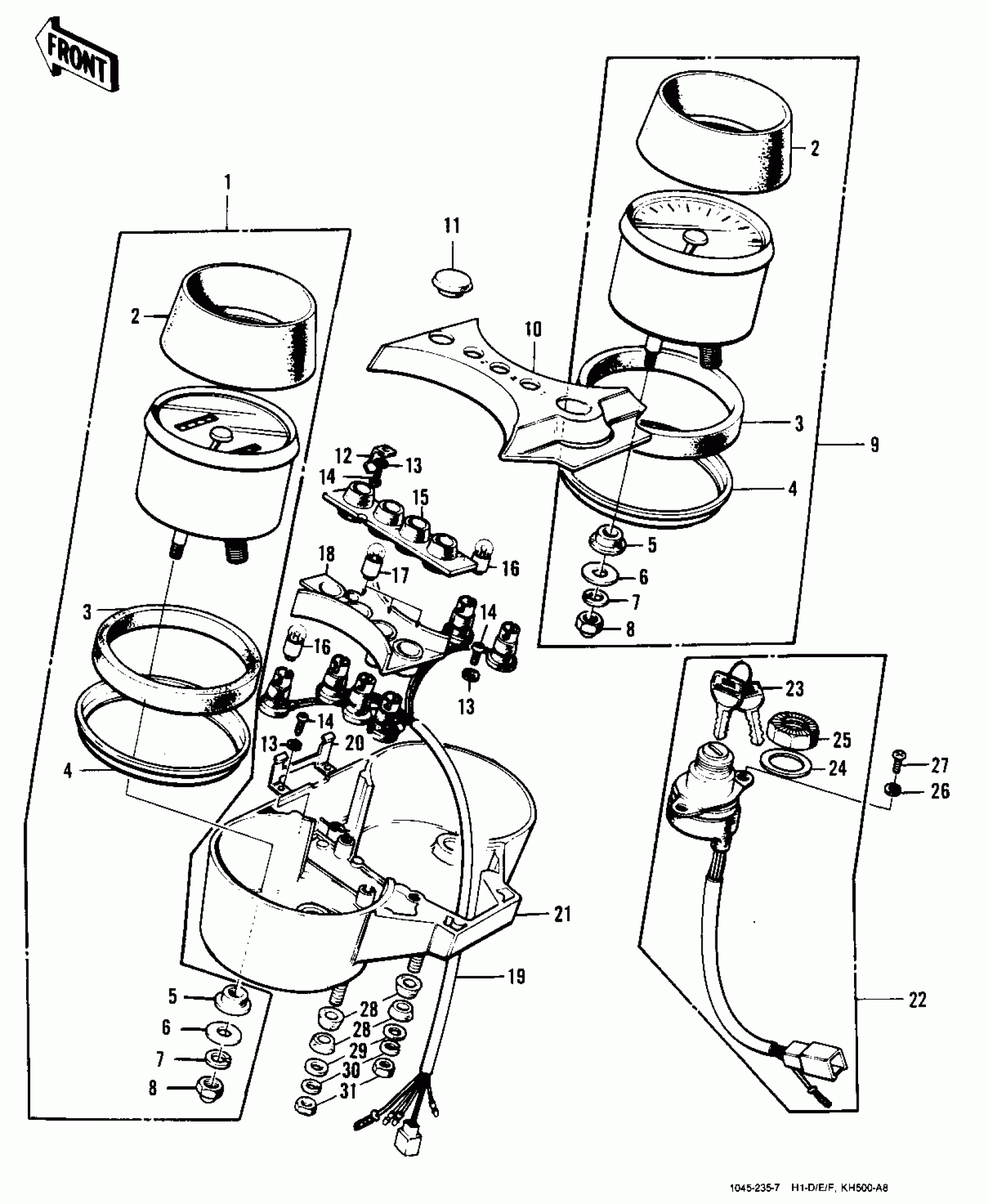

Kawasaki KH500-A8 METERS/IGNITION SWITCH ('73-'75 D/E/F & Diagram
#
1
SPEEDOMETER ASSY,MPH
25005-090
$208.93
1
SPEEDOMETER ASSY,MPH
25005-109
$316.33
1
SPEEDOMETER ASSY,MPH
25005-124
$535.93
1
SPEEDOMETER ASSY,MPH
25005-124
$535.93
1
SPEEDOMETER ASSY KPH (Canada)
25005-111
$194.38
2
COVER-METER
25012-012
$17.95
3
DAMPER RUBBER-METER
25019-015
$6.51
4
RING-METER
25026-001
$14.45
5
DAMPER,METER
25019-013
$5.72
6
WASHER-PLAIN,5MM
411B0500
$0.46
7
WASHER SPRING 5MM
461F0500
$0.69
8
NUT,5MM
92015-059
Unavailable
9
TACHOMETER ASSY
25015-026
$192.62
10
COVER-METER CASE
25023-002
Unavailable
10
COVER,METER CASE
25023-009
Unavailable
11
PLUG,RUBBER
92074-032
Unavailable
12
HOLDER-METER CASE COV
25014-004
$3.21
13
WASHER SPRING 4MM
461F0400
Unavailable
14
SCREW PAN HEAD 4X8
220B0408
$0.67
15
DAMPER RUBBER-METER
25019-014
$4.83
16
BULB 12V 3W
92069-018
$4.87
17
BULB 12V 1.5W
92069-017
$4.92
18
COVER-METER SOCKET
25023-003
$10.18
19
SOCKET-METER
25011-029
$60.97
19
SOCKET,METER.
25011-040
Unavailable
20
HOLDER-METER CASE
25014-003
$7.24
21
CASE-METER
25008-026
Unavailable
22
SWITCH ASSY,IGNITION
27005-050
Unavailable
22
SWITCH ASSY,IGNITION
27005-054
Unavailable
23
KEY SET,#190
27008-048-90
Unavailable
23
KEY SET,#195
27008-048-95
Unavailable
23
KEY SET,#911
27008-055-11
Unavailable
23
KEY SET,#925
27008-055-25
Unavailable
23
KEY-LOCK,BLANK
27008-1024
Unavailable
23
KEY-LOCK,BLANK
27008-1025
Unavailable
24
WASHER-IGNITION
27019-002
Unavailable
25
NUT-IGNITION SWITCH
27007-003
Unavailable
26
WASHER SPRING 5MM
461F0500
$0.69
27
SCREW PAN HEAD 5X8
220B0508
$0.46
28
DAMPER RUBBER
92075-080
$10.35
29
WASHER PLAIN 8MM
411B0800
$0.93
30
WASHER SPRING 8MM
461F0800
$0.40
31
NUT,8MM
311B0800
$0.67
