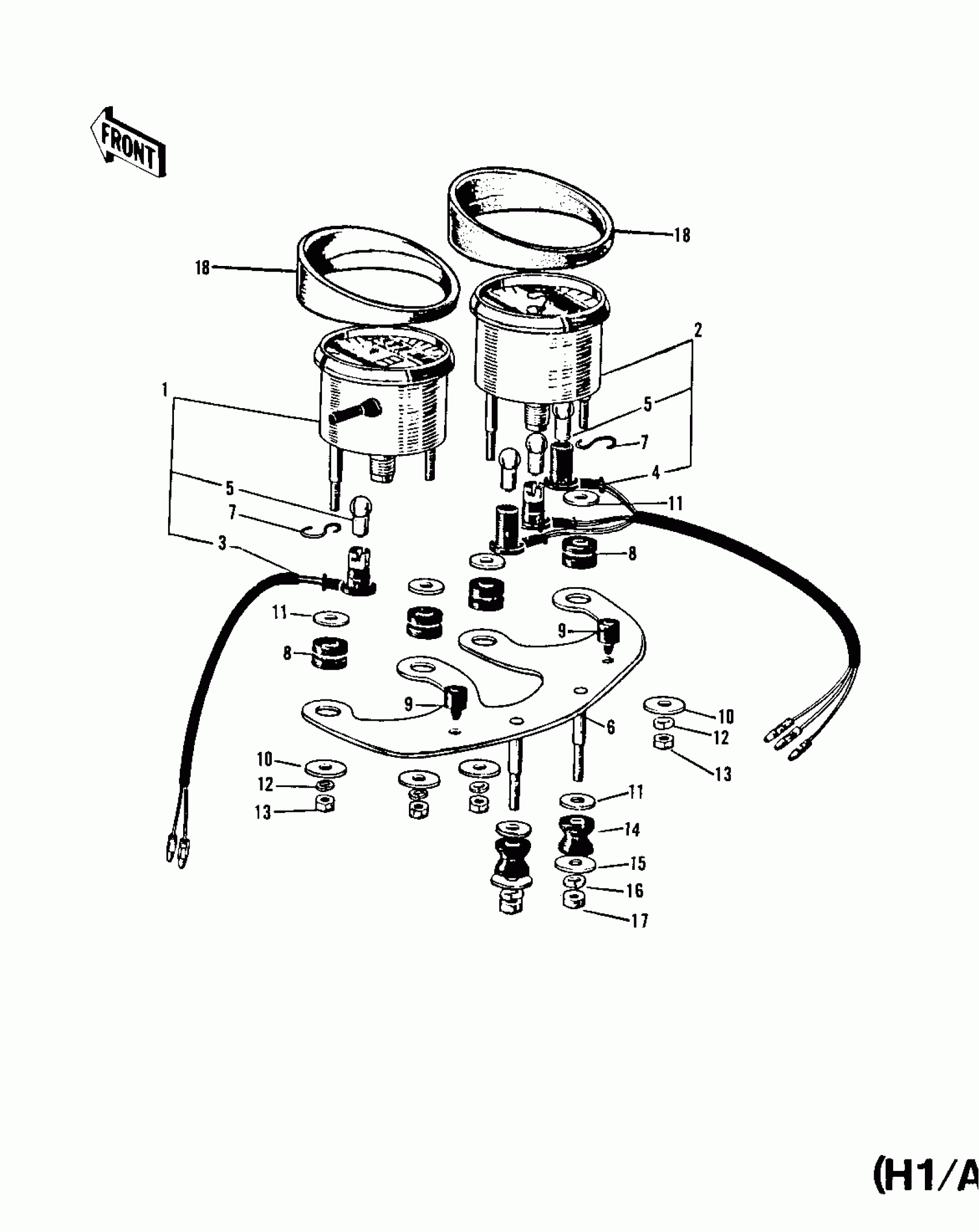

Kawasaki KH500-A8 METERS (H1/A/C) Diagram

#

Description
Price

1

SPEEDOMETER ASSY MPH

25005-027

Unavailable

2

TACHOMETER ASSY

25015-006

Unavailable

3

SOCKET SPEEDOMETER

25011-003

Unavailable

4

SOCKET TACHOMETER

25011-011

Unavailable

5

BULB 12V 3W

92069-018

$4.87

6

BRACKET SPEEDOMETER

25008-009

Unavailable

7

CLAMP CABLE

25022-002

$5.51

8

DAMPER RUBB SPEEDMETR

92075-034

$1.16

9

DAMPER

92075-035

$4.60

10

WASHER,5.5X20X1.2

92022-104

$4.31

11

WASHER PLAIN 8MM

411B0800

$0.93

12

WASHER SPRING 5MM

461F0500

$0.69

13

NUT-HEX

311B0500

$0.47

14

DAMPER

92075-024

$4.39

15

WASHER,6.5X20X1.6

92022-125

$1.40

16

WASHER SPRING 6MM

461F0600

$0.69

17

NUT 6MM

311B0600

$0.93

18

COVER-SPEEDOMETER

25012-003

$23.05
