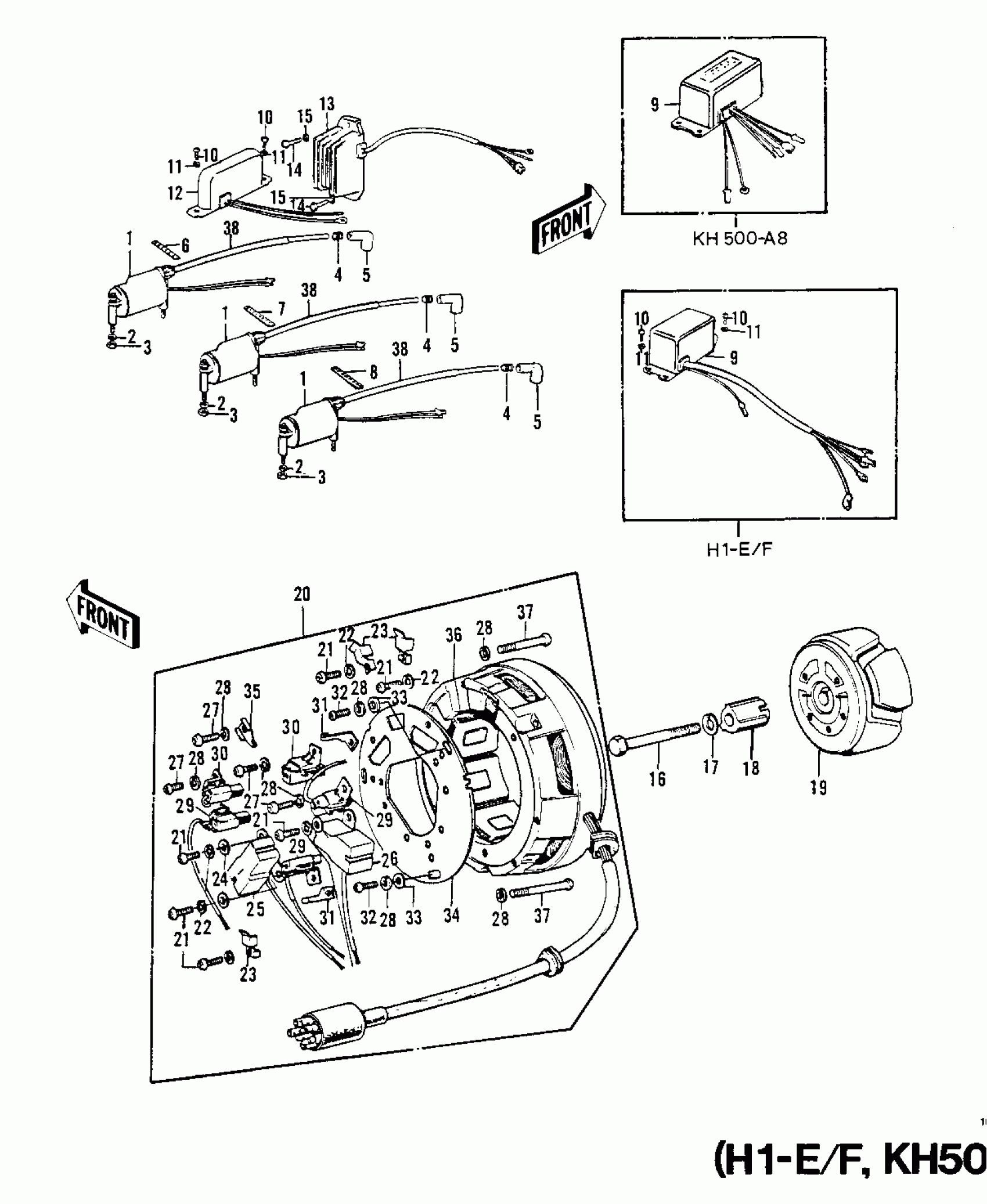

Kawasaki KH500-A8 IGNITION/GENERATOR/REGULATOR (H1-E/F,KH5 Diagram

#

Description
Price

1

COIL,IGNITION

21121-074

Unavailable

1

COIL,IGNITION

21121-087

Unavailable

2

WASHER SPRING 6MM

461F0600

$0.69

3

NUT 6MM

311B0600

$0.93

4

TERMINAL,SPARK PLUG CAP

92101-001

$1.69

5

CAP-SPARK PLUG

21130-009

$22.10

6

LABEL,LEFT

21168-001

Unavailable

7

LABEL,CENTER

21168-002

Unavailable

8

LABEL,RIGHT

21168-003

Unavailable

9

IGNITION UNIT

21119-025

$550.31

9

IGNITION UNIT

21119-025

$550.31

10

SCREW-PAN-CROS

220B0512

$0.47

11

WASHER SPRING 5MM

461F0500

$0.69

12

IGNITION UNIT B

21119-019

$207.16

13

REGULATOR

21066-1036

$384.72

14

BOLT-UPSET,6X20

112G0620

$2.12

15

WASHER SPRING 6MM

461F0600

$0.69

16

BOLT,FLANGED,8X70

92001-1583

$9.57

17

WASHER SPRING 8MM

461F0800

$0.40

18

ROTOR,S.G

21007-027

$75.27

19

ROTOR

21007-028

$372.11

20

YOKE ASSY

21076-016

Unavailable

20

YOKE ASSY

21076-022

$347.61

21

SCREW PAN HEAD 4X8

220B0408

$0.67

22

WASHER SPRING 4MM

461F0400

Unavailable

23

CLAMP,LEAD WIRE

21098-010

Unavailable

24

WASHER PLAIN 4MM

410B0400

$0.48

25

PICK UP

21152-004

$175.88

26

PICK UP

21152-005

$150.63

27

SCREW PAN HEAD 5X6

220B0506A

$1.96

28

WASHER SPRING 5MM

461F0500

$0.69

29

BRUSH,CARBON

21088-013

Unavailable

30

BRUSH,CARBON

21088-014

Unavailable

31

CLAMP,CARBON BRUSH

21098-011

Unavailable

32

SCREW-PAN-CROS

220B0512

$0.47

33

WASHER PLAIN 5MM

410B0500

$0.46

34

PLATE,YOKE

21155-007

Unavailable

35

POINTER,IGNITION TMNG

21020-003

Unavailable

36

STATOR

21003-024

Unavailable

36

STATOR ASSY

21003-033

$212.17

37

SCREW-PAN HEAD,5X50

220B0550A

Unavailable

38

CORD,HIGH TENSION

21133-026

$18.88
