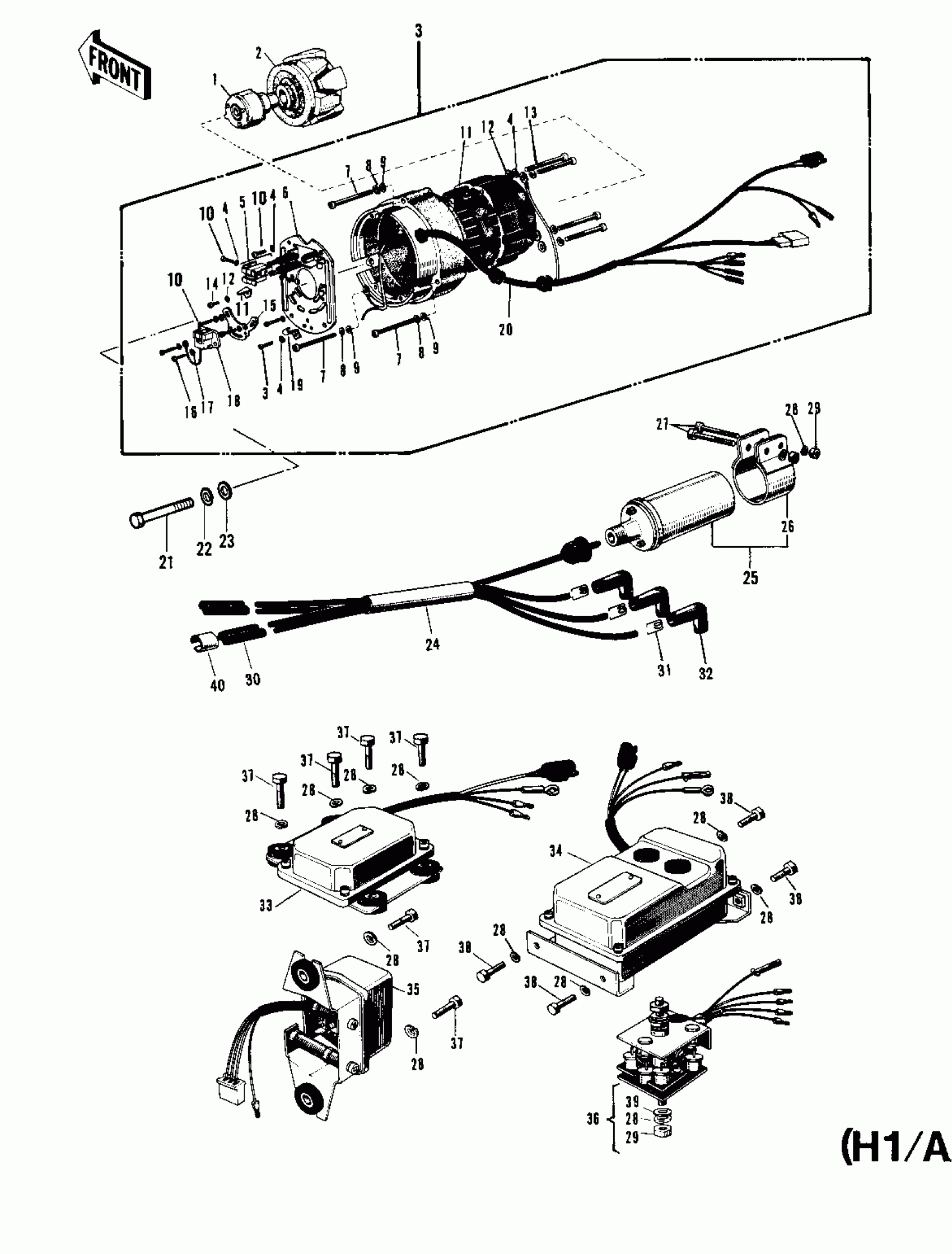

Kawasaki KH500-A8 IGNITION/GENERATOR/REGULATOR (H1/A/C) Diagram

#

Description
Price

1

ROTOR S.G

21007-011

$161.75

2

ROTOR

21007-012

$607.73

3

YOKE ASSY

21076-007

Unavailable

4

WASHER SPRING 4MM

461F0400

Unavailable

5

BRUSH CARBON

21088-009

Unavailable

6

PLATE-YOKE

21155-001

$29.45

7

SCREW

220R0455

$5.03

8

WASHER SPRING 5MM

461F0500

$0.69

9

WASHER-PLAIN,5MM

411B0500

$0.46

10

SCREW PAN HEAD 4X8

21085-004

Unavailable

10

SCREW PAN HEAD 4X8

220B0408

$0.67

11

POINTER-IGN TIMING

21020-020

$3.02

12

WASHER PLAIN 4MM

410B0400

$0.48

13

SCREW PAN HEAD 4X25

220B0425

$0.99

14

SCREW PAN HEAD 4X6

220B0406

$1.67

15

PLATE-PICK UP

21156-001

$3.10

16

SCREW-PAN-CROS

220B0310

$3.70

17

WASHER SPRING 3MM

461F0300

$0.46

18

PICK UP

21152-002

Unavailable

19

CLAMP-LEAD WIRE

21098-007

$2.32

20

WIRING HARNESS

21029-009

Unavailable

21

BOLT HEX HEAD 8X73

110B0873

$3.92

22

WASHER SPRING 8MM

461F0800

$0.40

23

WASHER PLAIN 8MM

411B0800

$0.93

24

ONCORD ASY-HIGH TENSI

21150-003

Unavailable

25

COIL IGNITION

21121-032

$131.20

26

BAND IGNITION COIL

21126-003

$6.79

27

BOLT 6X35

110R0635

Unavailable

28

WASHER SPRING 6MM

461F0600

$0.69

29

NUT 6MM

311B0600

$0.93

30

PROTECTOR-CORD

92115-002

Unavailable

31

TERMINAL,SPARK PLUG CAP

92101-001

$1.69

32

CAP-SPARK PLUG

21130-009

$22.10

33

IGNITION UNIT A

21119-006

$328.96

34

IGNITION UNIT B

21120-004

$319.88

35

REGULATOR VOLTAGE

21072-004

$245.23

36

RECTIFIER

21061-008

$190.63

37

BOLT-UPSET

112G0618

$1.01

38

BOLT-UPSET,6X12

112G0612

$1.45

39

WASHER PLAIN 6MM

411B0600

$2.84

40

PROTECTOR CORD

92114-002

$4.83
