Description

Price

1

LAMP UNIT,HEAD

23003-017

$400.76

2

SCREW,FOCUS ADJUSTING

23019-021

$4.69

3

SCREW,SPECIAL,5X14

23019-022

$2.12

4

SCREW,PAN HEAD,5X12

23019-023

$5.43

5

WASHER,PLAIN,5MM

23021-012

$5.43

6

NUT,5MM

23020-023

Unavailable

7

SPRING,FOCUS ADJUSTING

23014-005

$3.62

8

WASHER,4.1X8X0.8

23021-004

$2.91

9

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

10

RIM,HEAD LAMP

23006-038

Unavailable

11

RING,HEAD LAMP MOUNT

23072-001

$44.17

12

SEALD BEAM UNIT

23007-041

Unavailable

13

SCREW-PAN-CROS

220B0312

$1.58

14

RING,HEAD LAMP MOUNT

23074-001

$64.65

15

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

16

BODY-COMP-HEAD LAMP

23005-1015-21

$231.11

16

BODY-COMP-HEAD LAMP

23005-1015-21

$231.11

17

PLUG REAR FENDER RUB

92074-006

$6.83

18

COLLAR

23076-005

$49.11

19

DAMPER RUBBER

23066-005

Unavailable

20

DAMPER RUBBER A

23066-001

Unavailable

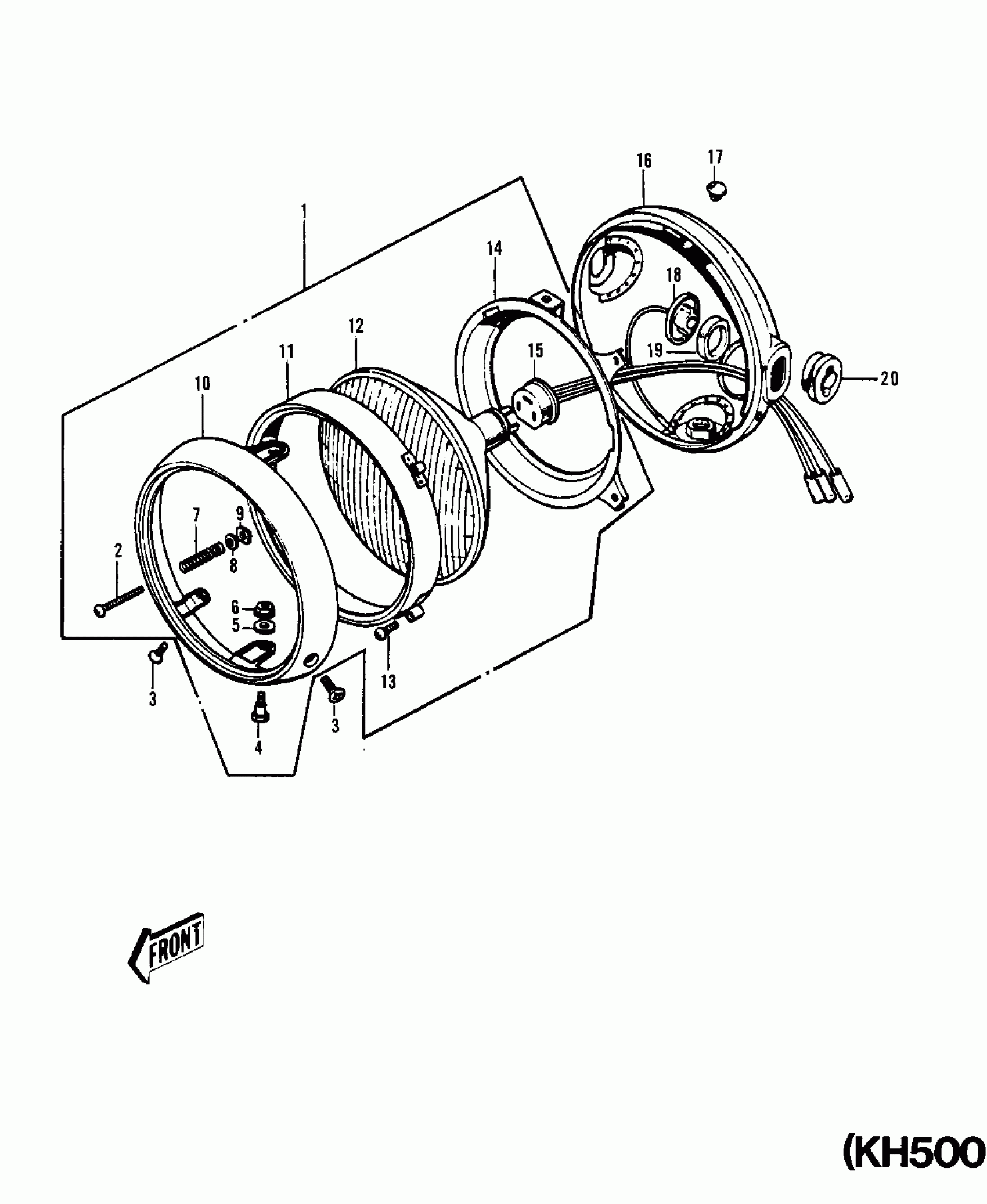

Kawasaki KH500-A8 HEADLIGHT (KH500-A8) Diagram

LAMP UNIT,HEAD

SCREW,FOCUS ADJUSTING

SCREW,SPECIAL,5X14

SCREW,PAN HEAD,5X12

WASHER,PLAIN,5MM

NUT,5MM

SPRING,FOCUS ADJUSTING

WASHER,4.1X8X0.8

NUT,4MM,FOCUS ADJUST

RIM,HEAD LAMP

RING,HEAD LAMP MOUNT

SEALD BEAM UNIT

SCREW-PAN-CROS

RING,HEAD LAMP MOUNT

SOCKET ASSY,HEAD LAMP

BODY-COMP-HEAD LAMP

BODY-COMP-HEAD LAMP

PLUG REAR FENDER RUB

COLLAR

DAMPER RUBBER

DAMPER RUBBER A
