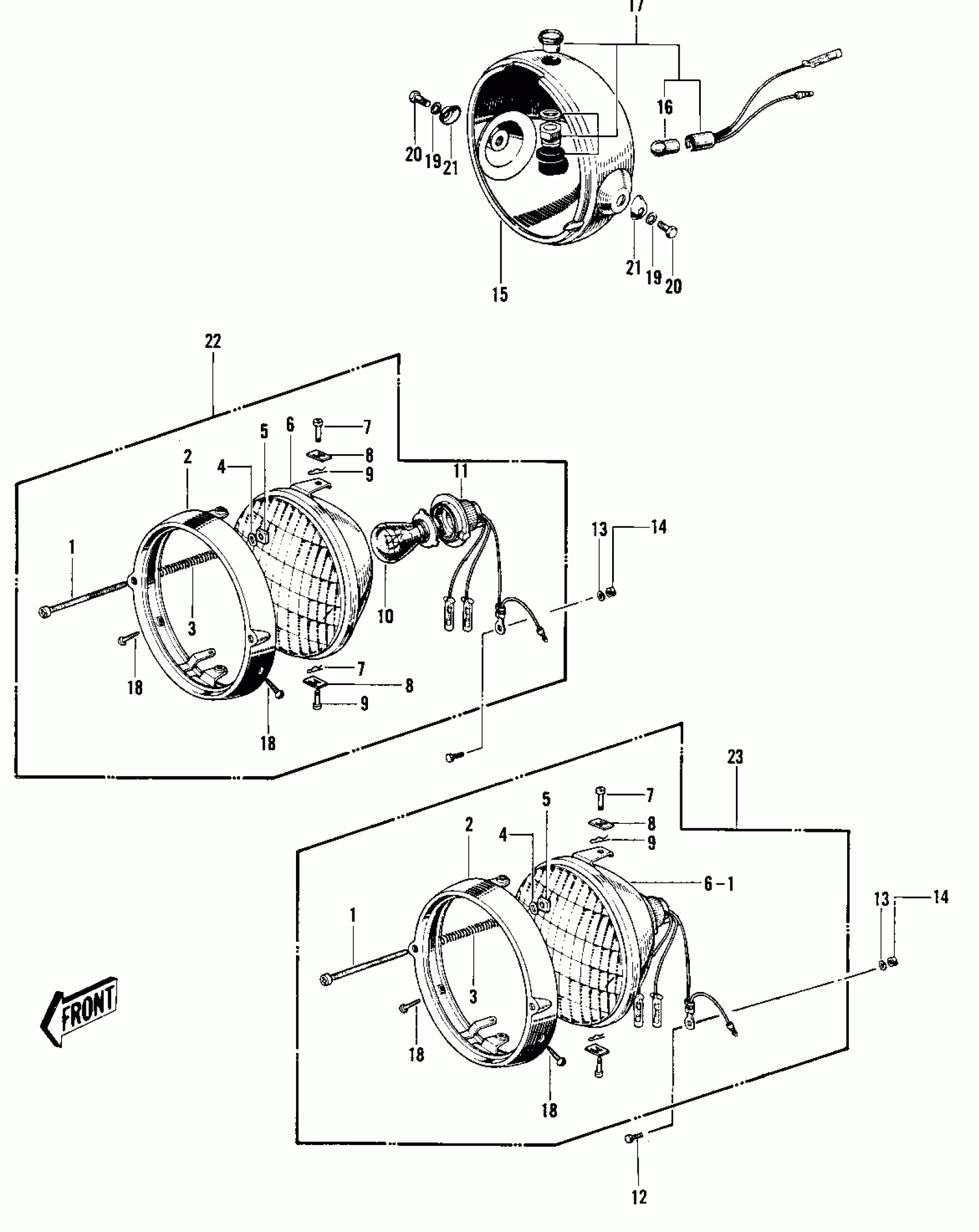

Kawasaki KH500-A8 HEADLIGHT ('69-'72 H1/A/B/C) Diagram

#

Description
Price

1

SCREW,FOCUS ADJUSTING

23019-021

$4.69

2

RIM HEAD LAMP

23006-017

Unavailable

3

SPRING,FOCUS ADJUSTING

23014-005

$3.62

4

WASHER,4.1X8X0.8

23021-004

$2.91

5

NUT

23020-016

Unavailable

6

LENS UNIT HEAD LAMP

23007-013

Unavailable

6-1

SEALED BEAM UNIT

23007-025

Unavailable

7

SCREW LENS UNIT FITT

23019-018

Unavailable

8

NUT LENS UNIT FITTING

23020-009

Unavailable

9

PIN LENS UNIT FITTING

23022-001

Unavailable

10

BULB 12V 35/25W

92069-037

$15.06

11

SOCKET HEAD LAMP

23008-011

Unavailable

12

SCREW-PAN-CROS,3X6

220B0306

$0.63

13

WASHER SPRING 3MM

461F0300

$0.46

14

NUT-HEX

311B0300

$0.40

15

BODY HEAD LAMP

23005-023

Unavailable

15

BODY-HEAD LAMP,F BLK

23005-018-21

Unavailable

16

BULB 12V 1.5W

92069-017

$4.92

17

LAMP ASSY HIGH BEAM

23016-002

Unavailable

17

SCREW-CSK-RD-CROS

222E0510

$3.16

19

WASHER SPRING 10MM

461F1000

$0.67

20

BOLT,HEX HEAD,10X25

92007-045

$10.62

21

DAMPER RUBBER

92075-058

Unavailable

22

LAMP UNIT HEAD

23004-020

Unavailable

23

LAMP UNIT HEAD

23003-011

$81.04
