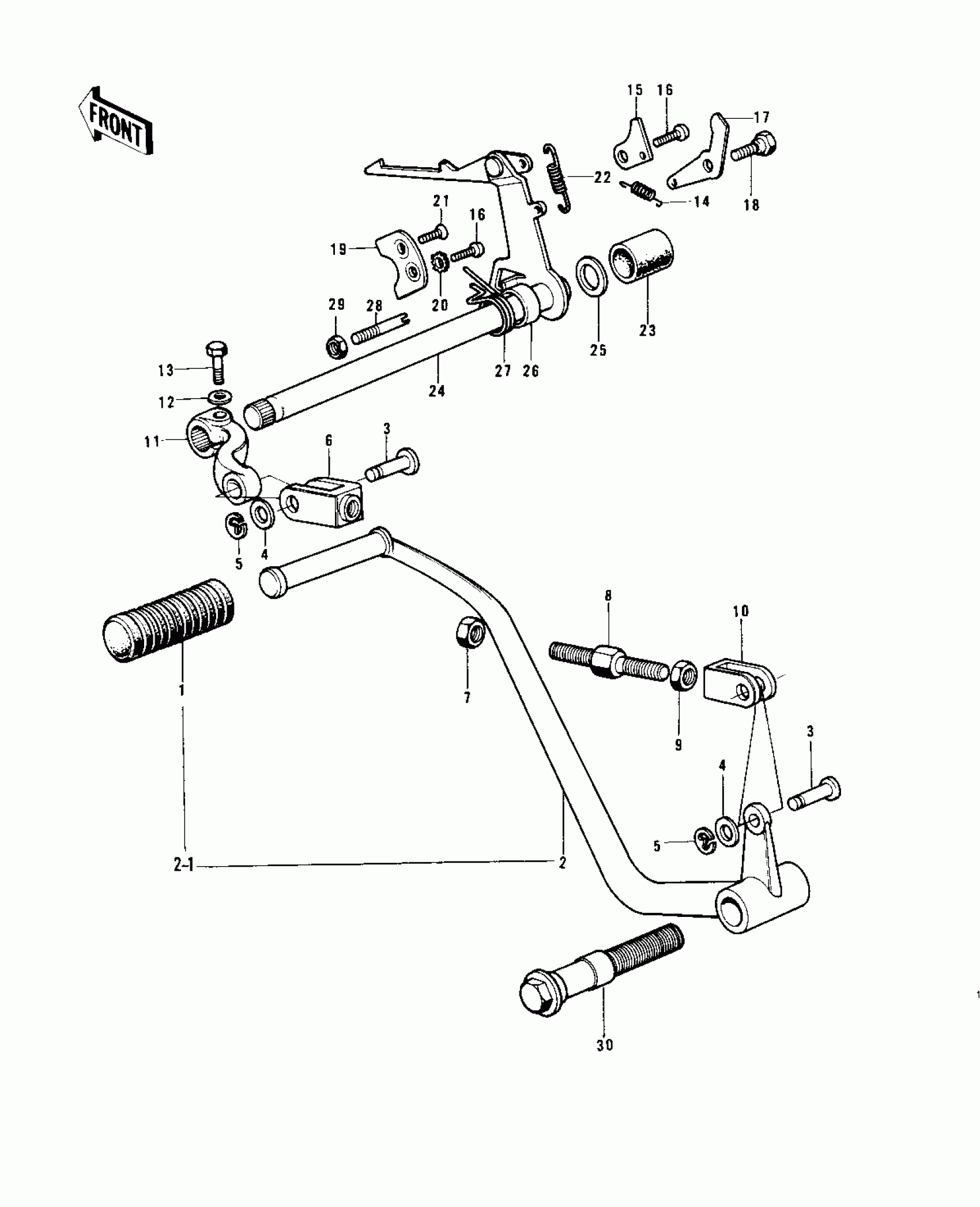

Kawasaki KH500-A8 GEAR CHANGE MECHANISM ('73-'75 D/E/F & ' Diagram
#
Description
Price
1
DAMPER,CHANGE PEDAL
13157-004
Unavailable
2
PEDAL ANY,GEAR CHANGE
13242-011
Unavailable
2-1
PEDAL ANY,GEAR CHANGE
13242-011
Unavailable
3
PIN
92043-069
$14.81
4
WASHER,8.5X13X1
92022-1028
$3.92
5
CIRCLIP 5MM
482K5000
Unavailable
6
CONNECTOR,B
13159-008
Unavailable
7
NUT,8MM
92017-010
Unavailable
8
BOLT,CHNG PEDAL JOINT
92003-115
Unavailable
9
NUT,8MM
318N0800
$3.34
10
CONNECTOR,A
13159-007
Unavailable
11
LEVER-GEAR CHANGE
13158-011
Unavailable
12
WASHER SPRING 8MM
461F0800
$0.40
13
BOLT,8X20
115G0820
$5.14
13
BOLT-SMALL-UPSET,8X22
115B0822
Unavailable
14
SPRING,CHNG DRUM LEVR
92081-1045
Unavailable
15
PLATE CHANGE DRUM LEV
13170-004
Unavailable
16
SCREW-PAN-CROS,6X16
220B0616
$2.84
17
LEVER GEAR CHNG DRUM
13168-012
Unavailable
18
BOLT,CHANGE DRUM LEVER
92150-1450
$5.35
19
PLATE CHNG DRUM PSTON
13169-005
Unavailable
20
WASHER LOCK 6MM
464H0600
Unavailable
21
SCREW CNTSNK HD 6X16
212B0616
Unavailable
22
SPRING,CHANGE LEVER
92144-1720
$4.74
22
SPRING,CHANGE LEVER
92081-151
$9.31
23
RUBBER CAP
13080-004
Unavailable
24
LEVER ASSY GEAR CHNG
13161-035
Unavailable
24
LEVER ASSY GEAR CHNG
13161-035
Unavailable
24
LEVER ASSY,CHANGE
13161-045
Unavailable
25
SPACER
92026-068
Unavailable
26
COLLAR,12X18X11.5
92027-121
$9.23
27
SPRING,TENSION
92081-1129
$9.43
28
BOLT,RETURN SPRING
92001-1401
$4.69
29
NUT 8MM
312B0800
$0.58
30
BOLT,CHANGE PEDAL
92003-117
Unavailable
31
SHIM-KICK SHAFT,0.5T
92022-150
Unavailable
32
NUT,12MM
314G1200A
$2.65
