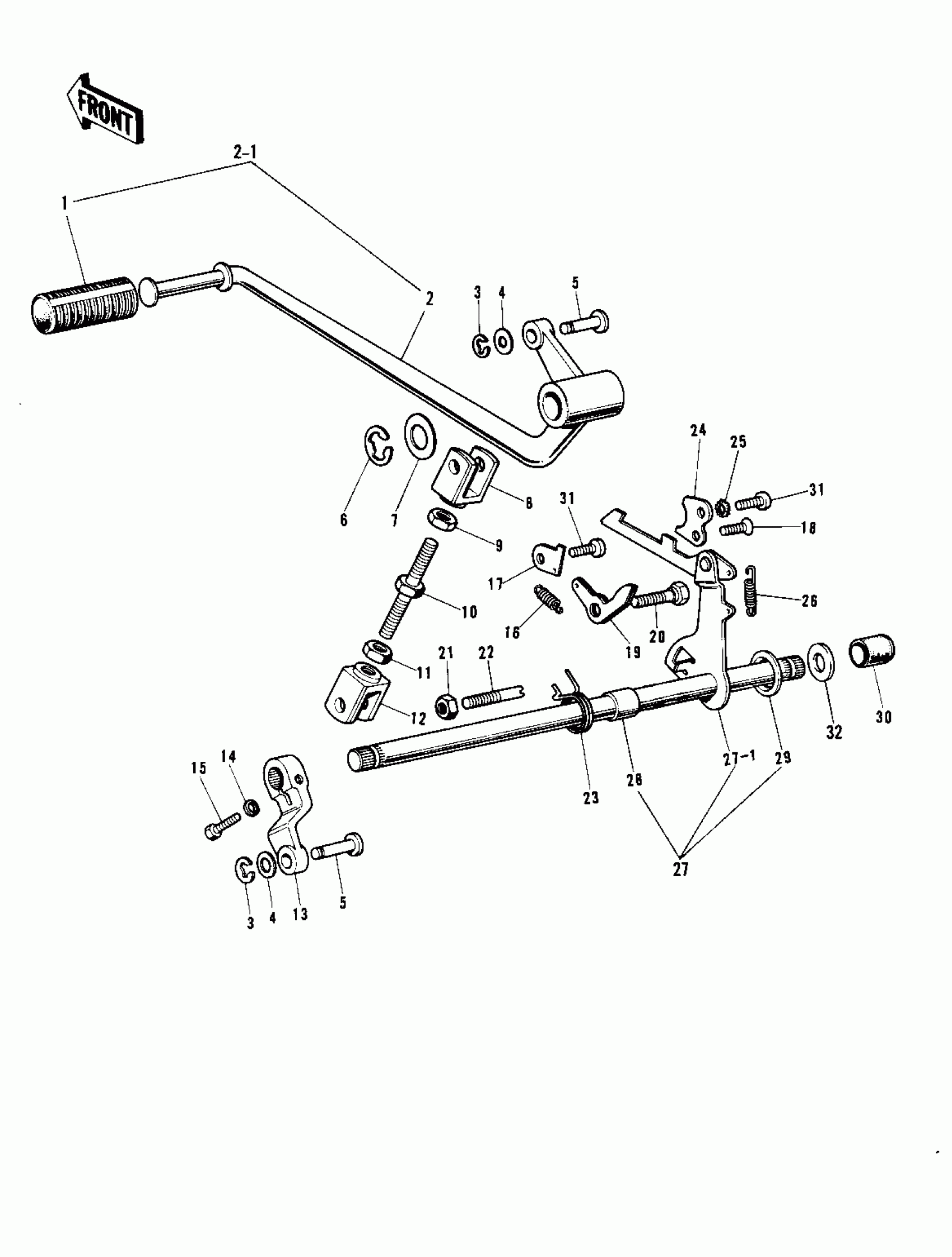

Kawasaki KH500-A8 GEAR CHANGE MECHANISM ('69-'72 H1/A/B/C) Diagram
#
1
DAMPER,CHANGE PEDAL
13157-004
Unavailable
2
PEDAL GEAR CHANGE
13156-026
Unavailable
2
PEDAL ANY,GEAR CHANGE
13242-011
Unavailable
2-1
PEDAL ANY,GEAR CHANGE
13242-011
Unavailable
3
CIRCLIP 5MM
482K5000
Unavailable
4
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
4
WASHER PLAIN 8MM
410B0800
$0.93
5
PIN JOINT
92043-024
Unavailable
5
PIN
92043-069
$14.81
6
CIRCLIP 12MM
482K0200
$1.25
7
WASHER BRAKE PEDAL
92022-085
$3.92
8
JOINT
13159-005
Unavailable
8
CONNECTOR,A
13159-007
Unavailable
9
NUT-HEX-SMALL,8MM
318B0800
$0.59
9
NUT,8MM
318N0800
Unavailable
10
BOLT CHNG PEDAL JOINT
92003-040
$10.51
11
NUT 8MM
92017-004
Unavailable
11
NUT,8MM
92017-010
Unavailable
12
JOINT
13159-006
Unavailable
12
CONNECTOR,B
13159-008
Unavailable
13
LEVER CHANGE PEDAL
13158-004
Unavailable
13
LEVER-GEAR CHANGE
13158-011
Unavailable
14
WASHER SPRING 6MM
461F0600
$0.69
14
WASHER SPRING 8MM
461F0800
$0.40
15
BOLT-UPSET,6X20
112G0620
$2.12
15
BOLT-SMALL-UPSET,8X22
115B0822
Unavailable
16
SPRING,CHNG DRUM LEVR
92081-1045
Unavailable
16
SPRING,CHNG DRUM LEVR
92081-1045
Unavailable
17
PLATE CHANGE DRUM LEV
13170-004
Unavailable
18
SCREW CNTSNK HD 6X16
212B0616
Unavailable
19
LEVER GEAR CHNG DRUM
13168-012
Unavailable
20
BOLT,CHANGE DRUM LEVER
92150-1450
$5.35
21
NUT 8MM
312B0800
$0.58
22
BOLT,RETURN SPRING
92001-1401
$4.69
22
BOLT,RETURN SPRING
92001-1401
$4.69
23
SPRING,TENSION
92081-1129
$9.43
23
SPRING,TENSION
92081-1129
$9.43
24
PLATE CHNG DRUM PSTON
13169-005
Unavailable
25
WASHER LOCK 6MM
464H0600
Unavailable
26
SPRING,CHANGE LEVER
92144-1720
$4.74
27
LEVER ANY,GEAR CHANGE
13162-008
Unavailable
27-1
LEVER ASSY GEAR CHNG
13161-035
Unavailable
27-1
LEVER ASSY GEAR CHNG
13161-035
Unavailable
28
COLLAR,12X18X11.5
92027-121
$9.23
29
SPACER
92026-068
Unavailable
30
RUBBER CAP
13080-004
Unavailable
31
SCREW-PAN-CROS,6X16
220B0616
$2.84
32
SHIM-KICK SHAFT,0.5T
92022-150
Unavailable
