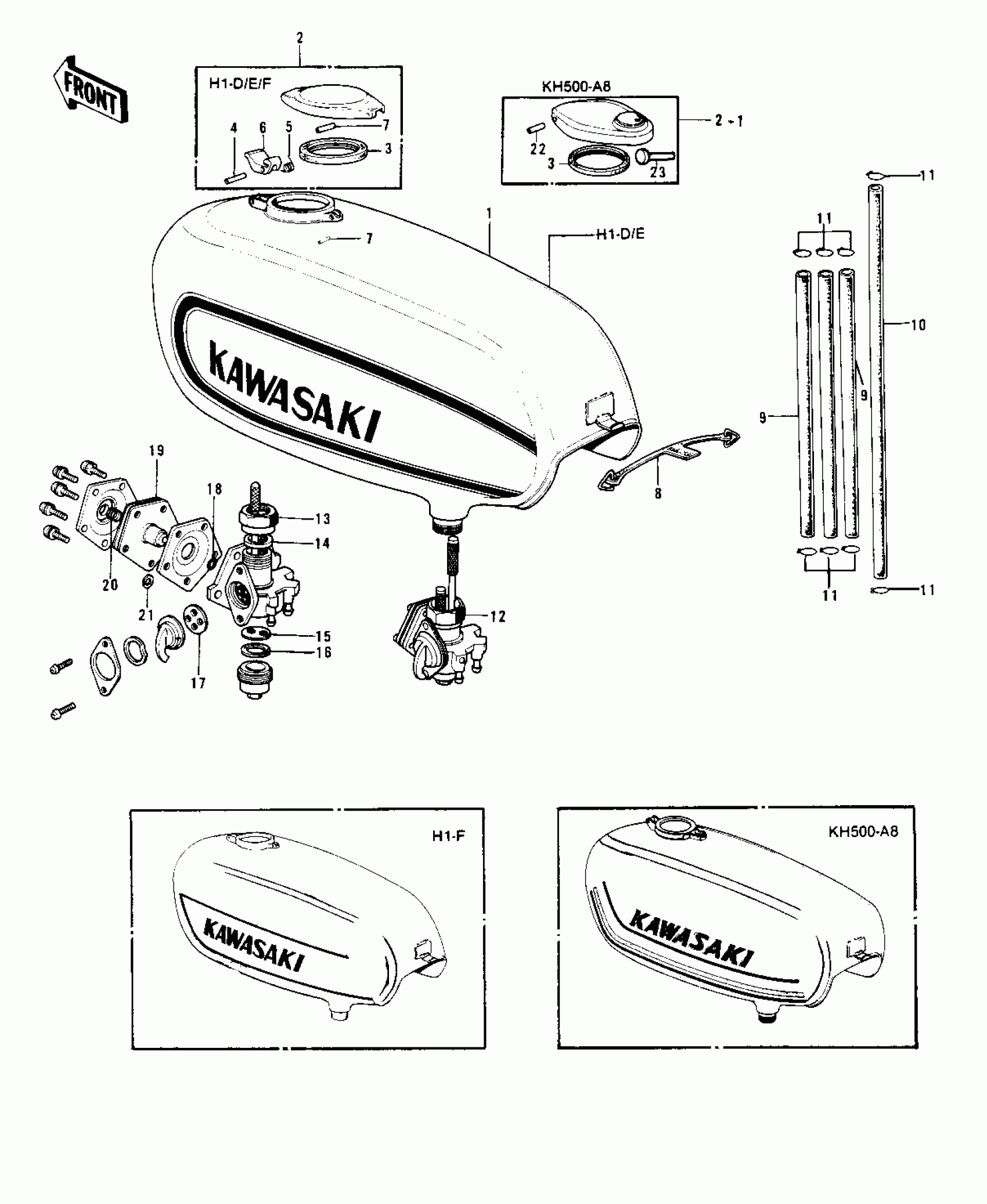

Kawasaki KH500-A8 FUEL TANK ('73-'75 D/E/F & '76 A8) Diagram

#

Description
Price

1

TANK-FUEL,C.LIME

51001-082-77

Unavailable

1

TANK-FUEL,C.RED

51001-082-1X

$425.33

1

TANK-FUEL,C.LIME

51001-082-1Y

$425.33

1

TANK-FUEL,C.BLUE

51001-082-2W

Unavailable

1

TANK-FUEL,C.GOLD

51001-082-2X

Unavailable

1

TANK-FUEL,D.BURGUNDY

51001-108-3T

$417.62

1

TANK-FUEL,COPPER

51001-108-3U

$435.51

2

CAP ASSY,FUEL TANK

51048-007

Unavailable

2-1

CAP,FUEL TANK

51048-012

Unavailable

3

GASKET-FUEL TANK CAP

51059-008

$10.97

4

PIN,TANK CAP

92043-091

Unavailable

5

SPRING-HOOK

51053-003

Unavailable

6

HOOK,FUEL TANK CAP

51063-002

$25.25

7

PIN,TANK CAP FIT

92043-096

Unavailable

8

BAND-FUEL TANK

92072-050

$10.23

9

PIPE FUEL TANK CONECT

51047-001

Unavailable

9

TUBE,4.5X9X380

92059-1691

Unavailable

10

PIPE OIL TANK

92059-008

$38.33

10

TUBE,4.5X9X220

92059-073

$38.33

11

CLAMP,TUBE

92037-010

$3.92

12

COCK ASSY,FUEL

51023-040

Unavailable

13

NUT FUEL COCK JOINT

51035-005

Unavailable

14

GASKET FUEL COCK JONT

92065-054

$14.07

15

STRAINER FUEL

51038-005

Unavailable

16

GASKET FUEL COCK CUP

51037-007

$3.71

17

GASKET FUEL COCK LEV

92065-055

$20.85

18

RING-O

92055-044

$10.38

19

DIAPHRAGM ASSY

51069-001

Unavailable

20

SPRING DIAPHRAGM

92081-048

Unavailable

21

GASKET

92065-052

Unavailable

22

PIN,CAP HINGE

92043-127

$5.24

23

PIN,HOOK

92043-126

Unavailable
