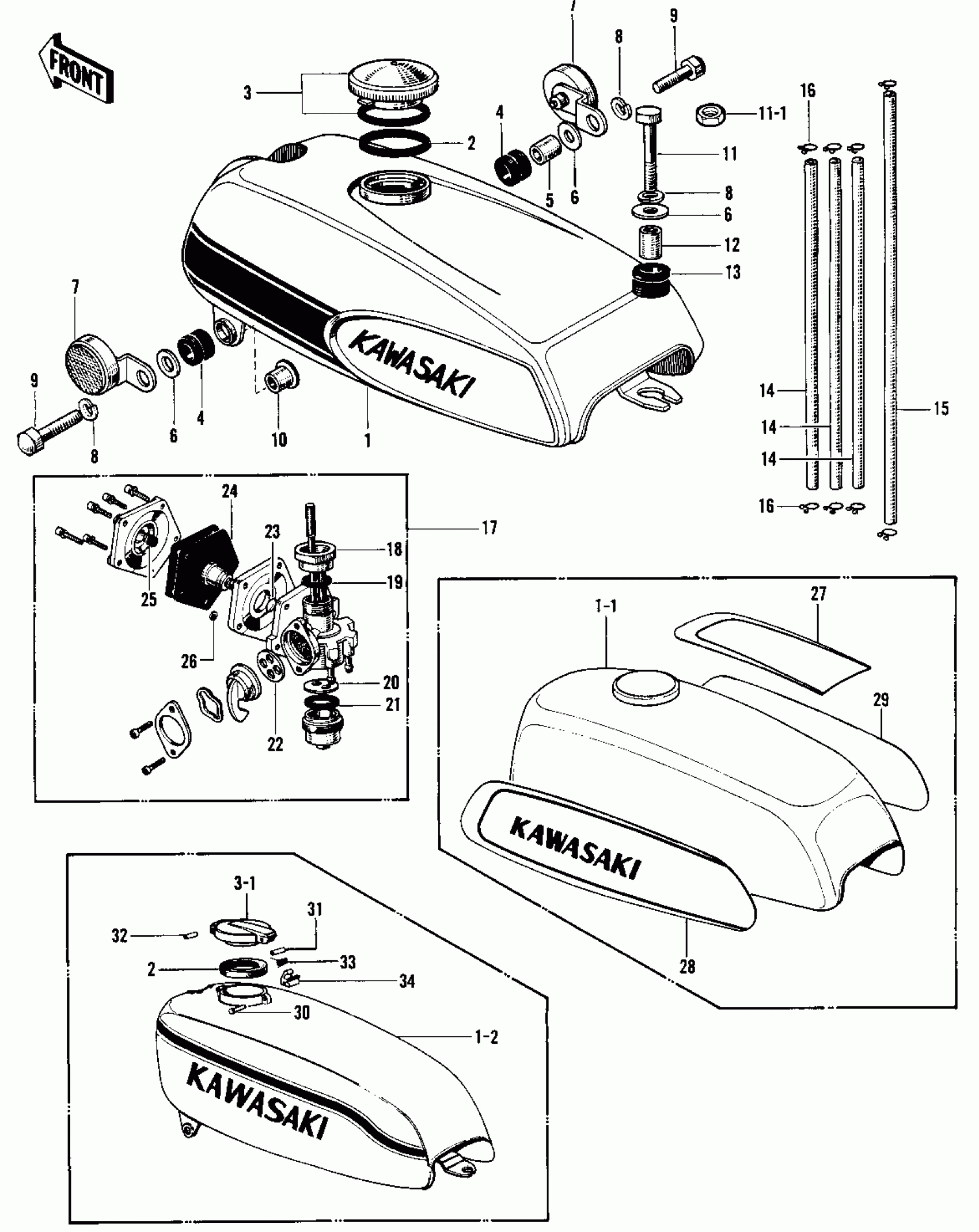

Kawasaki KH500-A8 FUEL TANK ('69-'72 H1/A/B/C) Diagram

#

Description
Price

1

TANK FUEL WHITE

51001-047-19

$374.76

1

TANK ASY,FUEL,WHITE

51002-014-19

Unavailable

1

TANK-FUEL,C.RED

51001-066-24

$375.51

1

TANK ASY,FUEL,C.RED

51002-014-24

$433.04

1

TANK-FUEL,P.GRAY

51001-066-47

$386.46

1

TANK ASY,FUEL,P.GRAY

51002-014-47

$424.30

1-1

TANK-FUEL,C.BLUE

51001-066-58

Unavailable

1-1

TANK ASY,FUEL,C.BLUE

51002-014-KK

Unavailable

1-2

TANK-FUEL,P.C.ORANGE

51001-074-67

Unavailable

2

GASKET-FUEL TANK CAP

51059-007

Unavailable

2

GASKET-FUEL TANK CAP

51059-008

$9.84

3

CAP FUEL TANK

51049-008

Unavailable

3-1

CAP-FUEL TANK

51051-004

$73.36

4

DAMPER RUBB TANK FRNT

92075-013

$3.76

5

COLLAR,8.8X12X14

92027-012

$4.67

6

WASHER,8X26X2.3

92022-1564

$3.29

7

REFLECTOR REFLEX

28001-004

$6.59

8

WASHER SPRING 8MM

461F0800

Unavailable

9

BOLT 8X38

92001-1405

$12.52

9

BOLT 8X38

92001-1405

$12.52

10

COLLAR,FUEL TANK FITT

92027-1134

$7.83

11

BOLT-SMALL-UPSET

115B0832

Unavailable

11-1

NUT,8MM

311B0800

Unavailable

12

COLLAR,8.8X12X17

92027-034

$7.15

13

DAMPER RUBB TANK REAR

92075-030

Unavailable

14

PIPE FUEL TANK CONECT

51047-001

Unavailable

15

PIPE OIL TANK

92059-008

$34.17

16

CLAMP,TUBE

92037-010

$2.99

17

COCK ASSY,FUEL

51023-040

Unavailable

17

COCK ASSY,FUEL

51023-040

Unavailable

18

NUT FUEL COCK JOINT

51035-005

Unavailable

19

GASKET FUEL COCK JONT

92065-054

$13.37

20

STRAINER FUEL

51038-005

Unavailable

21

GASKET FUEL COCK CUP

51037-007

Unavailable

22

GASKET FUEL COCK LEV

92065-055

$19.56

23

RING-O

92055-044

$7.90

24

DIAPHRAGM ASSY

51069-001

Unavailable

25

SPRING DIAPHRAGM

92081-048

Unavailable

26

GASKET

92065-052

Unavailable

27

EMBLEM-FUEL TANK,TOP

56018-040

Unavailable

28

EMBLEM-FUEL TANK,L.H

56018-041

Unavailable

29

EMBLEM-FUEL TANK,R.H

56018-042

Unavailable

30

PIN-HOOK

92043-072

Unavailable

31

PIN-TANK CAP STOPPER

92043-073

Unavailable

32

PIN-TANK CAP FIT

92043-074

Unavailable

33

SPRING-HOOK

51053-003

Unavailable

34

HOOK

51063-001

Unavailable
