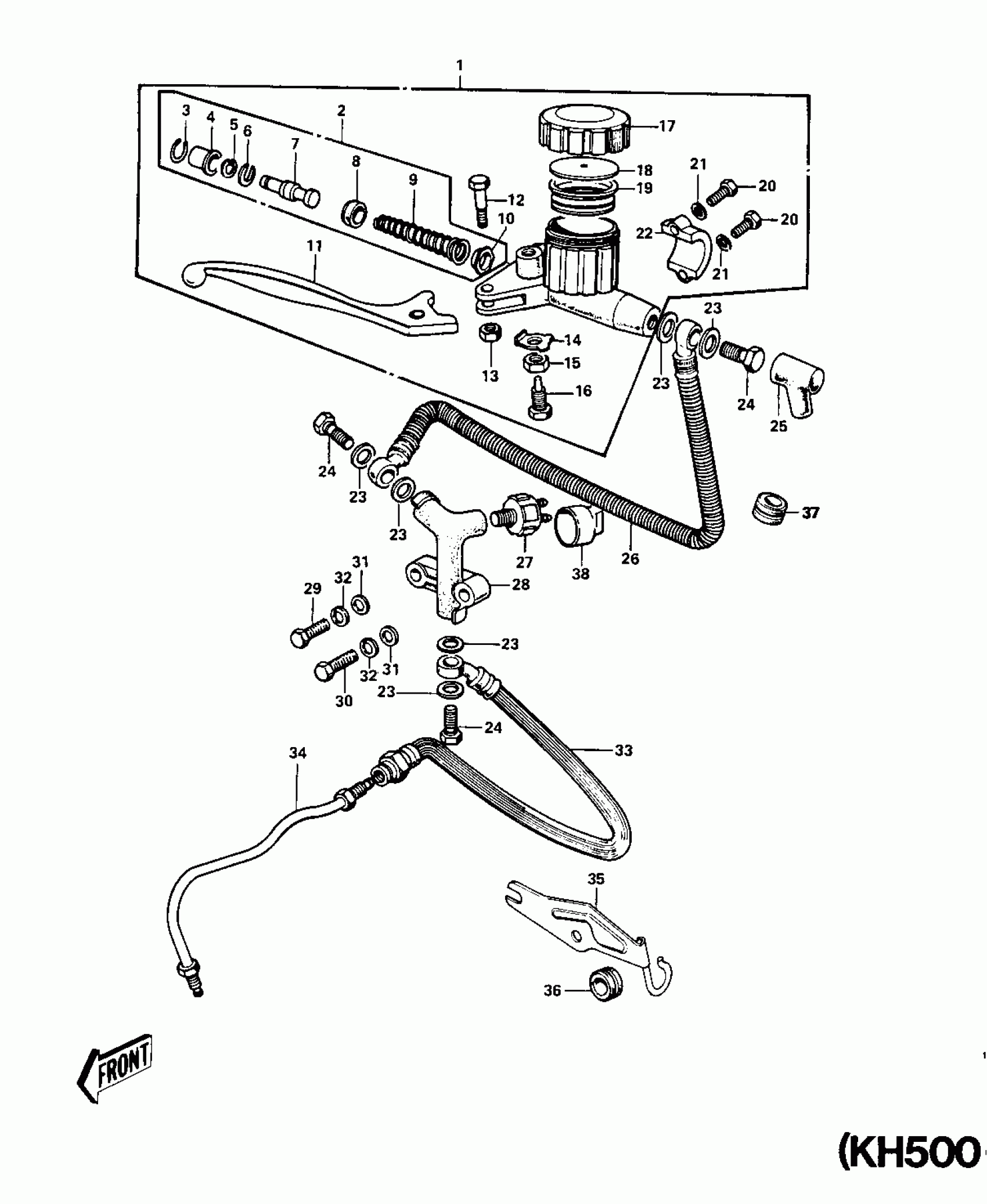

Kawasaki KH500-A8 FRONT MASTER CYLINDER (KH500-A8) Diagram

#

Description
Price

1

CYLINDER ASSY,MASTER

43015-032

Unavailable

1

CYLINDER ASSY,MASTER

43015-032

Unavailable

2

REPAIR SET-MASTER CYL

43073-001

$102.17

3

STOPPER-BOOTS

43025-001

Unavailable

4

BOOTS

43024-001

$7.20

5

CIRCLIP-TYPE-C,18MM

481J1800

$4.31

6

STOPPER-PISTON

43022-001

Unavailable

7

PISTON ASSY

43072-001

Unavailable

8

CUP-PRIMARY

43019-001

$16.61

9

SPRING ASSY-RETURN

43018-001

$24.74

10

VALVE ASSY-CHECK

43017-001

$14.80

11

LEVER,FRONT BRAKE

43029-003

$105.99

12

BOLT

43033-004

Unavailable

13

NUT 6MM

312B0600

$0.72

14

WASHER-LOCK,8MM

43031-001

Unavailable

15

NUT,8MM

311B0800

$0.67

16

BOLT,LEVER ADJUSTING

43030-003

Unavailable

17

CAP,OIL CUP

43026-003

Unavailable

18

PLATE-MASTER CYLINDE

43027-001

Unavailable

19

DIAPHRAGM

43028-001

$43.88

20

BOLT HEX HEAD 6X25

110N0625

$5.46

21

WASHER PLAIN 6MM

411B0600

$2.84

22

HOLDER-MASTER CYL

43034-001

$39.96

23

WASHER,10.5X15X1.5

43067-001

$2.15

24

BOLT,OIL,L=23

92002-1888

$5.48

25

BOOT,DUST

49006-1041

$11.49

26

HOSE,CYLINDER BRAKE

43059-009

Unavailable

27

SWITCH-FRONT BRAKE

43065-001

Unavailable

28

JOINT,THREE WAY

43061-002

Unavailable

29

BOLT,6X22

110N0622

$3.23

30

BOLT-HEX HEAD,6X32

110N0632

Unavailable

31

WASHER PLAIN 6MM

411B0600

$2.84

32

WASHER SPRING 6MM

461F0600

$0.69

33

HOSE-BRAKE,L=350

43059-1262

Unavailable

34

PIPE,BRIDGE

43060-021

Unavailable

35

BRACKET-BRAKE HOSE

43063-001

Unavailable

36

GROMMET-HOSE BRACKET

43064-001

Unavailable

37

DAMPER RUBBER

43064-005

Unavailable

38

RUBBER CAP,FRNT BRKE

92073-027

Unavailable
