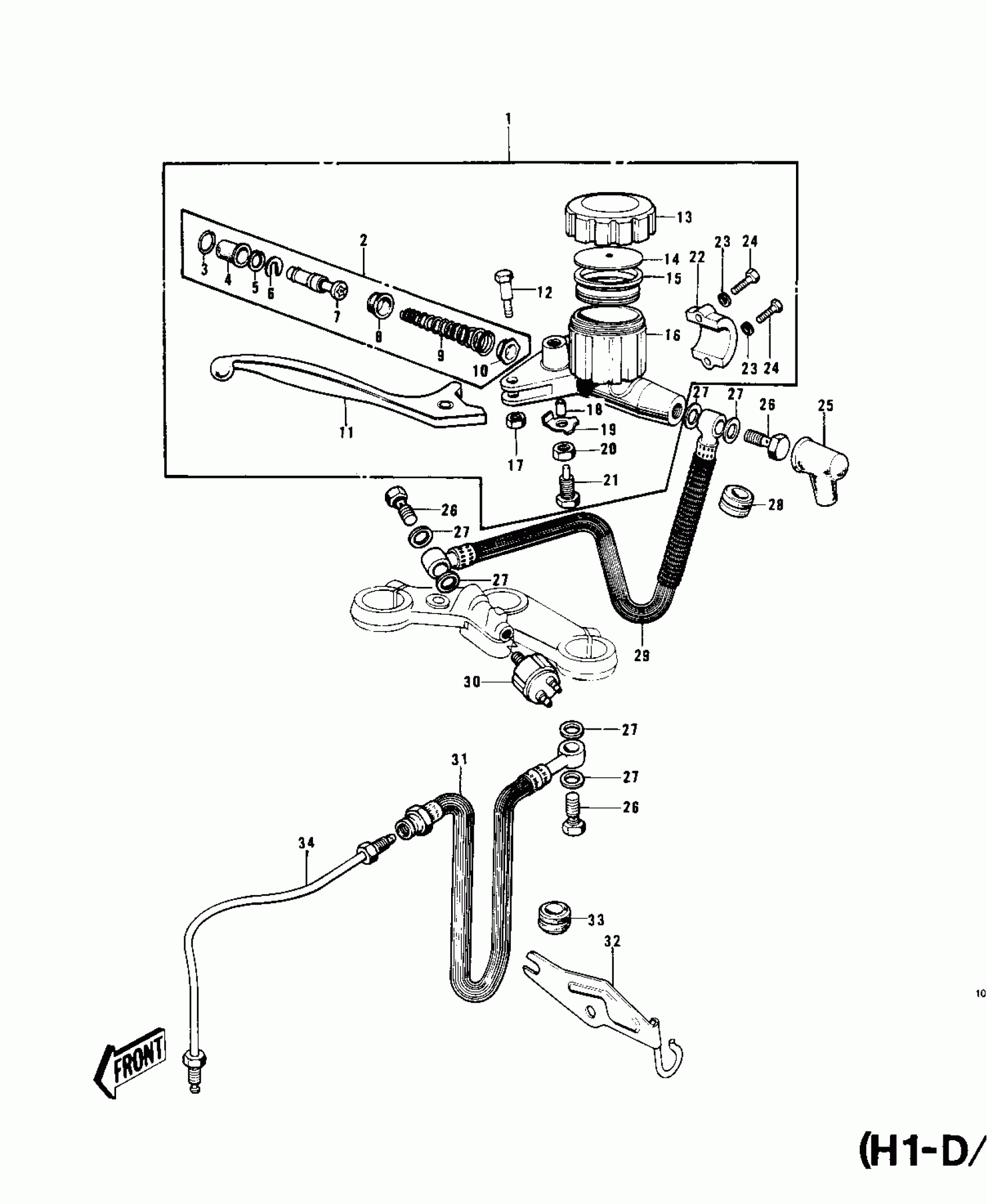

Kawasaki KH500-A8 FRONT MASTER CYLINDER (H1-D/E/F) Diagram

#

Description
Price

1

CYLINDER ASSY,MASTER

43015-032

Unavailable

1

CYLINDER ASSY,MASTER

43015-032

Unavailable

1

CYLINDER ASSY,MASTER

43015-032

Unavailable

2

REPAIR SET-MASTER CYL

43073-001

$102.17

3

STOPPER-BOOTS

43025-001

Unavailable

4

BOOTS

43024-001

$7.20

5

CIRCLIP-TYPE-C,18MM

481J1800

$4.31

6

STOPPER-PISTON

43022-001

Unavailable

7

PISTON ASSY

43072-001

Unavailable

8

CUP-PRIMARY

43019-001

$16.61

9

SPRING ASSY-RETURN

43018-001

$24.74

10

VALVE ASSY-CHECK

43017-001

$14.80

11

LEVER,FRONT BRAKE

43029-003

$105.99

12

BOLT-LEVER FITTING

43033-001

Unavailable

13

CAP,OIL CUP

43026-003

Unavailable

14

PLATE-MASTER CYLINDE

43027-001

Unavailable

15

DIAPHRAGM

43028-001

$43.88

16

BODY, MASTER CYLINDER

43016-002

Unavailable

17

NUT,6MM

312N0600

$3.93

18

TUBE

43074-001

$4.23

19

WASHER-LOCK,8MM

43031-001

Unavailable

20

NUT,8MM

314N0800

$0.46

21

BOLT-LEVER ADJUST

43030-002

Unavailable

22

HOLDER-MASTER CYL

43034-001

$39.96

23

WASHER PLAIN 6MM

411B0600

$2.84

24

BOLT HEX HEAD 6X25

110N0625

$5.46

25

BOOT,DUST

49006-1041

$11.49

26

BOLT,OIL,L=23

92002-1888

$5.48

27

WASHER,10.5X15X1.5

43067-001

$2.15

28

DAMPER RUBBER

43064-005

Unavailable

29

HOSE,CYLINDER BRAKE

43059-009

Unavailable

30

SWITCH-FRONT BRAKE

43065-001

Unavailable

31

HOSE-BRAKE,L=350

43059-1262

Unavailable

32

BRACKET-BRAKE HOSE

43063-001

Unavailable

33

GROMMET-HOSE BRACKET

43064-001

Unavailable

34

PIPE-FRONT BRAKE

43060-001

Unavailable
