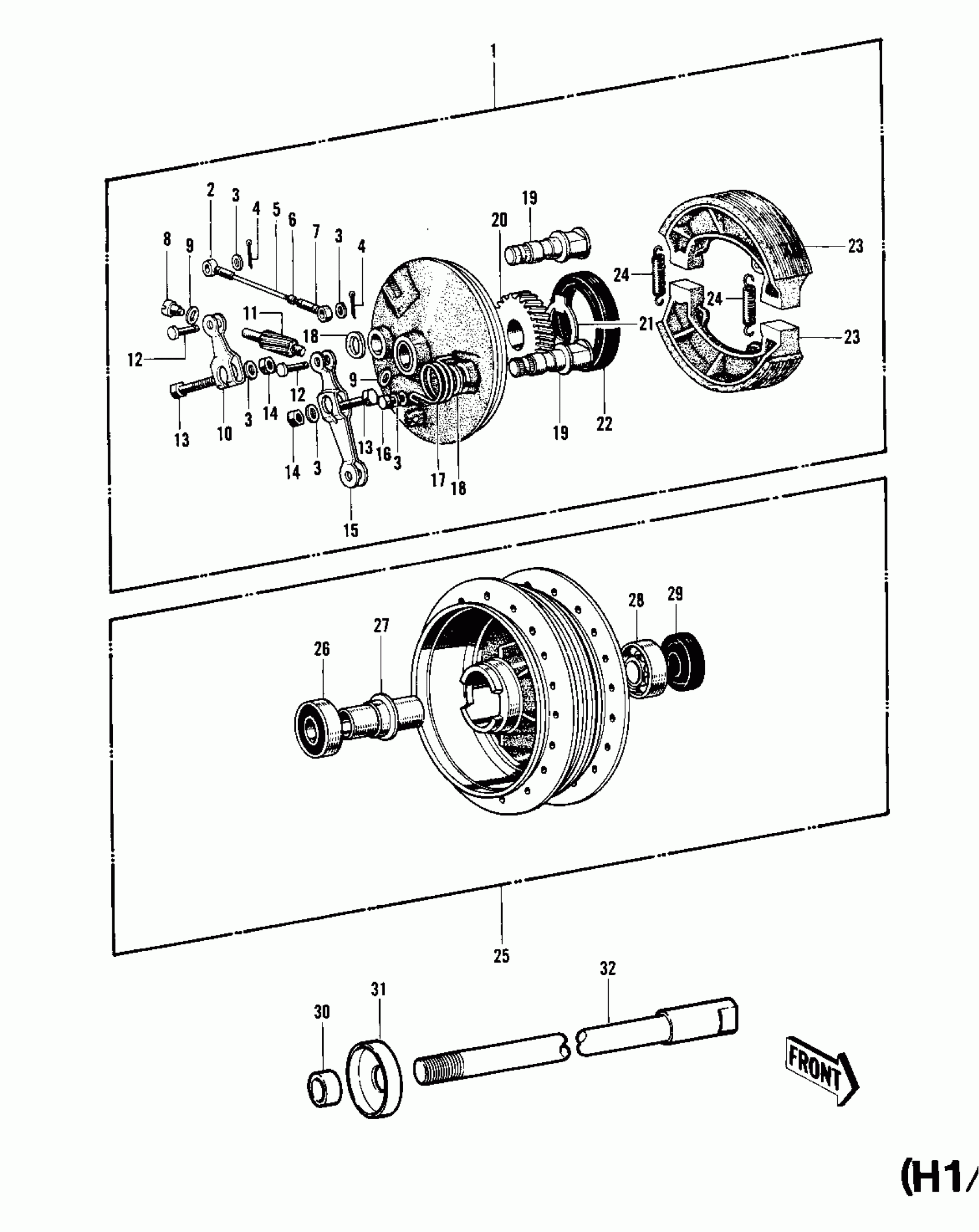

Kawasaki KH500-A8 FRONT HUB/BRAKE (H1/A/C) Diagram

#

Description
Price

1

PANEL-ASY,FR BRK

41035-018

$183.25

2

ROD END,BRK CONNECT

41058-009

Unavailable

2

ROD END,BRK CONNECT

41058-009

Unavailable

3

WASHER PLAIN 6MM

411B0600

$2.84

4

PIN COTTER 1.2X10

550D1210

$2.65

5

ROD BRK CAM LEV CONCT

41057-011

Unavailable

6

NUT-HEX

311B0500

$0.47

7

ROD END,BRK CONNECT

41058-008

Unavailable

7

ROD END,BRK CONNECT

41058-008

Unavailable

8

BUSH SPEDMETER PINION

41062-003

$29.59

9

WASHER PINION THRUST

41063-003

Unavailable

10

LEVER FRT BRK CAM 2ND

41053-012

Unavailable

11

PINION SPEEDOMETER

41060-009

$24.82

12

PIN BRAKE CONNECT ROD

41055-003

$9.02

13

BOLT-UPSET

112G0630

$1.36

14

NUT 6MM

311B0600

$0.93

15

LEVER FRT BRK CAM 1ST

41053-011

Unavailable

16

BOLT-UPSET

112G0618

$1.01

17

SPRING BRAKE CAM LEV

41056-003

Unavailable

18

SEAL,BRAKE CAM

41051-001

$4.26

19

CAM SHAFT FRONT BRAKE

41050-007

$44.03

20

GEAR SPEEDOMETER

41059-010

$40.68

21

RECIEVER SPEED GEAR

41064-005

Unavailable

22

OIL SEAL

92050-026

$19.23

23

SHOE BRAKE

41048-007

Unavailable

24

SPRING,BRAKE SHOE

41049-012

$9.49

25

DRUM-ASSY,FR BRK

41034-013

$161.31

26

BEARING BALL #6303Z

601B6303Z

$24.50

27

SPACER FR HUB BEARING

41039-015

Unavailable

28

UNAVAILABLE IN PRICE BOOK

601-B6303

$8.29

29

OIL SEAL FRONT AXLE

654A254708

$29.28

30

COLLAR AXLE OIL SEAL

41069-009

$10.17

31

DUST SHIELD FRONT HUB

41042-005

Unavailable

32

AXLE FRONT

41068-020

Unavailable
