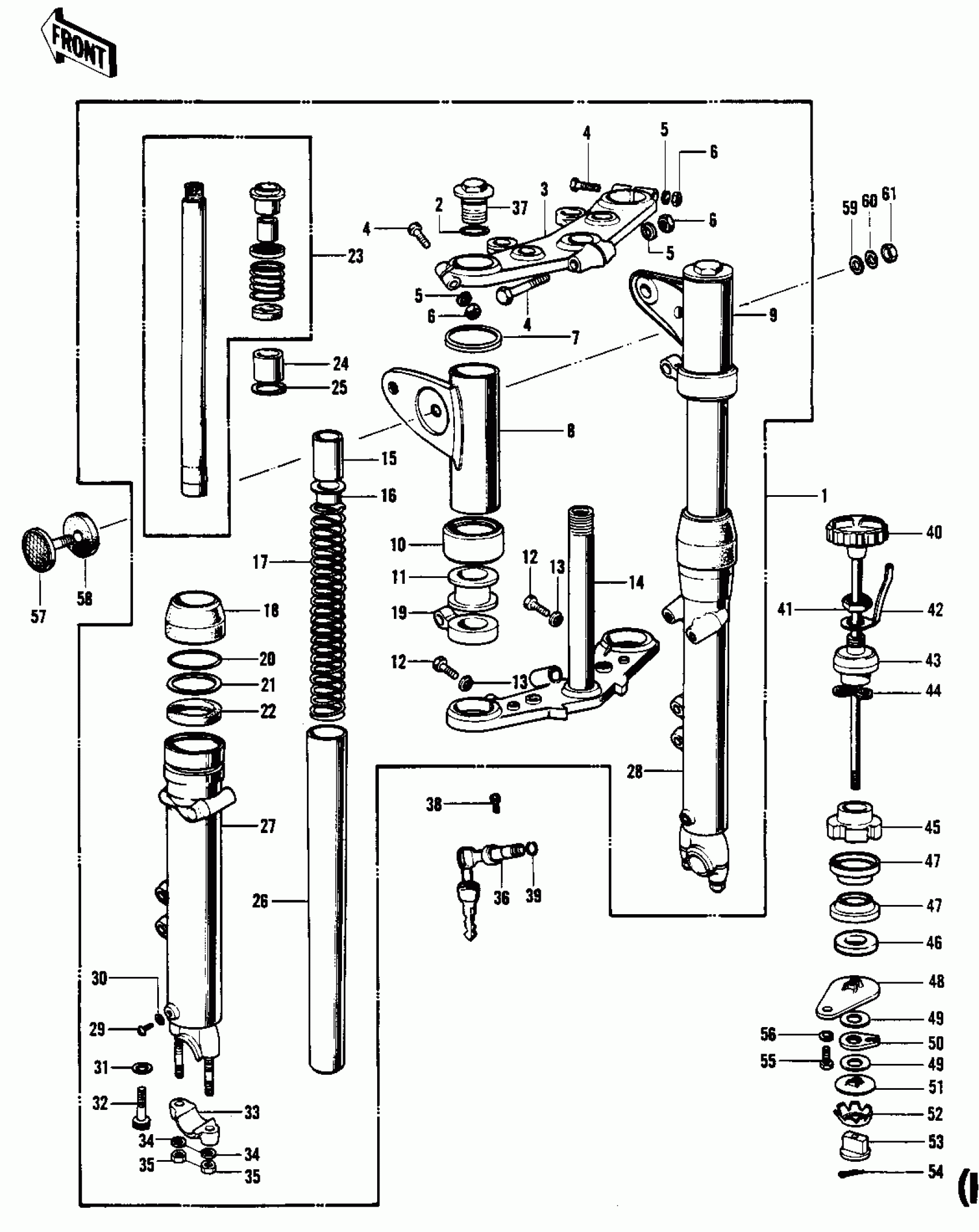

Kawasaki KH500-A8 FRONT FORK (H1-B) Diagram

#

Description
Price

1

FORK-FRONT

44001-087

$891.83

2

'O' RING FORK TOP

44046-015

$9.40

3

HEAD-STEERING STEM

44039-040

$146.99

4

BOLT-HEX HEAD,8X55

44041-038

Unavailable

5

WASHER SPRING 8MM

461F0800

$0.40

6

NUT,8M/M

311N0800

$3.34

7

WASHER-FORK COVER

44032-008

Unavailable

8

COVER,L.H,FORK,F.BLCK

44033-043-21

$88.12

9

COVER,R.H FORK,F.BLK

44034-042-21

$80.12

10

GUIDE-FORK COVER

44064-002

Unavailable

11

GASKET-FORK COVER

44045-035

$4.05

12

BOLT-HEX HEAD,12X36

113B1236A

$5.16

13

WASHER-SPRING,12MM

461F1200

$0.96

14

STEM-STEERING

44037-041

$245.13

15

SPACER-FORK SPRING

44028-023

Unavailable

16

GUIDE-FORK SPRING

44029-019

Unavailable

17

SPRING-FORK

44026-031

Unavailable

18

DUST SHIELD-FORK

44010-021

$63.61

18

DUST SHIELD-FORK

44010-021

$63.61

19

BRACKET-TURN SIG LAMP

23051-031

Unavailable

20

CIRCLIP-OIL SEAL FIT

44044-012

$29.65

21

WASHER-OIL SEAL FIT

44043-044

$13.51

22

SEAL-OIL,FORK OUTER PIPE

92049-1216

$23.21

23

CYLINDER-FORK

44022-007

$100.33

23

CYLINDER-FORK

44023-006

$147.28

24

PISTON FORK

44018-003

$15.50

24

PISTON,FORK

44018-009

Unavailable

25

CIRCLIP FORK PISTON

44044-008

$9.78

25

CIRCLIP,FORK PISTON

44044-019

Unavailable

26

TUBE-FORK INNER

44013-032

Unavailable

27

TUBE,LH,FORK OUTER

44005-041

$306.66

28

TUBE,RH,FORK OUTER

44006-039

$272.03

29

SCREW PAN HEAD 4X8

220B0408

$0.67

30

GASKET,FORK DRAIN PLUG

44045-002

$5.18

31

GASKET

44045-057

$4.86

32

BOLT,SOCKET,FORK CYLINDER

44041-040

$6.57

33

HOLDER-FRONT AXLE

44063-003

Unavailable

34

WASHER SPRING 8MM

461F0800

$0.40

35

NUT,8MM

311B0800

$0.67

36

LOCK ASSY-STEERING

27016-024

Unavailable

37

BOLT-FORK TOP

44062-003

Unavailable

38

RIVET

92099-001

$3.89

39

CIRCLIP-STEERING LOCK

92033-024

Unavailable

40

KNOB-STEERING DAMPER

46101-006

Unavailable

41

NUT 12MM

315N1200A

$5.13

42

SPRING STRG DAMP KNOB

46126-001

$5.79

43

BOLT-STEERING STEM

92090-020

Unavailable

44

WASHER-WAVE

46100-002

Unavailable

45

NUT,30MM

92090-007

$11.71

46

CAP,STEERING STEM

46098-016

$6.51

47

RACE,STEERING STEM BEARING

92047-006

$12.67

48

PLATE STRG DAMP STEEL

46106-005

Unavailable

49

PLATE STRG DAMP FRCTN

46104-005

Unavailable

50

PLATE STRG DAMP ANCHR

46105-005

Unavailable

51

PLATE STRG DAMP STEEL

46106-006

Unavailable

52

SPRING-STEERING DAMP

46124-006

Unavailable

53

NUT STRG DAMPER GUIDE

46125-005

Unavailable

54

PIN-COTTER,1.6X15

550D1615

$2.51

55

BOLT SMALL

114G0812

Unavailable

56

WASHER SPRING 8MM

461F0800

$0.40

57

REFLECTOR-REFLEX,FRNT

28012-006

Unavailable

58

DAMPER RUBBER-REFLCTR

92094-009

$8.34

59

WASHER-PLAIN,5MM

411B0500

$0.46

60

WASHER SPRING 5MM

461F0500

$0.69

61

NUT-HEX

311B0500

$0.47
