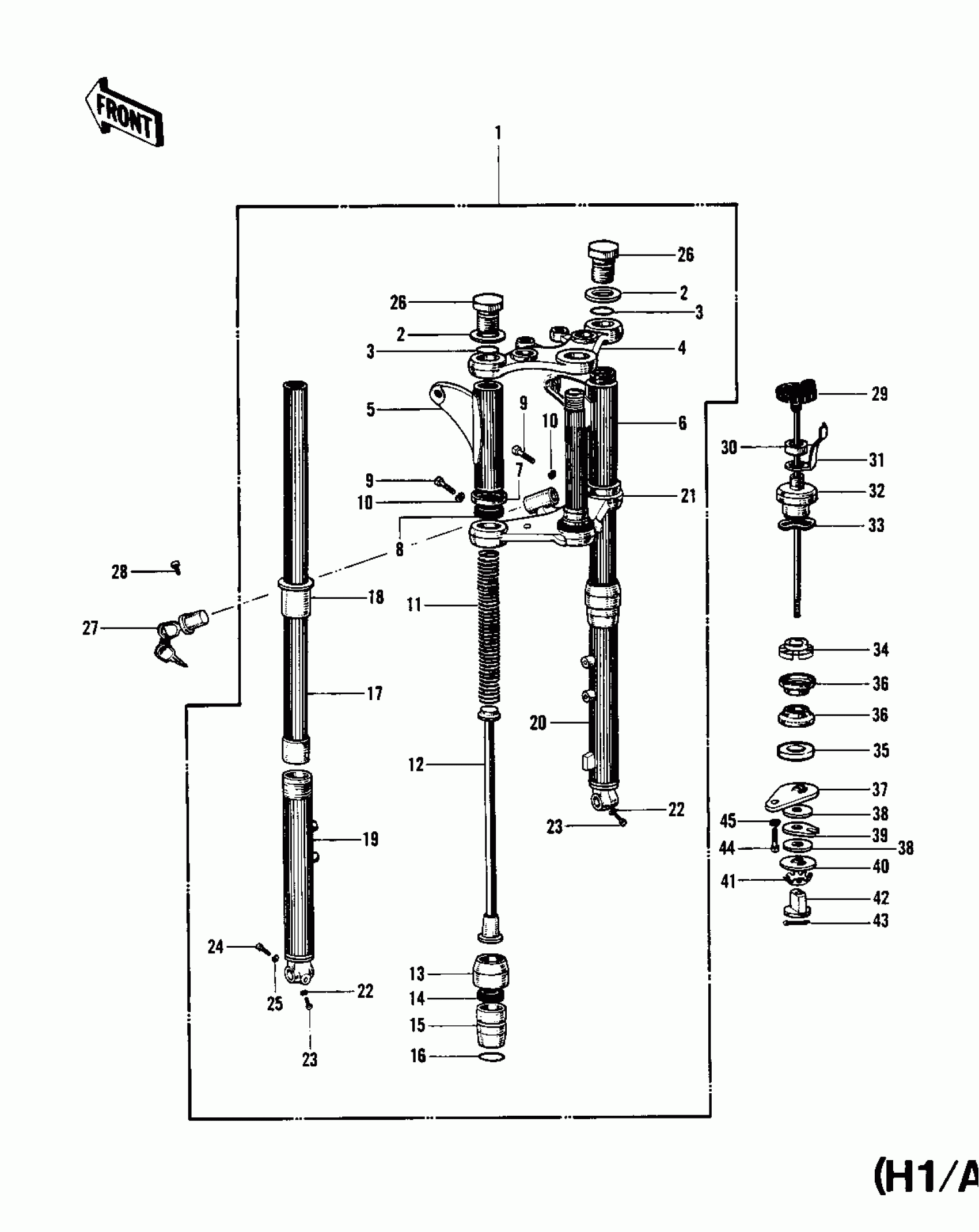

Kawasaki KH500-A8 FRONT FORK (H1/A/C) Diagram
#
1
FORK-FRONT,BLACK
44001-043-10
$910.63
2
WASHER FORK TOP
44043-033
$3.84
3
'O' RING FORK TOP
44046-015
$9.40
4
HEAD STEERING STEM
44039-025
$178.72
5
COVER-L.H FORK,BLACK
44033-024-10
$88.61
5
COVER LH FORK-SILVER
44033-024-42
Unavailable
6
COVER-R.H FORK,BLACK
44034-023-10
$49.21
6
COVER RH FORK-SILVER
44034-023-42
Unavailable
7
WASHER FORK COVER
44043-034
Unavailable
8
GASKET FORK COVER
44045-029
Unavailable
9
BOLT,HEX HEAD 10X35
92001-1252
Unavailable
10
WASHER SPRING 10MM
461F1000
$0.67
11
SPRING FORK
44026-022
$14.16
11
SPRING-FORK
44026-031
Unavailable
12
HOLDER FORK SPRING
44028-015
$82.60
13
DUST SHIELD
44010-017
Unavailable
14
OIL SEAL,FORK
44009-020
$60.50
15
NUT FORK OUTER TUBE
44007-015
Unavailable
16
'O' RING OUTER TUBE
44046-016
Unavailable
17
TUBE-FORK INNER
44013-025
Unavailable
18
GUIDE FORK INNER TUBE
44015-011
$23.50
19
TUBE,LH,FORK OUTER
44005-020
$117.41
20
TUBE,RH,FORK OUTER
44006-019
$143.92
21
STEM STEERING
44037-024
$419.90
22
GASKET,FORK DRAIN PLUG
44045-002
$5.18
23
SCREW PAN HEAD 4X8
220B0408
$0.67
24
BOLT-SMALL-UPSET
115B0832
Unavailable
25
WASHER SPRING 8MM
461F0800
$0.40
26
BOLT FORK TOP
44041-021
$53.20
27
LOCK ASSY STEERING
27016-017
Unavailable
28
RIVET
92099-001
$3.89
29
KNOB STEERING DAMPER
46101-004
Unavailable
30
NUT 12MM
315N1200A
$5.13
31
SPRING STRG DAMP KNOB
46126-001
$5.79
32
NUT STEERING STEM
92090-015
$45.34
33
WASHER STEERING STEM
46100-001
Unavailable
34
NUT,30MM
92090-007
$11.71
35
CAP,STEERING STEM
46098-016
$6.51
36
RACE,STEERING STEM BEARING
92047-006
$12.67
37
PLATE STRG DAMP STEEL
46106-005
Unavailable
38
PLATE STRG DAMP FRCTN
46104-005
Unavailable
39
PLATE STRG DAMP ANCHR
46105-005
Unavailable
40
PLATE STRG DAMP STEEL
46106-006
Unavailable
41
SPRING-STEERING DAMP
46124-006
Unavailable
42
NUT STRG DAMPER GUIDE
46125-005
Unavailable
43
PIN-COTTER,1.6X15
550D1615
$2.51
44
BOLT SMALL
114G0812
Unavailable
45
WASHER SPRING 8MM
461F0800
$0.40
