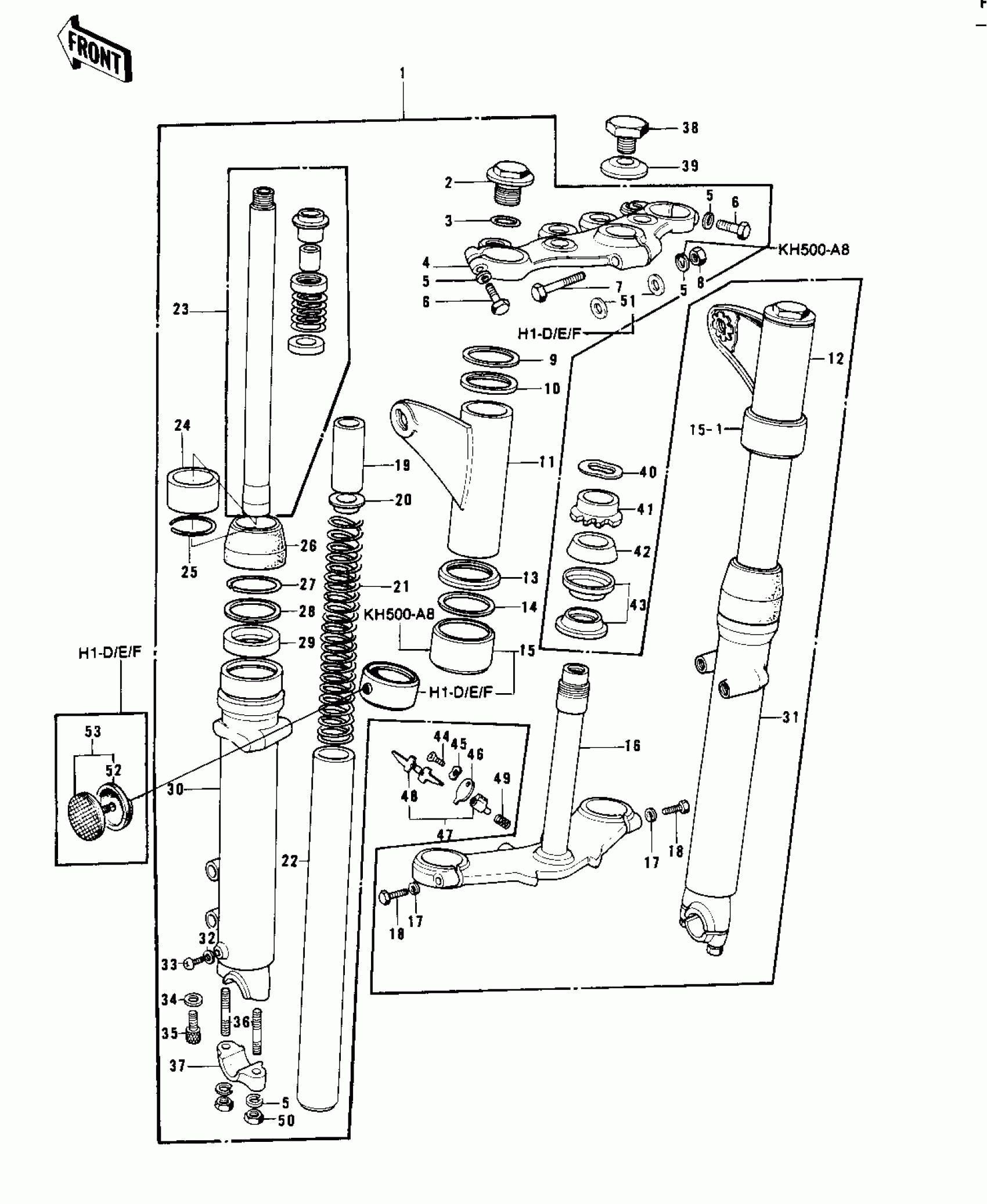

Kawasaki KH500-A8 FRONT FORK ('73-'75 D/E/F & '76 A8) Diagram
#
1
FORK-FRONT
44001-131
$1,330.55
1
FORK-FRONT
44001-131
$1,330.55
1
FORK-FRONT
44001-176
$924.76
2
BOLT-FORK TOP
44062-003
Unavailable
3
'O' RING FORK TOP
44046-015
$9.40
4
HEAD,STEERING STEM
44039-048
$169.39
5
WASHER SPRING 8MM
461F0800
$0.40
5
WASHER SPRING 8MM
461F0800
$0.40
6
BOLT,HEX HEAD,6MM
44041-049
Unavailable
7
BOLT-STEERING STEM HD
44041-042
Unavailable
8
NUT,LOCK,8MM
92015-1124
$5.42
8
NUT,LOCK,8MM
92015-1124
$5.42
8
NUT,LOCK,8MM
92017-013
$10.35
9
GASKET,FORK COVER
44045-041
$5.94
10
WASHER,FORK COVER
44043-048
Unavailable
11
COVER-L.H.FORK
44033-069
Unavailable
11
COVER-L.H.FORK
44033-069
Unavailable
11
COVER,L.H FORK
44033-068
Unavailable
12
COVER,R.H FORK
44034-069
Unavailable
12
COVER,R.H FORK
44034-069
Unavailable
12
COVER,R.H FORK
44034-068
Unavailable
13
WASHER-FORK COVER
44032-008
Unavailable
14
GASKET,FORK COVER
44045-040
Unavailable
14
GASKET,FORK COVER
44045-038
Unavailable
15
GUIDE,L.H FORK COVER
44064-014
Unavailable
15
GUIDE,FORK COVER
44064-025
Unavailable
15-1
GUIDE,R.H FORK COVER
44064-013
Unavailable
15-1
GUIDE,FORK COVER
44064-025
Unavailable
16
STEM,STEERING
44037-053
$458.03
16
STEM,STEERING
44037-096
$284.27
17
WASHER-SPRING,12MM
461F1200
$0.96
18
BOLT-HEX HEAD,12X36
92003-064
$25.59
19
SPACER-FORK SPRING
44028-023
Unavailable
20
GUIDE-FORK SPRING
44029-019
Unavailable
21
SPRING-FORK
44026-031
Unavailable
22
TUBE-FORK INNER
44013-032
Unavailable
23
CYLINDER-FORK
44022-007
$100.33
23
CYLINDER-FORK
44023-006
$147.28
23
CYLINDER-FORK
44022-027
Unavailable
23
CYLINDER-FORK
44022-038
$70.68
24
PISTON FORK
44018-003
$15.50
24
PISTON,FORK
44018-009
Unavailable
25
CIRCLIP FORK PISTON
44044-008
$9.78
25
CIRCLIP,FORK PISTON
44044-019
Unavailable
26
DUST SHIELD-FORK
44010-021
$63.61
26
DUST SHEILD,FORK
44010-032
$39.46
27
CIRCLIP-OIL SEAL FIT
44044-012
$29.65
29
SEAL-OIL,FORK OUTER PIPE
92049-1216
$23.21
29
SEAL-OIL,FORK OUTER PIPE
92049-1216
$23.21
30
TUBE,LH,FORK OUTER
44005-041
$306.66
30
TUBE,LH,FORK OUTER
44005-065
$319.24
31
TUBE,RH,FORK OUTER
44006-039
$272.03
31
TUBE,RH,FORK OUTER
44006-063
$506.09
32
GASKET,FORK DRAIN PLUG
44045-002
$5.18
33
SCREW PAN HEAD 4X8
220B0408
$0.67
34
GASKET
44045-057
$4.86
35
BOLT,SOCKET,FORK CYLINDER
44041-040
$6.57
36
STUD,8X35
92004-1009
$6.38
37
HOLDER-FRONT AXLE
44063-003
Unavailable
37
HOLDER,FRONT AXLE
44063-014
Unavailable
38
BOLT,16X25.5
92007-031
Unavailable
39
WASHER,16X41X4
92022-230
$11.93
40
WASHER,WAVE
46100-003
$11.39
41
NUT,30MM
92090-007
$11.71
42
CAP,STEERING STEM
46098-016
$6.51
43
RACE,STEERING STEM BEARING
92047-006
$12.67
44
SCREW,3.51MM
92008-007
$4.11
45
WASHER,WAVE
92097-003
$4.50
46
CAP,STEERING LOCK
27031-002
Unavailable
46
CAP,STEERING LOCK
27031-004
Unavailable
47
LOCK ASSY-STEERING
27016-030
$20.87
47
LOCK ASSY,STEERING
27016-038
$45.68
48
KEY SET,#265
27018-016-65
Unavailable
48
KEY SET,#279
27018-016-79
Unavailable
48
KEY SET,#911
27008-055-11
Unavailable
48
KEY SET,#925
27008-055-25
Unavailable
49
SPRING,STEERING LOCK
27032-001
$5.25
50
NUT,8MM
311B0800
$0.67
50
NUT,LOCK,8MM
92017-013
$10.35
51
WASHER PLAIN 8MM
410B0800
$0.93
52
DAMPER RUBBER-REFLEX
28016-002
$8.55
53
REFLECTOR,REFLEX,FRNT
28001-029
$27.98
