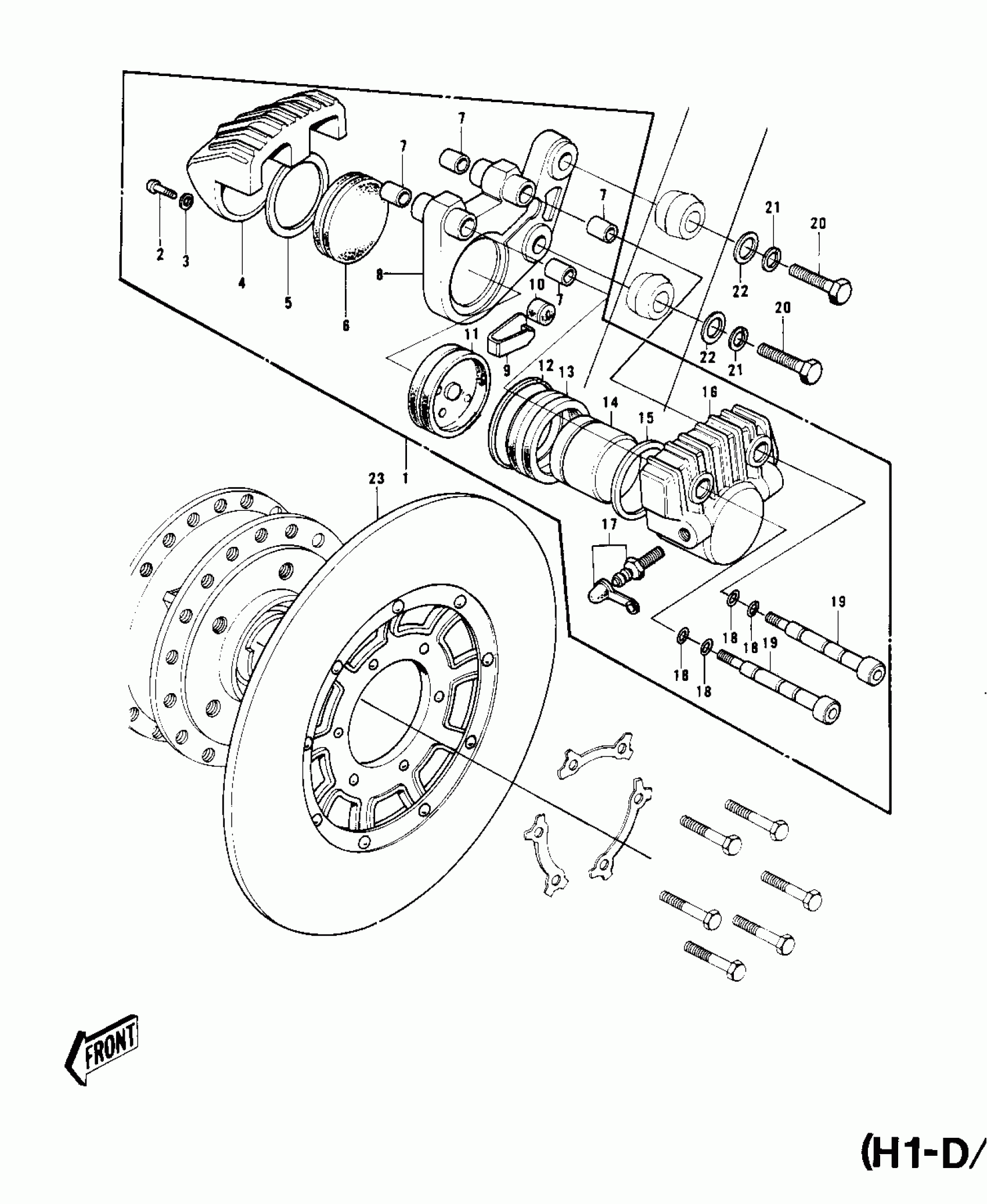

Kawasaki KH500-A8 FRONT BRAKE (H1-D/E/F) Diagram

#

Description
Price

1

CALIPER ASSY

43041-001

Unavailable

2

SCREW PAN HEAD 6X12

220B0612

Unavailable

3

WASHER SPRING 6MM

461F0600

$0.69

4

CALIPER B

43043-001

$87.99

5

RING-PAD B

43071-001

Unavailable

6

PAD B

43051-001

Unavailable

7

DUST SEAL-SHAFT

43052-001

Unavailable

8

HOLDER-CALIPER

43044-001

$140.42

9

STOPPER-PAD A

43046-001

Unavailable

10

BUSHING-RUBBER

43047-001

Unavailable

11

PAD A

43082-001

Unavailable

12

BAND-DUST SEAL

43058-001

$2.32

13

DUST SEAL-PISTON

43054-001

$4.64

14

PISTON-CALIPER

43048-001

$36.86

15

PACKING,PISTON SEAL

43049-001

$11.06

16

CALIPER A

43042-001

$209.08

17

BLEEDER SET

43085-001

$24.57

18

"0" RING,SHAFT

43053-001

Unavailable

19

SHAFT

43045-001

$35.22

20

BOLT-HEX HEAD,10X43

43070-001

$3.62

21

WASHER SPRING 10MM

461F1000

$0.67

22

WASHER-PLAIN,10MM

411B1000

$0.93

23

DISC PLATE-FRONT BRK

41080-001

$408.49

23

REPAIR SET-CALIPER

43073-002

$18.60
