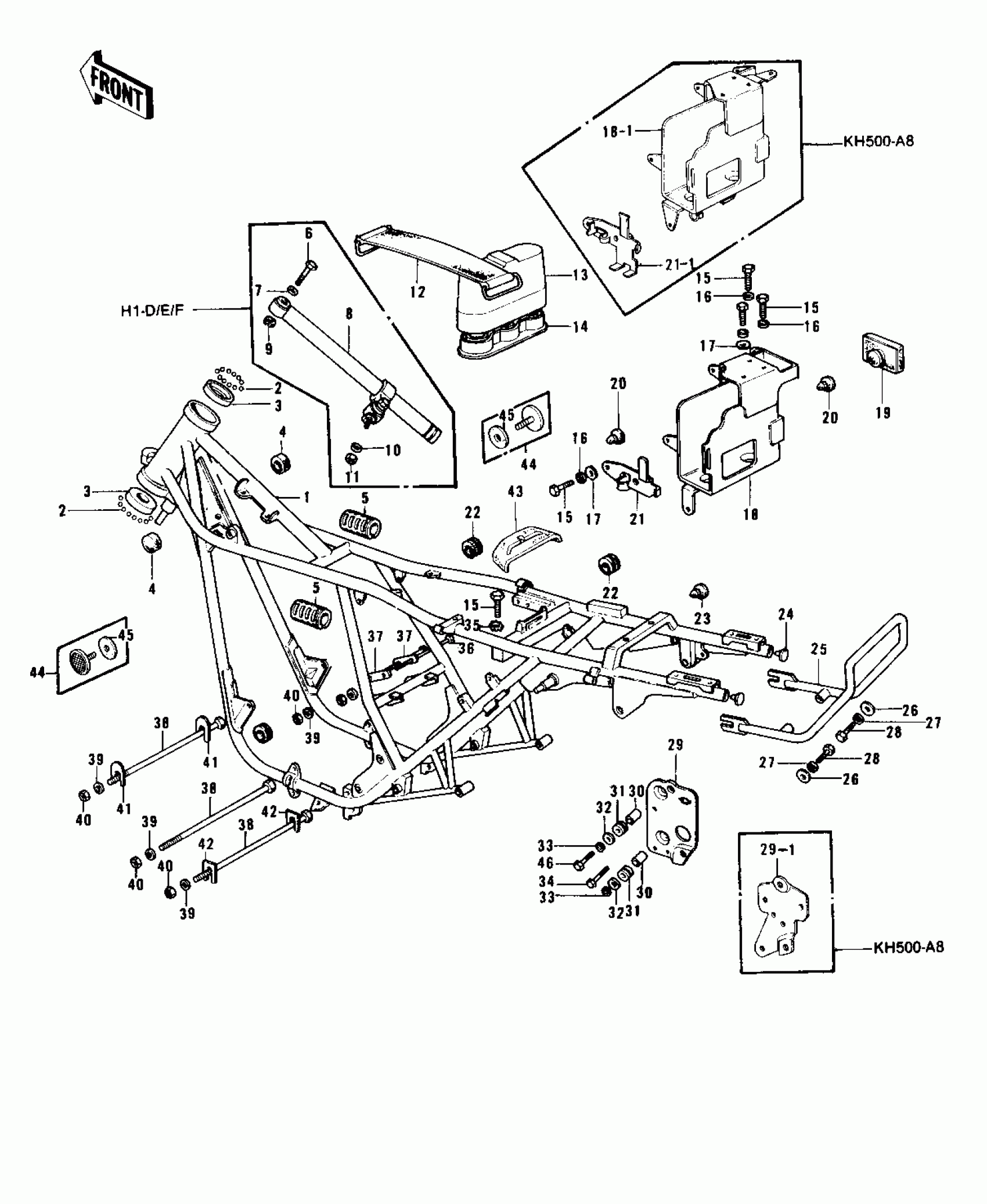

Kawasaki KH500-A8 FRAME/FRAME FITTINGS ('73-'75 D/E/F & '7 Diagram
#
1
FRAME
32002-062
Unavailable
1
FRAME
32002-085
Unavailable
1
FRAME
32002-114
Unavailable
1
FRAME
32002-127
Unavailable
1
FRAME ASSY
32002-131
$886.07
2
BALL-STEEL,1/4
600A0800
$0.62
3
RACE,STEERING STEM BEARING
92048-006
$11.61
4
DAMPER,FUEL TANK
92075-101
$6.22
5
DAMPER,FUEL TANK
92075-084
$10.04
6
BOLT HEX HEAD 8X60
110B0860
$4.79
7
WASHER PLAIN 8MM
411B0800
$0.93
8
OIL DAMPER-STEERING
46117-006
Unavailable
9
NUT,LOCK,8MM
92015-1124
$5.42
10
WASHER SPRING 8MM
461F0800
$0.40
11
NUT,8MM
311B0800
$0.67
12
BAND,SPARK PLUG COVER
32100-015
Unavailable
13
COVER-SPARK PLUG
32132-003
$6.23
14
HOLDER-SPARK PLUG COV
32132-002
$3.01
15
BOLT-UPSET,6X16
112G0616
$1.10
15
BOLT-UPSET,6X12
112G0612
$1.45
16
WASHER SPRING 6MM
461F0600
$0.69
17
WASHER PLAIN 6MM
411B0600
$2.84
18
CASE,BATTERY
32097-026
$46.53
18
CASE,BATTERY
32097-033
$47.88
18-1
CASE,BATTERY
32097-038
$71.21
19
DAMPER RUBBER,BATERY
92075-163
Unavailable
20
DAMPER,RUBBER
92075-078
$4.39
21
BAND,BATTERY
32100-016
Unavailable
21-1
BAND,BATERY CASE
32100-018
$6.79
22
GROMMET
92071-056
$4.26
23
GROMMET
92071-081
Unavailable
24
PLUG
32112-006
Unavailable
25
STAY,REAR FENDER
35032-023
Unavailable
26
WASHER PLAIN 8MM
411B0800
$0.93
27
WASHER SPRING 8MM
461F0800
$0.40
28
BOLT,8X20
115G0820
$5.14
29
WIRING HARNESS&BKT
26002-036
$17.63
29
BKT&HARNESS,WIRING
26002-044
$21.41
29-1
BKT,ELECT BASE
32129-007
$11.59
30
COLLAR,6.8X10X14.5
92027-156
$5.00
31
DAMPER
92075-167
$5.84
32
WASHER,6.5X20X1.6
92022-125
$1.40
33
WASHER SPRING 6MM
461F0600
$0.69
34
BOLT-UPSET
112G0630
$1.36
35
WASHER LOCK 6MM
464H0600
Unavailable
36
BOLT,HEX HEAD,10X125
92001-1248
Unavailable
37
PLATE REAR ENG HOLDER
32030-016
$7.16
38
BOLT-ENG MOUNT,10X274
92091-024
Unavailable
39
WASHER PLAIN 10MM
410B1000
$0.58
40
NUT,10MM
92015-1429
$6.88
41
SHIM-ENG FIT RR,0.5MM
92025-048
Unavailable
41
SHIM-ENG FIT RR,0.8MM
92025-049
Unavailable
41
SHIM-ENG FIT RR,1.0MM
92025-050
Unavailable
41
SHIM-ENG FIT RR,1.6MM
92025-051
Unavailable
41
SHIM-ENG FIT RR,2.0MM
92025-052
Unavailable
42
SHIM-ENG FIT FR,0.5MM
92025-053
Unavailable
42
SHIM-ENG FIT FR,0.8MM
92025-054
Unavailable
42
SHIM-ENG FIT FR,1.0MM
92025-055
Unavailable
42
SHIM-ENG FIT FR,1.6MM
92025-056
Unavailable
42
SHIM-ENG FIT FR,2.0MM
92025-057
Unavailable
42
SHIM-ENG FIT FR,2.3MM
92025-058
Unavailable
43
DAMPER RUBBER,FUEL TK
92075-278
Unavailable
44
REFLECTOR,REFLEX
28001-026
Unavailable
45
DAMPER,REFLECTOR
92094-011
$4.60
46
BOLT-UPSET
112G0630
$1.36
46
BOLT-UPSET
112G0625
$3.62
