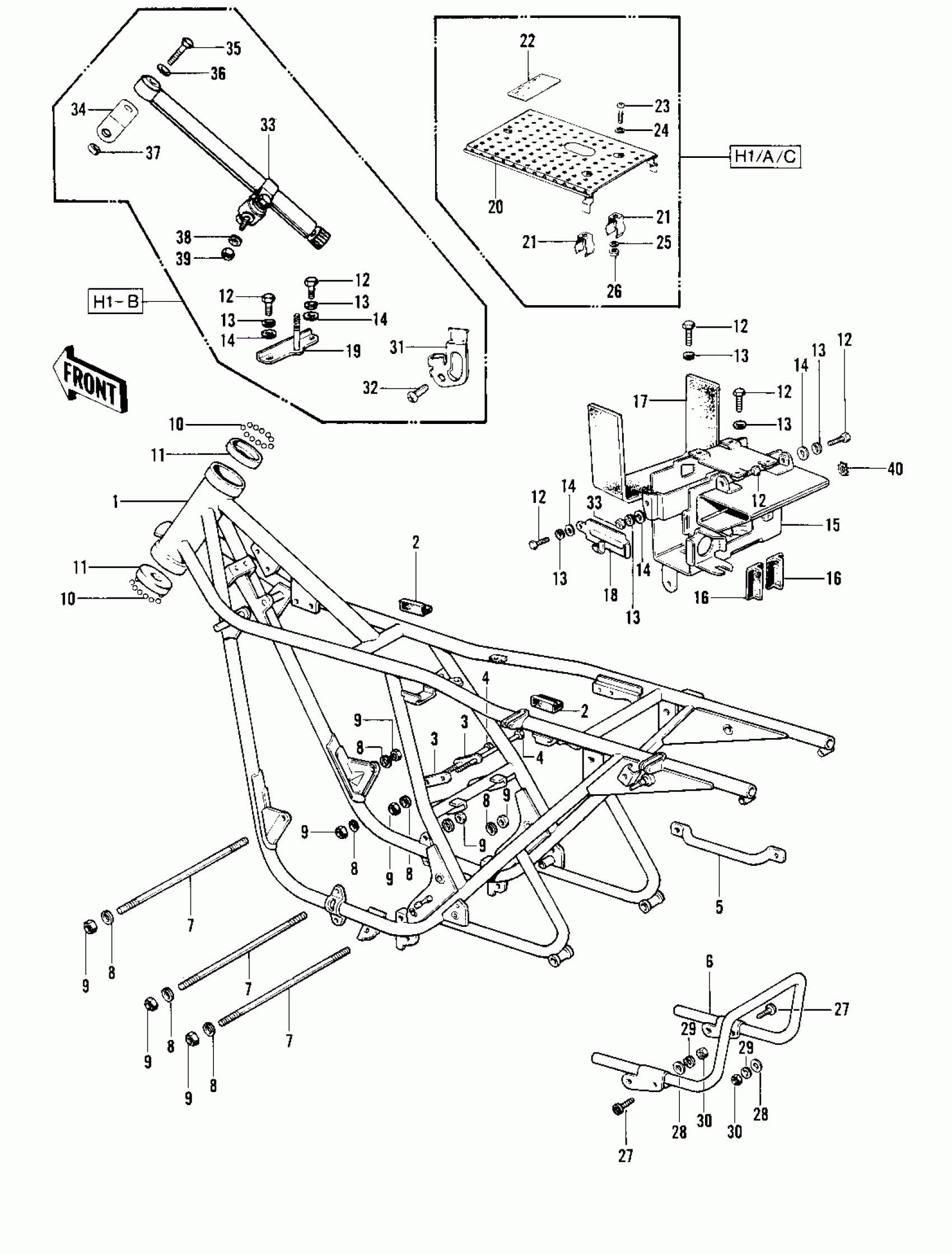

Kawasaki KH500-A8 FRAME/FRAME FITTINGS ('69-'72 H1/A/B/C) Diagram

#

Description
Price

1

FRAME

32002-021

Unavailable

1

FRAME

32002-052

Unavailable

1

FRAME

32002-049

Unavailable

2

PROTECTOR SIDE COVER

31082-005

$5.59

3

PLATE REAR ENG HOLDER

32030-016

$7.16

4

BOLT,HEX HEAD,10X125

92001-1248

Unavailable

5

GRIP FRAME

32109-009

Unavailable

6

STAY-REAR FENDER

35032-021

Unavailable

7

BOLT-ENG MOUNT,10X274

92091-024

Unavailable

8

WASHER SPRING 10MM

461F1000

$0.67

9

NUT-HEX-FINE,10MM

314B1000

$0.67

10

BALL-STEEL,1/4

600A0800

$0.62

11

RACE,STEERING STEM BEARING

92048-006

$11.61

12

BOLT-UPSET,6X16

112G0616

$1.10

12

BOLT-UPSET,6X16

112G0616

$1.10

13

WASHER SPRING 6MM

461F0600

$0.69

13

WASHER SPRING 6MM

461F0600

$0.69

14

WASHER PLAIN 6MM

411B0600

$2.84

14

WASHER PLAIN 6MM

411B0600

$2.84

15

BOX BATTERY - TOOL

32099-004

Unavailable

15

CASE-BATTERY&TOOL

32099-009

Unavailable

16

SEAT RECTIFIER RUBBER

32103-003

Unavailable

17

MAT BATTERY

32103-012

Unavailable

18

BAND BATTERY

32100-013

Unavailable

19

BRACKET-FUEL TANK

32051-005

Unavailable

20

PLATE-PUNCHED

32104-003

Unavailable

21

BRACKET

32095-003

Unavailable

22

LABLE

56020-010

Unavailable

23

SCREW PAN HEAD 6X10

220B0610

$3.14

24

WASHER PLAIN 6MM

411B0600

$2.84

25

WASHER SPRING 6MM

461F0600

$0.69

26

NUT 6MM

311B0600

$0.93

27

REFLECTOR-REFLEX,REAR

28012-007

Unavailable

28

WASHER-PLAIN,5MM

411B0500

$0.46

29

WASHER SPRING 5MM

461F0500

$0.69

30

NUT-HEX

311B0500

$0.47

31

BRACKET-TURN SIG RELY

32064-008

$15.14

32

BOLT-UPSET 6X14

112B0614

Unavailable

33

OIL DAMPER-STEERING

46117-006

Unavailable

34

BRACKET-STEERING DAMP

32056-012

Unavailable

35

BOLT,FLANGED,8X60

92001-1581

$5.14

36

WASHER PLAIN 8MM

411B0800

$0.93

37

NUT,LOCK,8MM

92015-1124

$5.42

38

WASHER SPRING 8MM

461F0800

$0.40

39

NUT,8MM

311B0800

$0.67

40

WASHER LOCK 6MM

464H0600

Unavailable
