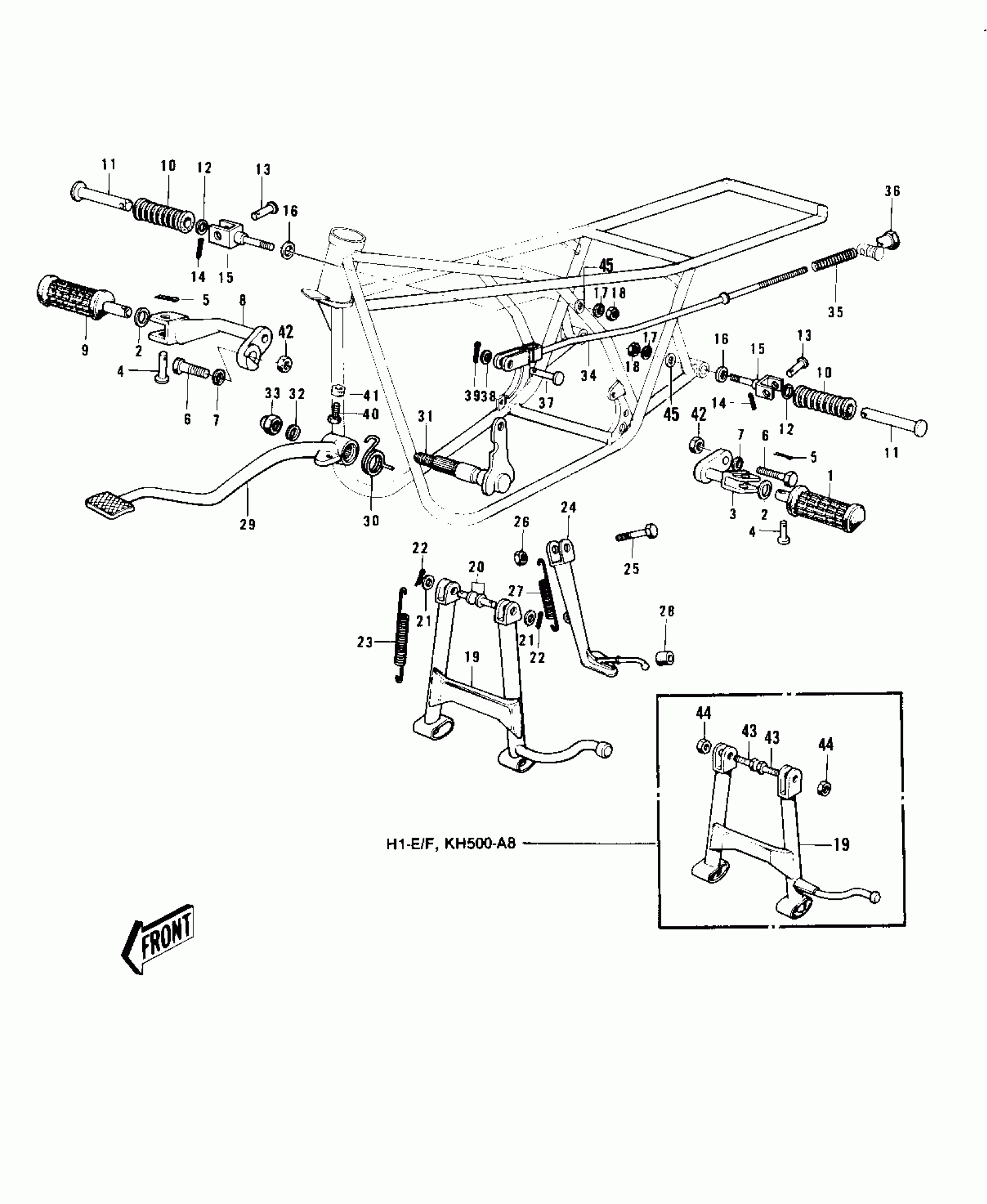

Kawasaki KH500-A8 FOOTRESTS/STANDS/BRAKE PEDAL ('73-'75 D/ Diagram
#
1
BAR-FOOTREST,L.H
34028-011
Unavailable
2
WASHER PL 22.5X36X2.3
92022-204
Unavailable
3
BRACKET,FOTRST BAR,LH
34003-038
$83.49
4
PIN,8X31
92043-080
$5.52
5
PIN-COTTER,2.5X15
550D2515
$0.47
6
BOLT HEX HEAD 12X40
113G1240
$6.80
6
BOLT,HEX HEAD,12X56
92003-165
Unavailable
7
WASHER-SPRING,12MM
461F1200
$0.96
8
BRACKET,FOTRST BAR,RH
34003-039
$106.03
9
BAR-FOOTREST,R.H
34028-012
$29.20
10
RUBBER,REAR FOOTREST
92076-024
$24.87
11
STEP,RR
34028-009
$26.11
12
WASHER-PLAIN (OPT)
92022-199
Unavailable
13
PIN,6X28
92043-1464
$8.10
14
PIN COTTER 2.0X15
550D2015
$1.04
14
PIN-COTTER,2.0X12
550D2012
$1.11
15
HOLDER-STEP,RR
34029-008
$28.84
15
BRACKET,REAR FOOTREST
34029-011
Unavailable
16
SPACER
92026-074
$4.03
16
WASHER CYL HEAD BOLT
92022-099
Unavailable
17
WASHER SPRING 10MM
461F1000
$0.67
18
NUT-HEX-FINE,10MM
314B1000
$0.67
19
STAND-MAIN
34011-034
Unavailable
19
STAND-MAIN
34011-034
Unavailable
20
PIN JOINT
92043-041
Unavailable
21
WASHER-PLAIN-SMALL,12MM
410B1200
$0.70
22
PIN-COTTER,2.5X25
550D2525
$1.26
23
SPRING-MAIN STAND
34023-010
Unavailable
23
SPRING,STAND,CNT
34023-016
$16.50
24
STAND-SIDE
34024-039
Unavailable
25
BOLT,SIDE STAND
92003-079
$11.79
26
NUT-HEX-FINE,10MM
314B1000
$0.67
27
SPRING MAIN STAND
34023-005
$10.92
28
DAMPER RUBB SIDE STND
92075-031
$10.21
29
PEDAL,BRAKE
43001-047
Unavailable
30
SPRING,BRAKE PEDAL
43005-022
Unavailable
31
SHAFT,BRAKE PEDAL
43004-011
Unavailable
32
WASHER PLAIN 8MM
411B0800
$0.93
33
NUT,CAP AND LOCK,8MM
92019-013
$14.88
34
ROD,BRAKE
43011-016
Unavailable
35
SPRING,BRAKE ROD
43012-001
$4.65
36
NUT,BRAKE ROD
92015-042
$6.22
37
PIN,6X17
92043-064
$4.69
38
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
39
PIN COTTER 2.0X15
550D2015
$1.04
40
BOLT-UPSET,6X20
112G0620
$2.12
41
NUT 6MM
311B0600
$0.93
42
NUT,12MM
314G1200A
$2.65
43
BOLT,HEX HEAD,12X32
92003-150
Unavailable
44
NUT-LOCK,12MM
92019-009
$7.29
45
WASHER PLAIN 10MM
410B1000
$0.58
