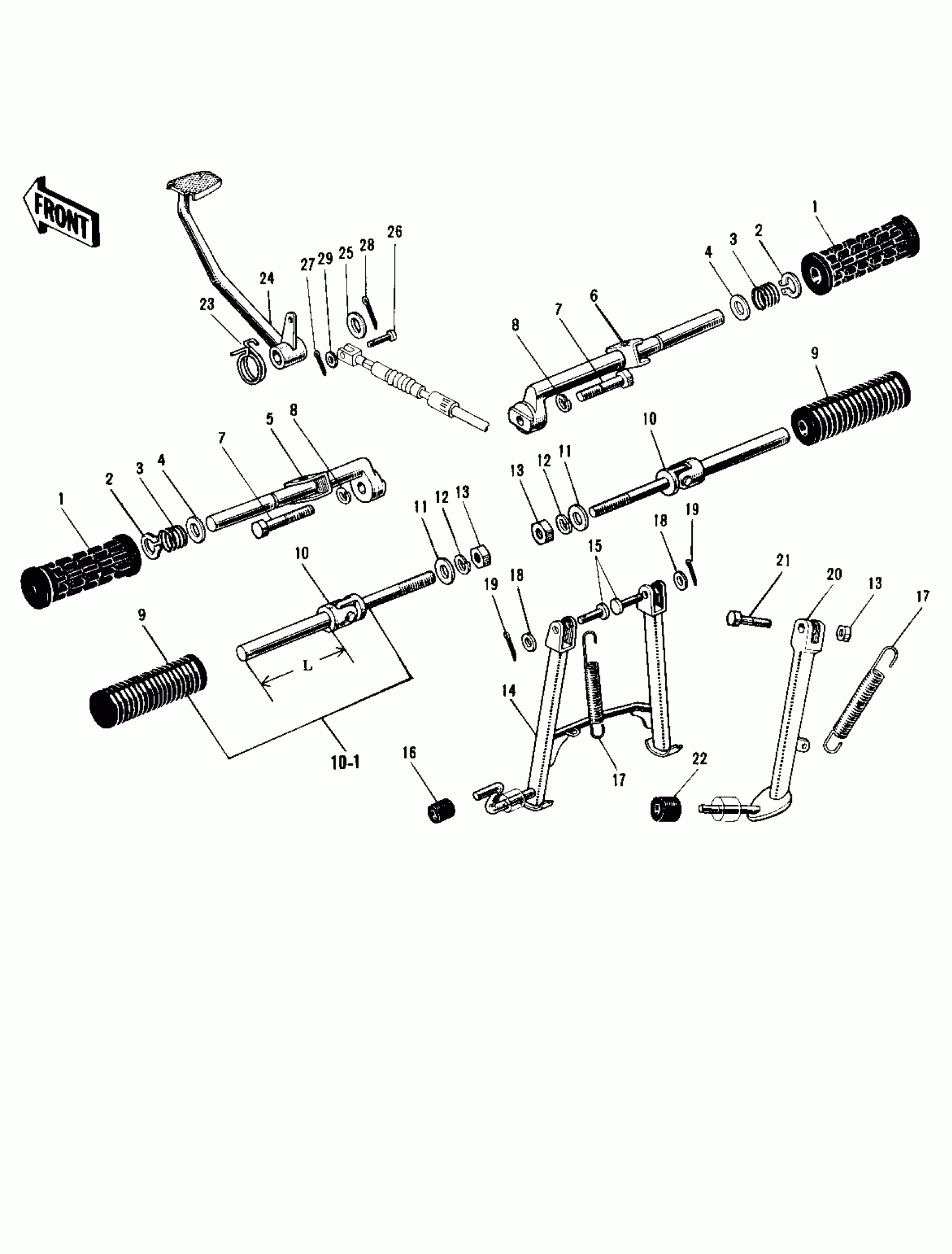

Kawasaki KH500-A8 FOOTRESTS/STANDS/BRAKE PEDAL ('69-'72 H1 Diagram

#

Description
Price

1

RUBBER FOOTREST

92076-015

Unavailable

2

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

3

SPRING FOOTREST PEG

34006-002

Unavailable

4

WASHER FOLDING PEG

92022-049

Unavailable

5

BAR FOOTREST L.H

34003-013

$77.95

6

BAR FOOTREST R.H

34003-015

Unavailable

7

BOLT,HEX HEAD,12X56

92003-165

Unavailable

8

WASHER-SPRING,12MM

461F1200

$0.96

9

RUBBER REAR FOOTREST

92076-009

$3.03

9

RUBBER REAR FOOTREST

92076-008

Unavailable

10

BAR REAR FOOTREST

34027-012

Unavailable

10

FOOTREST BAR REAR

34027-013

Unavailable

10-1

BAR SET-REAR FOOTREST

34030-001

Unavailable

11

WASHER PLAIN 10MM

410B1000

$0.58

12

WASHER SPRING 10MM

461F1000

$0.67

13

NUT-HEX-FINE,10MM

314B1000

$0.67

14

STAND-MAIN

34011-034

Unavailable

15

PIN JOINT

92043-041

Unavailable

16

DAMPER RUBB MAIN STND

92075-046

Unavailable

17

SPRING MAIN STAND

34023-005

$10.92

18

WASHER-PLAIN-SMALL,12MM

410B1200

$0.70

19

PIN-COTTER,2.5X25

550D2525

$1.26

20

STAND-SIDE

34024-016

$71.81

20

STAND-SIDE

34024-032

$67.28

21

BOLT-UPSET,10X30

112G1030

Unavailable

21

BOLT,SIDE STAND

92003-079

$11.79

22

DAMPER RUBB SIDE STND

92075-031

$10.21

23

SPRING BRAKE PEDAL

43005-011

Unavailable

24

PEDAL BRAKE

43001-027

Unavailable

25

WASHER BRAKE PEDAL

92022-085

$3.92

26

PIN R BRK CABLE JOINT

92043-034

Unavailable

27

PIN COTTER 2.0X15

550D2015

$1.04

28

PIN-COTTER,3.0X25

550D3025

$0.58

29

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31
