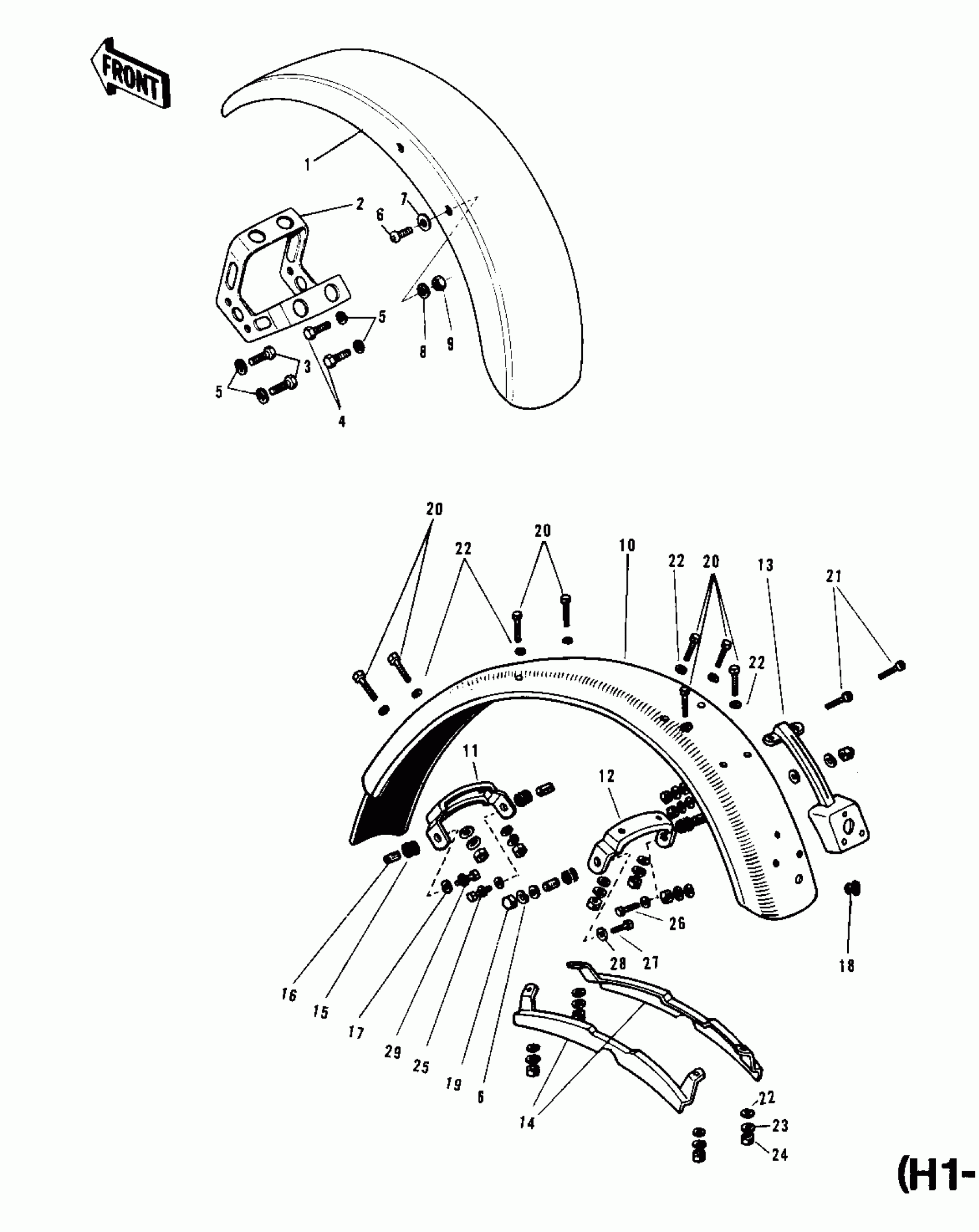

Kawasaki KH500-A8 FENDERS (H1-B) Diagram

#

Description
Price

1

FENDER-FR,P.C.ORANGE

35004-060-67

Unavailable

2

BRACE-FRONT FENDER

35009-018

$65.92

3

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

4

BOLT-SMALL-UPSET,8X14

115B0814

Unavailable

5

WASHER SPRING 8MM

461F0800

Unavailable

6

SCREW PAN HEAD 6X14

220E0614

Unavailable

7

WASHER,6.5X20X1.6,WHITE

92022-193

$4.21

8

WASHER PLAIN 6MM

411B0600

Unavailable

9

NUT,LOCK,6MM

92019-008

$3.12

10

FENDER-RR,P.C.ORANGE

35022-060-67

Unavailable

11

BRACKET REAR FENDER

35025-009

$21.69

12

BRACKET REAR FENDER

35025-010

$23.03

13

STAY-TAIL LAMP,P.C.O.

35031-004-67

$71.68

14

STAY-RR FENDER,P.C.O.

35034-007-67

$23.47

15

DAMPER RUBB TANK FRNT

92075-019

Unavailable

16

SPACER FUEL TANK MONT

51065-001

$3.10

17

WASHER,8X26X2.3

92022-1564

$3.29

18

PLUG RUBBER

92074-005

Unavailable

19

NUT FUEL TANK FRONT

92020-007

Unavailable

20

BOLT-UPSET,6X12

112G0612

Unavailable

21

SCREW PAN HEAD 6X12

220B0612

Unavailable

22

WASHER PLAIN 6MM

411B0600

Unavailable

23

WASHER SPRING 6MM

461F0600

Unavailable

24

NUT 6MM

311B0600

Unavailable

25

BOLT-SMALL-UPSET,8X22

115B0822

Unavailable

26

BOLT,8X55

92001-1386

Unavailable

26

BOLT,8X55

92001-1386

Unavailable

27

BOLT,10X45

92001-1182

Unavailable

27

BOLT,10X45

92001-1182

Unavailable

28

WASHER PLAIN 8MM

411B0800

Unavailable

29

WASHER SPRING 8MM

461F0800

Unavailable
