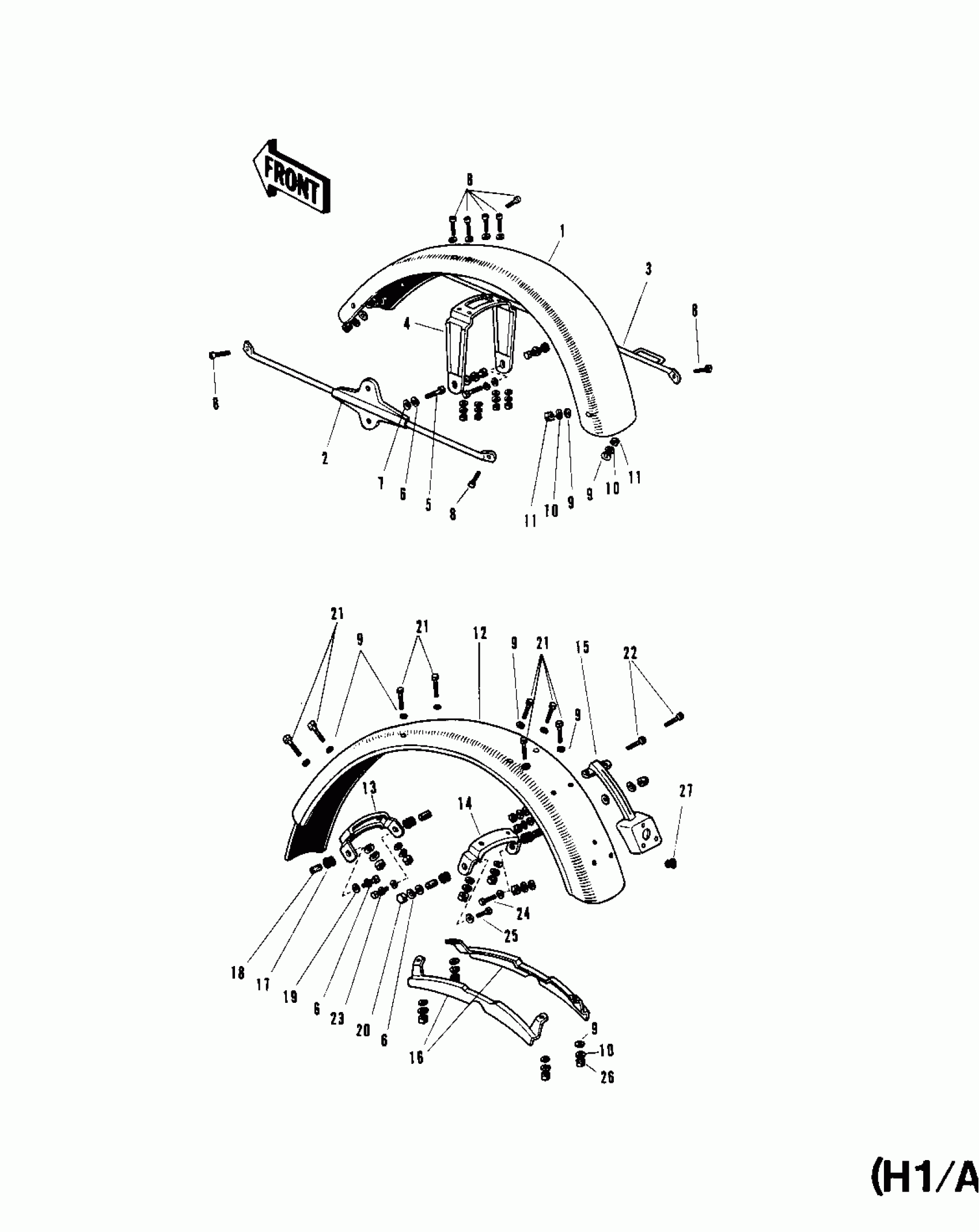

Kawasaki KH500-A8 FENDERS (H1/A/C) Diagram

#

Description
Price

1

FENDER-FR

35004-036

Unavailable

2

STAY FRONT FENDER L.H

35011-018

Unavailable

3

STAY FRONT FENDER R.H

35011-017

Unavailable

4

BRACE FRONT FENDER

35009-012

Unavailable

5

BOLT-SMALL-UPSET,8X14

115B0814

Unavailable

6

WASHER SPRING 8MM

461F0800

Unavailable

7

WASHER PLAIN 8MM

410B0800

Unavailable

8

SCREW PAN HEAD 6X12

220E0612

$3.51

9

WASHER PLAIN 6MM

411B0600

Unavailable

10

WASHER SPRING 6MM

461F0600

Unavailable

11

NUT 6MM

312B0600

Unavailable

12

FENDER-RR

35022-045

$140.57

13

BRACKET REAR FENDER

35025-009

$21.69

14

BRACKET REAR FENDER

35025-010

$23.03

15

STAY TAIL LAMP

35031-004

$23.46

16

SUPPORTER REAR FENDER

35034-007

Unavailable

17

DAMPER RUBB TANK FRNT

92075-019

Unavailable

18

SPACER FUEL TANK MONT

51065-001

$3.10

19

WASHER,8X26X2.3

92022-1564

$3.29

20

NUT FUEL TANK FRONT

92020-007

Unavailable

21

BOLT-UPSET,6X12

112G0612

Unavailable

22

SCREW PAN HEAD 6X12

220B0612

Unavailable

23

BOLT-SMALL-UPSET,8X22

115B0822

Unavailable

24

BOLT,10X45

92001-1182

Unavailable

24

BOLT,10X45

92001-1182

Unavailable

25

BOLT,8X55

92001-1386

Unavailable

25

BOLT,8X55

92001-1386

Unavailable

26

NUT 6MM

311B0600

Unavailable

27

PLUG RUBBER

92074-005

Unavailable
