Description

Price

1

COVER L.H ENGINE

14031-030

Unavailable

2

COVER,CHN CASE,BUFF

14026-024-80

Unavailable

2

COVER,CHN CASE,BUFF

14026-024-80

Unavailable

3

SCREW PAN HEAD 6X40

220B0640

Unavailable

4

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

5

OIL SEAL

92054-004

Unavailable

6

BUSH

92028-075

Unavailable

7

RING-O,12X1.5

92055-025

$4.69

8

SHAFT TACHOMETER GEAR

13226-004

Unavailable

9

PIN,DOWEL

92042-035

Unavailable

10

GEAR TACHOMETER

13224-005

Unavailable

11

BUSH

92028-074

$23.29

12

GEAR OIL PUMP

16085-011

$94.49

13

WASHER THRUST

92026-026

$7.95

14

SEAL-OIL,SB12205

92049-004

$9.58

15

GASKET R.H ENGINE COV

14046-014

$40.13

16

PLUG-OIL FILLER

16115-017

Unavailable

16

PLUG-OIL FILLER

16115-017

Unavailable

17

O RING,20MM

670B2020

$1.22

18

COVER-RH ENG,SILVER

14032-071-36

Unavailable

18

COVER,R.H.ENGINE

14032-1024-80

Unavailable

18

COVER,R.H.ENGINE

14032-1024-80

Unavailable

19

SEAL-OIL,SB16244

92049-002

$8.86

20

COVER,OIL PUMP,BUFF

14030-036-80

Unavailable

20

COVER,OIL PUMP,BUFF

14030-036-80

Unavailable

21

SCREW PAN HEAD 6X25

220B0625

$2.60

22

SCREW PAN HEAD 6X30

220B0630

$3.41

23

SCREW PAN HEAD 6X55

220B0655

$4.12

24

SCREW PAN HEAD 6X85

220B0685

$7.99

25

SCREW PAN HEAD 6X100

220B06100

Unavailable

26

GASKET,L.H ENG COVER

14045-022

Unavailable

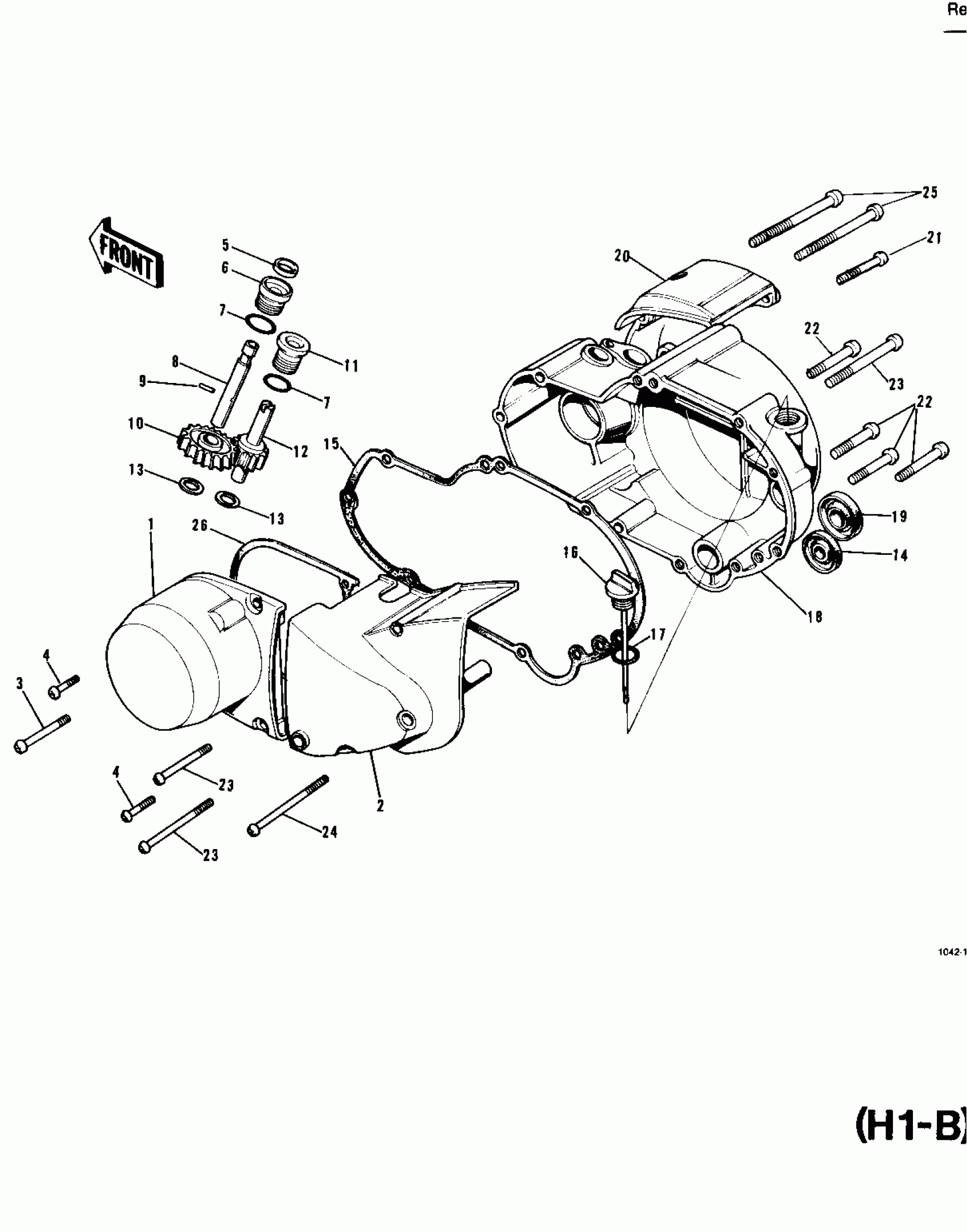

Kawasaki KH500-A8 ENGINE COVERS (H1-B) Diagram

COVER L.H ENGINE

COVER,CHN CASE,BUFF

COVER,CHN CASE,BUFF

SCREW PAN HEAD 6X40

SCREW-PAN-CROS,6X20,WHITE

OIL SEAL

BUSH

RING-O,12X1.5

SHAFT TACHOMETER GEAR

PIN,DOWEL

GEAR TACHOMETER

BUSH

GEAR OIL PUMP

WASHER THRUST

SEAL-OIL,SB12205

GASKET R.H ENGINE COV

PLUG-OIL FILLER

PLUG-OIL FILLER

O RING,20MM

COVER-RH ENG,SILVER

COVER,R.H.ENGINE

COVER,R.H.ENGINE

SEAL-OIL,SB16244

COVER,OIL PUMP,BUFF

COVER,OIL PUMP,BUFF

SCREW PAN HEAD 6X25

SCREW PAN HEAD 6X30

SCREW PAN HEAD 6X55

SCREW PAN HEAD 6X85

SCREW PAN HEAD 6X100

GASKET,L.H ENG COVER
