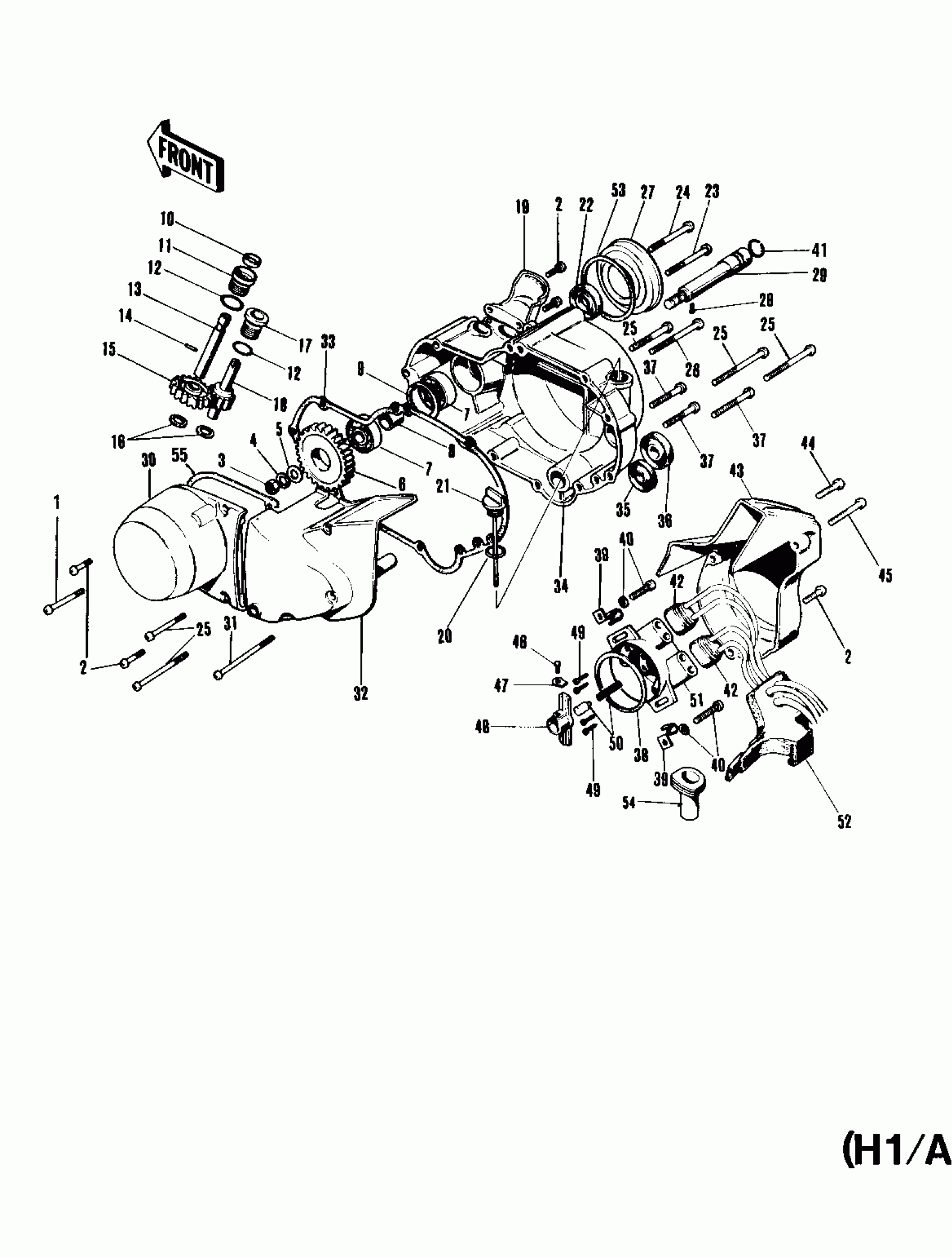

Kawasaki KH500-A8 ENGINE COVERS (H1/A/C) Diagram

#

Description
Price

1

SCREW PAN HEAD 6X40

220B0640

Unavailable

2

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

3

NUT 6MM

311B0600

$0.93

4

WASHER SPRING 6MM

461F0600

$0.69

5

WASHER,6.5X16X2

92022-1565

$3.92

6

GEAR DISTRIBUTOR

21147-001

$6.25

7

BEARING-BALL,6001C3ML01

92045-1235

$16.25

8

COLLAR

92027-051

Unavailable

9

CIRCLIP-TYPE-C,28MM

481J2800

$1.50

10

OIL SEAL

92054-004

Unavailable

11

BUSH

92028-075

Unavailable

12

RING-O,12X1.5

92055-025

$4.69

13

SHAFT TACHOMETER GEAR

13226-004

Unavailable

14

PIN,DOWEL

92042-035

Unavailable

15

GEAR TACHOMETER

13224-005

Unavailable

16

WASHER THRUST

92026-026

$7.95

17

BUSH

92028-074

$23.29

18

GEAR OIL PUMP

16085-011

$94.49

19

COVER OIL PUMP LEVER

14030-024

Unavailable

20

O RING,20MM

670B2020

$1.22

21

PLUG-OIL FILLER

16115-017

Unavailable

21

PLUG-OIL FILLER

16115-017

Unavailable

22

OIL SEAL TB15256

92049-008

Unavailable

23

SCREW PAN HEAD 6X25

220B0625

$2.60

24

SCREW PAN HEAD 6X80

220B0680

$7.20

25

SCREW PAN HEAD 6X55

220B0655

$4.12

26

SCREW-PAN-CROS,6X60

220B0660

$1.79

27

INSULATOR-DISBRIBUTOR

21144-002

$10.12

28

PIN DOWEL 3X8

551A0308

$0.56

29

SHAFT DISTRIBUTOR

21143-001

$43.02

29

SHAFT-DISBRIBUTOR

21143-002

$59.60

30

COVER L.H ENGINE

14031-030

Unavailable

31

SCREW PAN HEAD 6X85

220B0685

$7.99

32

COVER,CHN CASE,BUFF

14026-024-80

Unavailable

32

COVER,CHN CASE,BUFF

14026-024-80

Unavailable

33

GASKET R.H ENGINE COV

14046-014

$40.13

34

COVER R.H ENGINE

14032-042

Unavailable

35

SEAL-OIL,SB12205

92049-004

$9.58

36

SEAL-OIL,SB16244

92049-002

$8.86

37

SCREW PAN HEAD 6X30

220B0630

$3.41

38

GASKET

92065-048

Unavailable

39

CLAMP DISTRIBUTOR

21149-001

$8.06

40

SCREW-PAN-WS-CROS

223B0410

$0.67

41

CIRCLIP

92036-016

$3.64

42

GROMMET DISTRIBUTOR

92071-031

Unavailable

43

COVER OIL PUMP

14030-025

Unavailable

44

SCREW PAN HEAD 6X45

220B0645

$1.71

45

SCREW PAN HEAD 6X100

220B06100

Unavailable

46

SCREW 4X16

92011-016

$3.71

47

WASHER LOCK 4MM

92024-013

$1.91

48

ROTOR-DISTRIBUTOR

21142-003

$49.84

48

ROTOR-DISTRIBUTOR

21142-002

Unavailable

49

SCREW CORD FIT

92100-001

$4.23

50

BRUSH CARBON

21088-008

Unavailable

51

CAP DISTRIBUTOR

21141-001

Unavailable

52

GROMMET TENSION CORD

92071-040

Unavailable

52

GROMMET TENSION CORD

92071-043

Unavailable

53

GASKET

92065-072

Unavailable

54

GROMMET DRAIN

16116-005

$13.01

5

GASKET,L.H ENG COVER

14045-022

Unavailable
