1976 Kawasaki KH500-A8 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1976 Kawasaki KH500-A8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

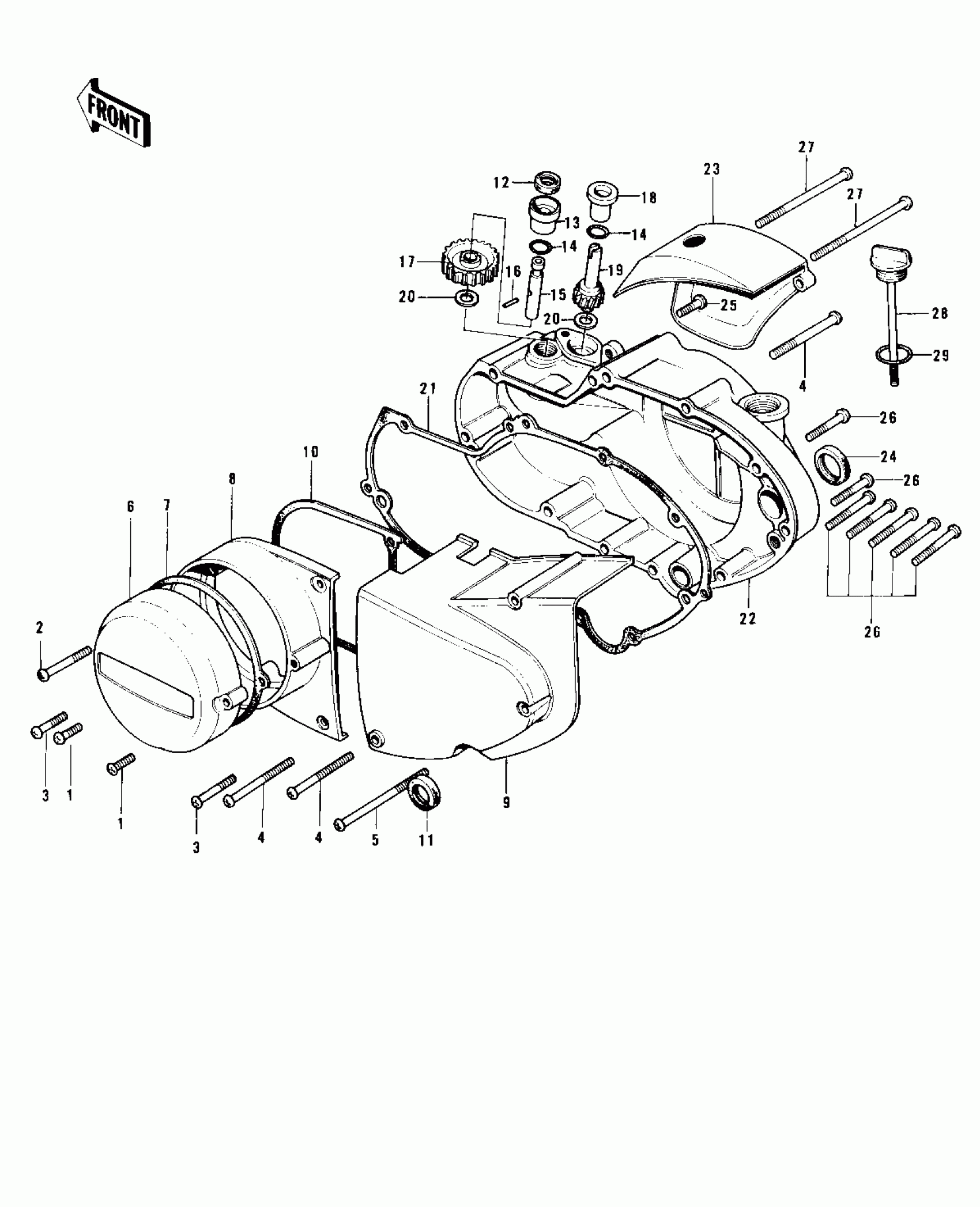

1976 Kawasaki KH500-A8 Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SCREW-PAN-CROS,6X20,WHITE

220B0620

1
Out of stock

2

SCREW PAN HEAD 6X45

220B0645

1
Out of stock

3

SCREW PAN HEAD 6X35

220B0635

1
Out of stock

4

SCREW PAN HEAD 6X55

220B0655

1
Out of stock

5

SCREW PAN HEAD 6X85

220B0685

1
Out of stock

6

CAP,BREAKER POINT,BUF

14027-016-80

1
Out of stock

7

GASKET-POINT CAP

14050-005

1
Out of stock

7

GASKET,POINT CAP

14050-008

1
Out of stock

8

COVER,L.H ENGINE,BUFF

14031-049-80

1
Out of stock

8

COVER,L.H ENGINE,BUFF

14031-060-80

1
Out of stock

9

COVER,CHN CASE,BUFF

14026-024-80

1
Out of stock

9

COVER,FRONT CHN,BUFF

14026-034-80

1
Out of stock

10

GASKET,L.H ENG COVER

14045-022

1
Out of stock

11

SEAL-OIL,SB12205

92049-004

1
Out of stock

12

OIL SEAL

92054-004

1
Out of stock

13

BUSH

92028-075

1
Out of stock

14

RING-O,12X1.5

92055-025

1
Out of stock

15

SHAFT TACHOMETER GEAR

13226-004

1
Out of stock

16

PIN,DOWEL

92042-035

1
Out of stock

17

GEAR TACHOMETER

13224-005

1
Out of stock

18

BUSH

92028-074

1
Out of stock

19

GEAR OIL PUMP

16085-011

1
Out of stock

20

WASHER THRUST

92026-026

1
Out of stock

21

GASKET R.H ENGINE COV

14046-014

1
Out of stock

22

COVER,R.H.ENGINE

14032-1024-80

1
Out of stock

22

COVER,R.H.ENGINE

14032-1024-80

1
Out of stock

23

COVER,OIL PUMP,BUFF

14030-036-80

1
Out of stock

24

SEAL-OIL,SB16244

92049-002

1
Out of stock

25

SCREW PAN HEAD 6X25

220B0625

1
Out of stock

26

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

27

SCREW PAN HEAD 6X100

220B06100

1
Out of stock

28

PLUG-OIL FILLER

16115-017

1
Out of stock

28

PLUG-OIL FILLER

16115-017

1
Out of stock

29

O RING,20MM

670B2020

1
Out of stock
