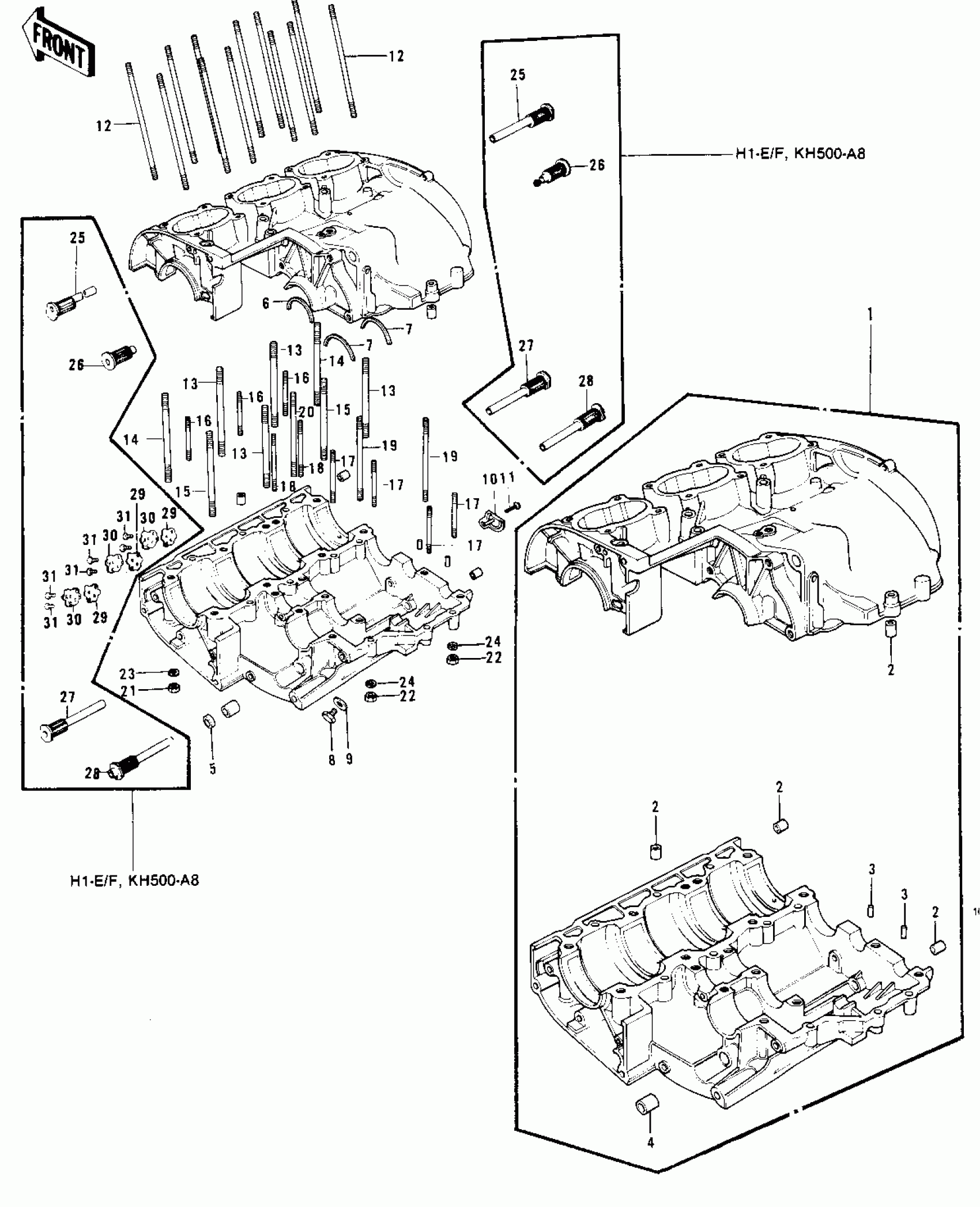

Kawasaki KH500-A8 CRANKCASE ('73-'75 D/E/F & '76 A8) Diagram

#

Description
Price

1

CRANKCASE SET

14001-030

Unavailable

1

CRANKCASE SET

14001-5004

Unavailable

1

CRANKCASE ASSY

14001-078

Unavailable

2

PIN,DOWEL,10X14

92043-1037

$0.66

3

PIN,DOWEL,6X16

92042-016

$3.81

4

BUSH CHANGE PEDAL SHT

92028-071

$105.17

5

SEAL-OIL,SB12205

92049-004

$7.63

6

RING-POSITION,T=1.98

14013-1004

$3.78

7

RING-POSITION

14013-004

$7.76

8

PLUG,DRAIN,10X12

92067-001

$3.36

9

GASKET,10.5X16X1

92065-058

$3.03

10

RECEIVER OIL

14015-001

Unavailable

11

SCREW-CSK-CROS,6X16

221B0616

$0.54

12

STUD 8X75

172G0875

Unavailable

13

STUD 10X60

172G1060

Unavailable

14

STUD 10X75

172G1075

Unavailable

15

STUD 10X90

172G1090

$8.49

16

BOLT-STUD,6X22

172G0622

Unavailable

16

BOLT-STUD,6X20

172G0620

$1.00

17

STUD 6X35

172G0635

Unavailable

18

STUD 6X50

172G0650

Unavailable

19

STUD 6X75

172G0675

Unavailable

20

STUD 6X85

172G0685

Unavailable

21

NUT,10MM

317B1000

Unavailable

22

NUT 6MM

311B0600

Unavailable

23

WASHER SPRING 10MM

461F1000

Unavailable

24

WASHER SPRING 6MM

461F0600

Unavailable

25

ABSORBER,FRONT UPPER

14017-012

Unavailable

26

ABSORBER,REAR UPPER

14017-013

Unavailable

27

ABSORBER,FRONT LOWER

14017-010

Unavailable

28

ABSORBER,REAR LOWER

14017-011

Unavailable

29

GASKET,CHECK VALVE

14051-003

Unavailable

30

VALVE,CHECK

16128-008

Unavailable

31

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40
