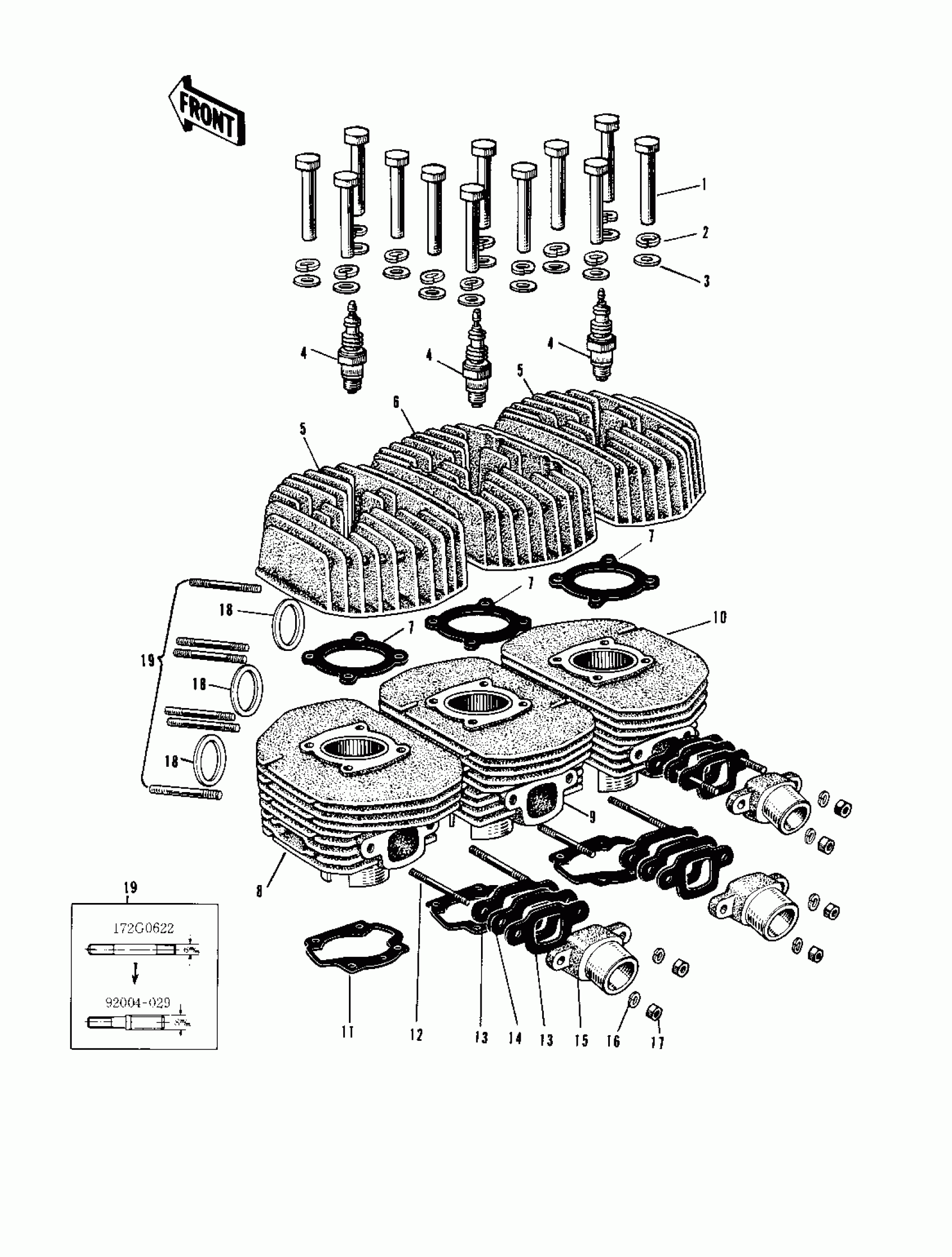

Kawasaki KH500-A8 CYLINDER HEADS/CYLINDERS ('69-'72 H1/A/B Diagram

#

Description
Price

1

NUT 8MM

92015-020

Unavailable

2

WASHER-SPRING,12MM

461F1200

$0.96

3

WASHER,12.5X22X1.2

92022-072

$3.92

4

UNAVAILABLE IN PRICE BOOK

92070-016

$4.63

4

SPARK PLUG B9HS1

B9HS1

$4.22

5

CYLINDER HEAD,L.H&R.H

11001-064-80

Unavailable

5

CYLINDER HEAD,L.H&R.H

11001-098-2H

Unavailable

6

CYLINDER HEAD,CENTER

11001-065

Unavailable

6

CYLINDER HEAD,CENTER

11001-099-2H

Unavailable

7

GASKET-CYLINDER HEAD

11004-048

Unavailable

8

CYLINDER

11005-050

Unavailable

9

CYLINDER

11005-051

Unavailable

10

CYLINDER

11005-052

Unavailable

11

GASKET CYLINDER BASE

11009-019

Unavailable

12

BOLT-STUD,8X20

172G0820

$2.12

13

GASKET AIR INLET

16062-011

$7.69

14

INSULATOR HEAT

16061-010

Unavailable

15

INLET PIPE

16060-009

$65.58

16

WASHER SPRING 8MM

461F0800

$0.40

17

NUT,8MM

311B0800

$0.67

18

GASKET EXHAUST PIPE

18067-008

$18.05

19

BOLT-STUD,6X22

172G0622

Unavailable

19

STUD

92004-029

Unavailable
