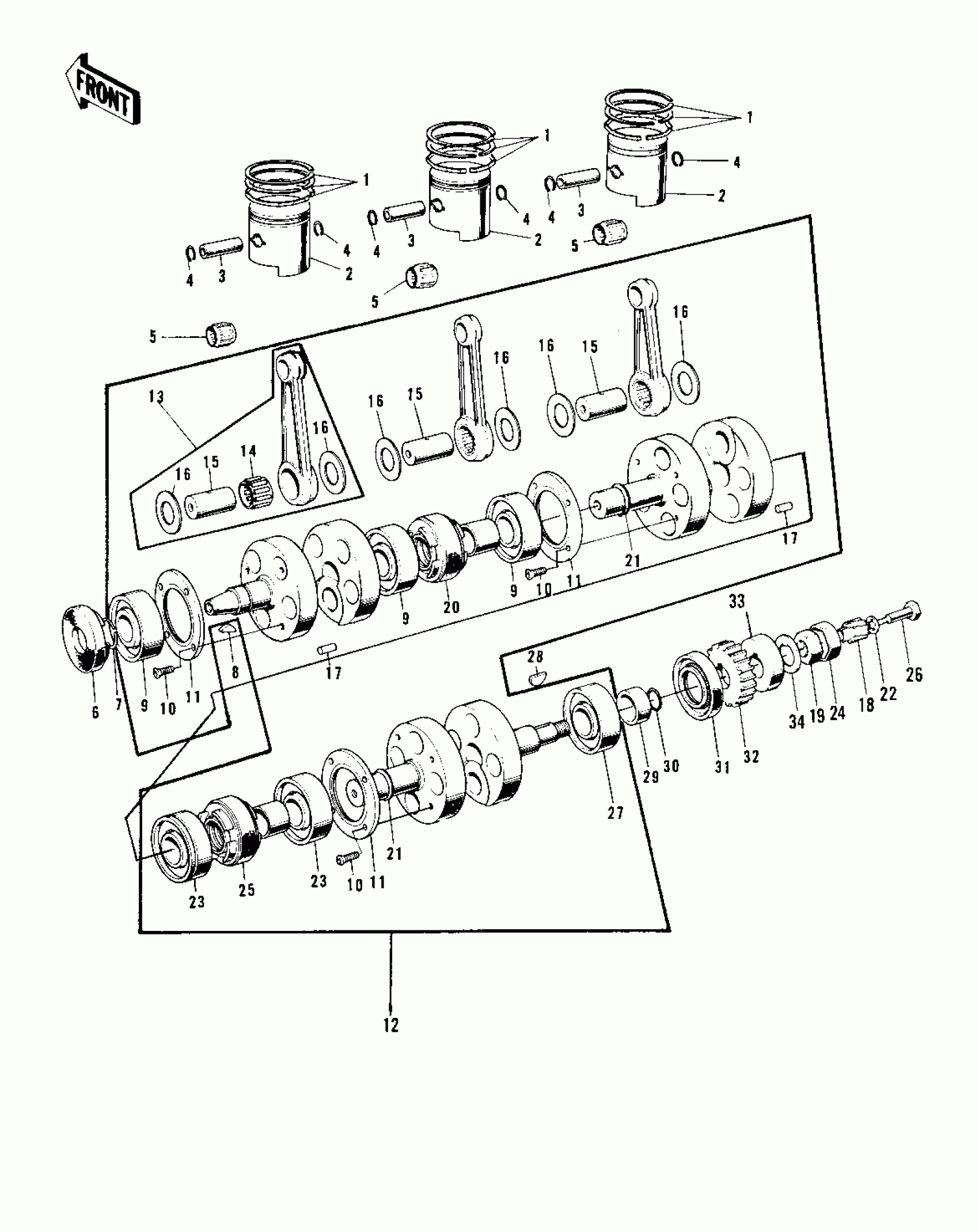

Kawasaki KH500-A8 CRANKSHAFT/PISTONS ('73-'75 D/E/F & '76 Diagram
#
Description
Price
1
RING SET,STD
13008-041
Unavailable
1
RING SET,0.020" O.S
13025-044
Unavailable
1
RING SET,0.040" O.S
13024-048
Unavailable
2
PISTON STD
13001-031
Unavailable
2
PISTON 0.020' O.S
13029-031
Unavailable
2
PISTON 0.040' O.S
13027-031
Unavailable
3
PIN-PISTON
13002-010
Unavailable
4
CIRCLIP PISTON PIN
92036-004
$0.65
5
BEARING-NEEDLE
92046-1038
Unavailable
6
OIL SEAL,TC255210
92050-051
Unavailable
7
CIRCLIP
92036-013
Unavailable
8
KEY,WOODRUFF
92038-001
$4.96
9
BEARING-BALL,#6205C3
601B6205
$19.57
10
SCREW CNTRSNK HD 5X10
92012-001
$1.51
11
OIL RECEIVER,CRANKSFT
13045-010
Unavailable
12
CRANK&CONROD ASSY
13031-049
Unavailable
13
CONNECTING ROD SET
13044-034
Unavailable
14
NEEDLE BEARING BG END
13034-010
$34.84
15
CRANK PIN
13035-017
Unavailable
16
WASHER SIDE
92026-024
$29.22
17
ROLLER,5X12
610A0512
$4.78
18
PINION OIL PUMP
16084-010
$41.07
19
NUT,18MM
92015-019
$7.22
20
OIL SEAL,Y325222.5
92054-017
Unavailable
21
SPACER
92026-066
$3.21
22
WASHER LOCK 6MM
463H0600
Unavailable
23
BALL BEARING 6305N
92045-020
Unavailable
24
WASHER LOCK
92024-021
$13.34
25
OIL SEAL,Y326219
92054-018
Unavailable
26
BOLT OIL PUMP PINION
92001-060
$9.77
27
BEARING-BALL,#6305C3
601B6305
$25.78
28
WOODRUFF KEY
510A5200
$2.82
29
COLLAR CRANK OIL SEAL
92027-031
$31.08
30
"0" RING,22MM
92055-018
$6.02
31
OIL SEAL,TC326210
92050-052
Unavailable
32
PINION-PRIMARY
13121-013
Unavailable
33
COLLAR
92027-091
$8.15
34
WASHER LOCK 18MM
92024-015
Unavailable
