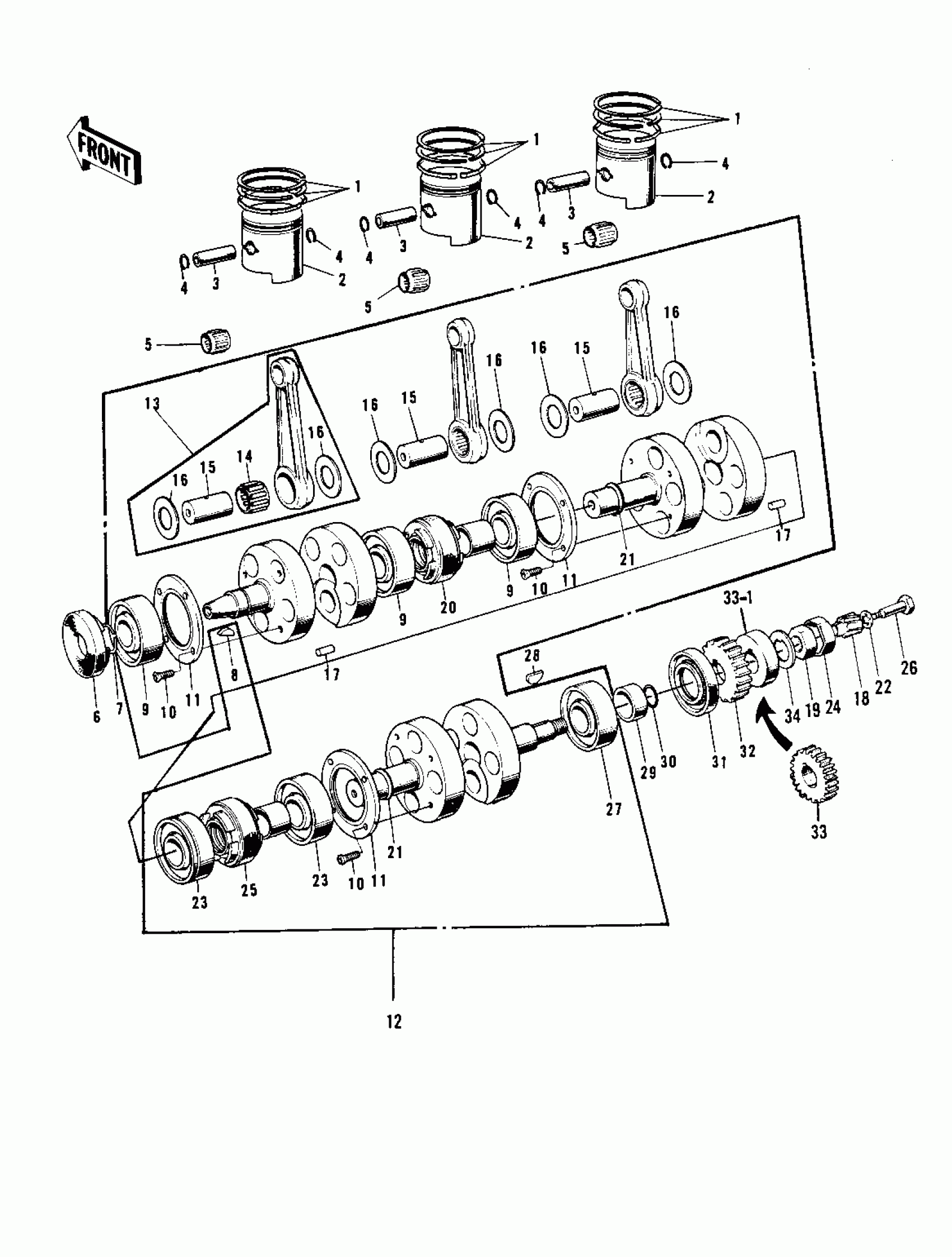

Kawasaki KH500-A8 CRANKSHAFT/PISTONS ('69-72 H1/A/B/C) Diagram

#

Description
Price

1

RING SET,STD

13008-041

Unavailable

1

RING SET,0.020" O.S

13025-044

Unavailable

1

RING SET,0.040" O.S

13024-048

Unavailable

2

PISTON STD

13001-031

Unavailable

2

PISTON 0.020' O.S

13029-031

Unavailable

2

PISTON 0.040' O.S

13027-031

Unavailable

3

PIN-PISTON

13002-010

Unavailable

4

CIRCLIP PISTON PIN

92036-004

$0.65

5

BEARING-NEEDLE

92046-1038

Unavailable

6

OIL SEAL,TC255210

92050-051

Unavailable

7

CIRCLIP

92036-013

Unavailable

8

KEY,WOODRUFF

92038-001

$4.96

9

BEARING-BALL,#6205C3

601B6205

$19.57

10

SCREW CNTRSNK HD 5X10

92012-001

$1.51

11

OIL RECEIVER,CRANKSFT

13045-010

Unavailable

12

CRANK&CONROD ASSY

13031-049

Unavailable

13

CONNECTING ROD SET

13044-034

Unavailable

14

NEEDLE BEARING BG END

13034-010

$34.84

15

CRANK PIN

13035-017

Unavailable

16

WASHER SIDE

92026-024

$29.22

17

ROLLER,5X12

610A0512

$4.78

18

PINION OIL PUMP

16084-010

$41.07

19

NUT,18MM

92015-019

$7.22

20

OIL SEAL,Y325222.5

92054-017

Unavailable

21

SPACER

92026-066

$3.21

22

WASHER LOCK 6MM

463H0600

Unavailable

23

BALL BEARING 6305N

92045-020

Unavailable

24

WASHER LOCK

92024-021

$13.34

25

OIL SEAL,Y326219

92054-018

Unavailable

26

BOLT OIL PUMP PINION

92001-060

$9.77

27

BEARING-BALL,#6305C3

601B6305

$25.78

28

WOODRUFF KEY

510A5200

$2.82

29

COLLAR CRANK OIL SEAL

92027-031

$31.08

30

"0" RING,22MM

92055-018

$6.02

31

OIL SEAL,TC326210

92050-052

Unavailable

32

PINION-PRIMARY

13121-013

Unavailable

33

PINION DISTRIBUTOR

21146-001

$57.30

33-1

COLLAR

92027-091

$8.15

34

WASHER LOCK 18MM

92024-015

Unavailable
