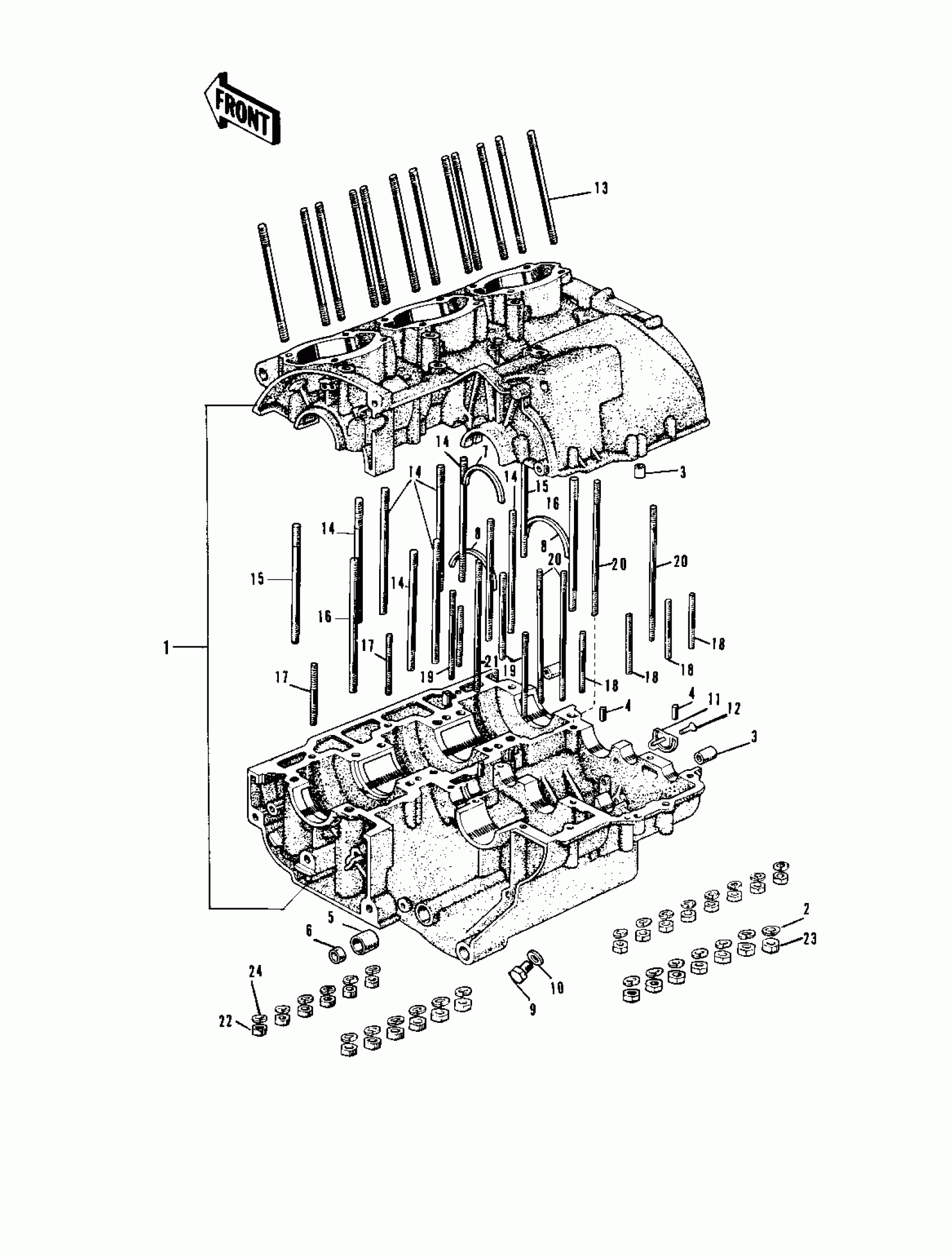

Kawasaki KH500-A8 CRANKCASE ('69-'72 H1/A/B/C) Diagram

#

Description
Price

1

CRANKCASE SET

14001-030

Unavailable

2

WASHER SPRING 6MM

461F0600

$0.69

3

PIN,DOWEL,10X14

92043-1037

$0.74

4

PIN,DOWEL,6X16

92042-016

$5.00

5

BUSH CHANGE PEDAL SHT

92028-071

$103.17

6

SEAL-OIL,SB12205

92049-004

$9.58

7

RING-POSITION,T=1.98

14013-1004

$4.96

8

RING-POSITION

14013-004

$10.19

9

PLUG,DRAIN,10X12

92067-001

$4.41

10

GASKET,10.5X16X1

92065-058

$3.96

11

RECEIVER OIL

14015-001

Unavailable

12

SCREW-CSK-CROS,6X16

221B0616

$0.59

13

STUD 8X75

172G0875

$7.08

14

STUD 10X60

172G1060

Unavailable

15

STUD 10X75

172G1075

Unavailable

16

STUD 10X90

172G1090

$8.76

17

BOLT-STUD,6X20

172G0620

$1.31

17

BOLT-STUD,6X22

172G0622

Unavailable

18

STUD 6X35

172G0635

Unavailable

19

STUD 6X50

172G0650

Unavailable

20

STUD 6X75

172G0675

Unavailable

21

STUD 6X85

172G0685

Unavailable

22

NUT,10MM

317B1000

$0.58

23

NUT 6MM

311B0600

$0.93

24

WASHER SPRING 10MM

461F1000

$0.67
