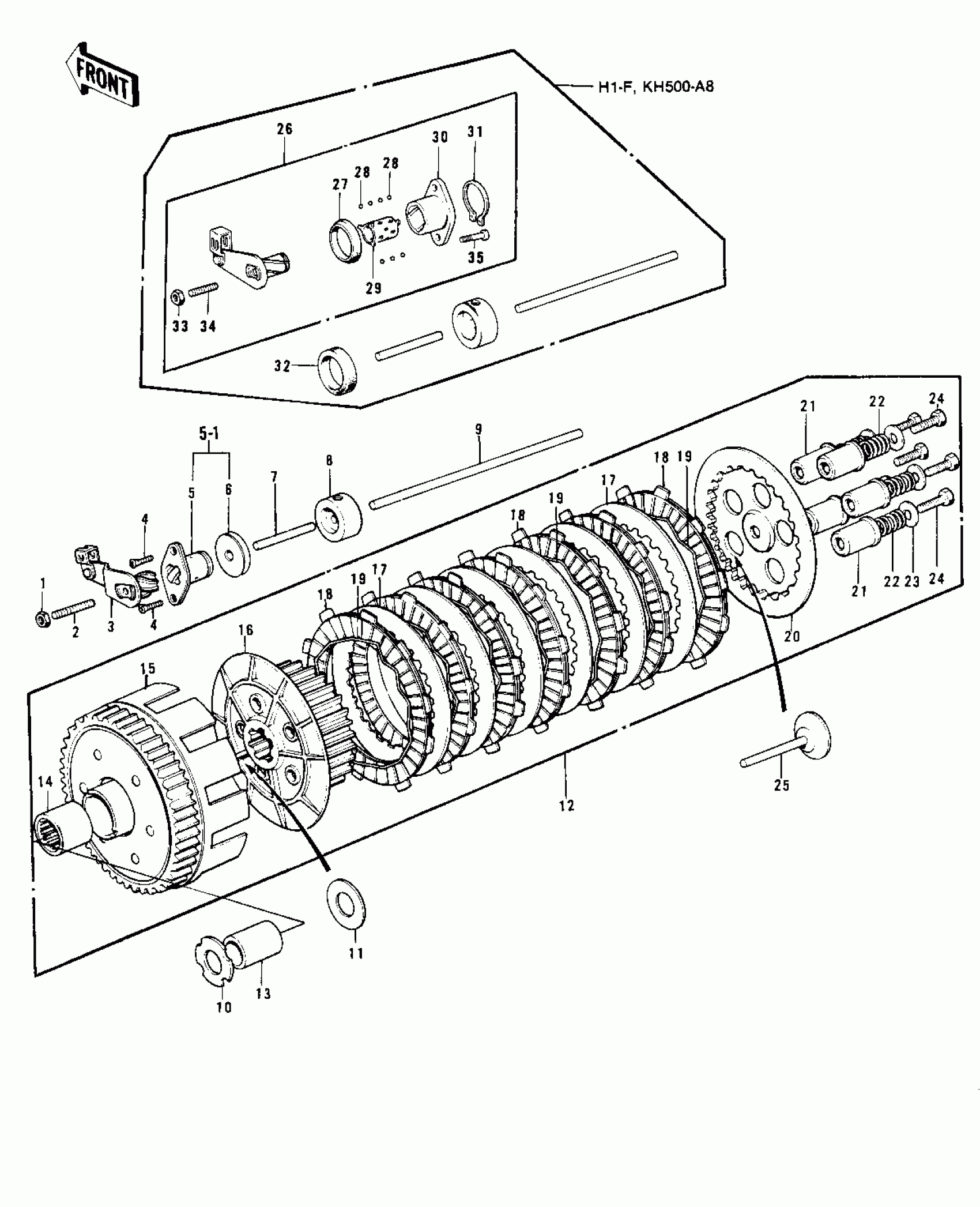

Kawasaki KH500-A8 CLUTCH ('73-'75 D/E/F & '76 A8) Diagram
#
1
NUT 6MM
311B0600
$0.93
2
SCREW SLOTTED
291Z0625
Unavailable
3
INNER,CLUTCH RELEASE
13102-017
Unavailable
4
SCREW-CSK-CROS,6X16
221B0616
$0.59
5
OUTER,CLUTCH RELEASE
13118-008
Unavailable
5-1
RELEASE ASSY,CLUTCH
13231-010
Unavailable
6
OIL SEAL SC7317
92050-025
Unavailable
7
ROD CLUTCH PUSH SHORT
13116-010
Unavailable
8
BUSH CLUTCH PUSH ROD
92028-070
$26.97
9
ROD CLUTCH PUSH LONG
13116-009
Unavailable
10
WASHER THRUST
92022-119
Unavailable
11
SPACER,25.5X47X2.5
92026-022
$9.91
12
CLUTCH-ASSY
13081-071
Unavailable
12
CLUTCH-ASSY
13081-071
Unavailable
13
BUSHING 25X30X34L
92028-081
Unavailable
14
BEARING NEEDLE
92046-004
Unavailable
15
HOUSING CLUTCH
13095-018
Unavailable
16
HUB-CLUTCH
13087-030
Unavailable
17
PLATE-CLUTCH,T=1.6
13089-013
$13.16
18
PLATE CLUTCH FRICTION
13088-015
Unavailable
18
PLATE CLUTCH FRICTION
13088-015
Unavailable
18
PLATE,CLUTCH FRICTION
13088-1008
Unavailable
19
RING-CLUTCH STEEL
13229-003
Unavailable
20
PLATE-CLUTCH SPRING
13187-005
Unavailable
21
GUIDE CLUTCH SPRING
13092-005
Unavailable
22
SPRING CLUTCH
92081-042
$7.76
23
HOLDER CL SPG6.5X20X2
13091-009
Unavailable
24
BOLT-UPSET
112G0618
$1.01
25
PUSHER-CLTCH SPRG PLT
13116-011
Unavailable
26
RELEASE ASSY,CLUTCH
13231-1001
Unavailable
27
OIL SEAL
92056-007
Unavailable
28
BALL,STEEL,1/8"
600A0400
$1.40
29
RETAINER
13197-006
Unavailable
30
OUTER,CLUTCH RELEASE
13118-015
Unavailable
31
CIRCLIP-TYPE-C,15MM
480J1500
$2.31
32
OIL SEAL
92050-070
$29.52
33
NUT 6MM
311B0600
$0.93
34
SCREW SLOTTED
291Z0625
Unavailable
35
SCREW-PAN-CROS,6X16
220B0616
$2.84
