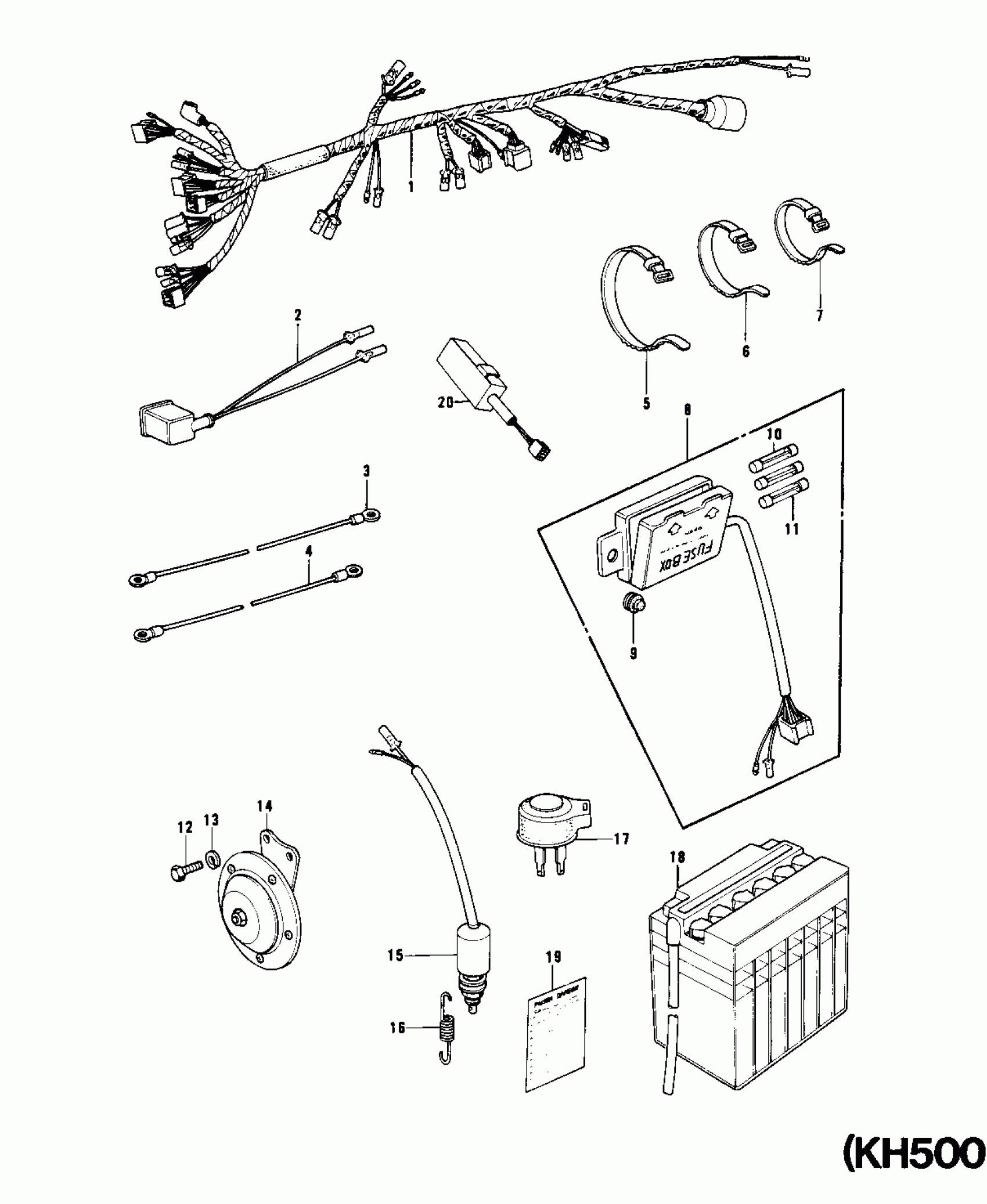

Kawasaki KH500-A8 CHASSIS ELECTRICAL EQUIPMENT (KH500-A8) Diagram

#

Description
Price

1

WIRING HARNESS,MAIN

26001-131

$132.66

2

WIRE,LEAD

26011-092

$7.14

3

WIRE-GROUND LEAD

26010-023

$15.34

4

WIRE-LEAD

26011-084

$15.53

5

BAND,L=186

92072-056

$5.00

6

BAND,L=149

92072-031

$5.00

7

BAND,L=123

92072-030

$5.00

8

FUSE-ASSY

26004-035

Unavailable

9

DAMPER,FUSE

92075-279

$6.45

10

FUSE,20A,L=25

26006-005

$5.06

11

FUSE,10A,L=25

26006-003

$4.72

12

BOLT-SMALL-UPSET,8X18

115G0818

$5.23

13

WASHER SPRING 8MM

461F0800

$0.40

14

HORN

27003-047

Unavailable

15

SWITCH-BRAKE LAMP

27010-015

Unavailable

16

SPRING,BRAKE LAMP SWITCH

27011-017

$9.82

17

RELAY-ASSY,TURN SIGNAL

27002-011

$101.43

18

YUA BAT 12N9-3B

26012-039

$37.23

19

LABEL-WARNING,BATTERY

56040-1036

Unavailable

20

SWITCH,OUTAGE,INDICTR

28019-001

Unavailable
