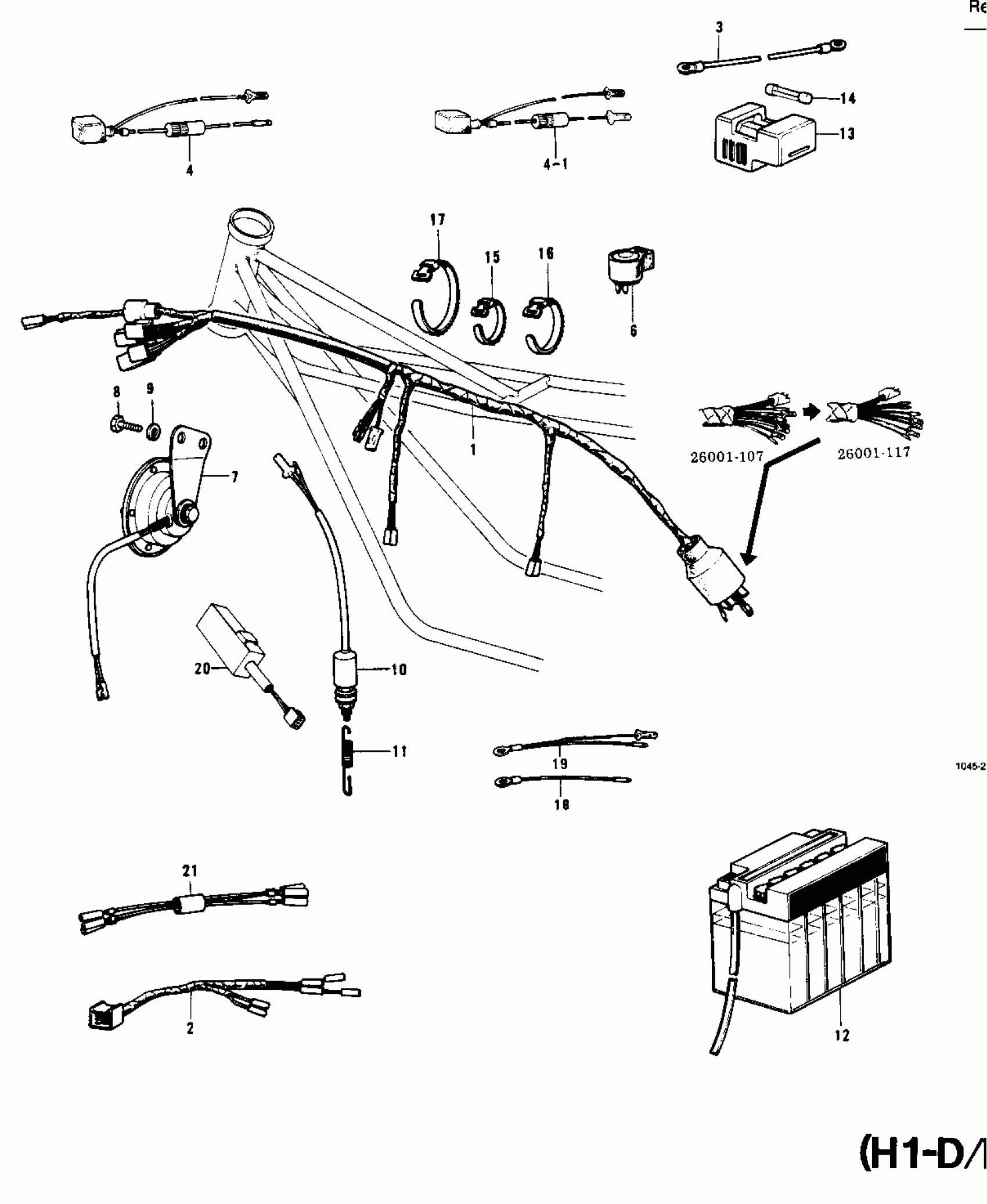

Kawasaki KH500-A8 CHASSIS ELECTRICAL EQUIPMENT (H1-D/E/F) Diagram

#

Description
Price

1

WIRING HARNESS,MAIN

26001-095

Unavailable

1

WIRING HARNESS,MAIN

26001-107

Unavailable

1

WIRING HARNESS,MAIN

26001-117

Unavailable

2

WIRING HARNESS,REAR

26002-039

Unavailable

3

WIRE-GROUND LEAD

26010-023

$15.34

4

FUSE ASSY

26004-016

Unavailable

4-1

FUSE ASSY

26004-023

Unavailable

5

FUSE,20A,L=25

26006-005

$5.06

6

RELAY-ASSY,TURN SIGNAL

27002-011

$101.43

7

HORN

27003-043

$115.29

7

HORN

27003-047

Unavailable

8

BOLT,8X20

115G0820

$5.14

8

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

9

WASHER SPRING 8MM

461F0800

$0.40

10

SWITCH-BRAKE LAMP

27010-020

Unavailable

10

SWITCH,BRAKE LAMP

27010-025

$29.24

11

SPRING-BRAKE LAMP SW

27011-013

$14.69

11

SPRING,BRAKE LAMP SWITCH

27011-017

$9.82

12

YUA BAT 12N9-3B

26012-039

$37.23

13

HOLDER,SPARE FUSE

26016-003

$10.29

14

FUSE,20A,L=25

26006-005

$5.06

15

BAND,L=123

92072-030

$5.00

16

BAND,L=149

92072-031

$5.00

17

BAND,L=186

92072-056

$5.00

18

WIRE,LEAD

26011-080

$5.44

19

WIRE,LEAD

26011-079

Unavailable

20

SWITCH,OUTAGE,INDICTR

28019-001

Unavailable

21

WIRE,IGNITION SW LEAD

26011-067

Unavailable
