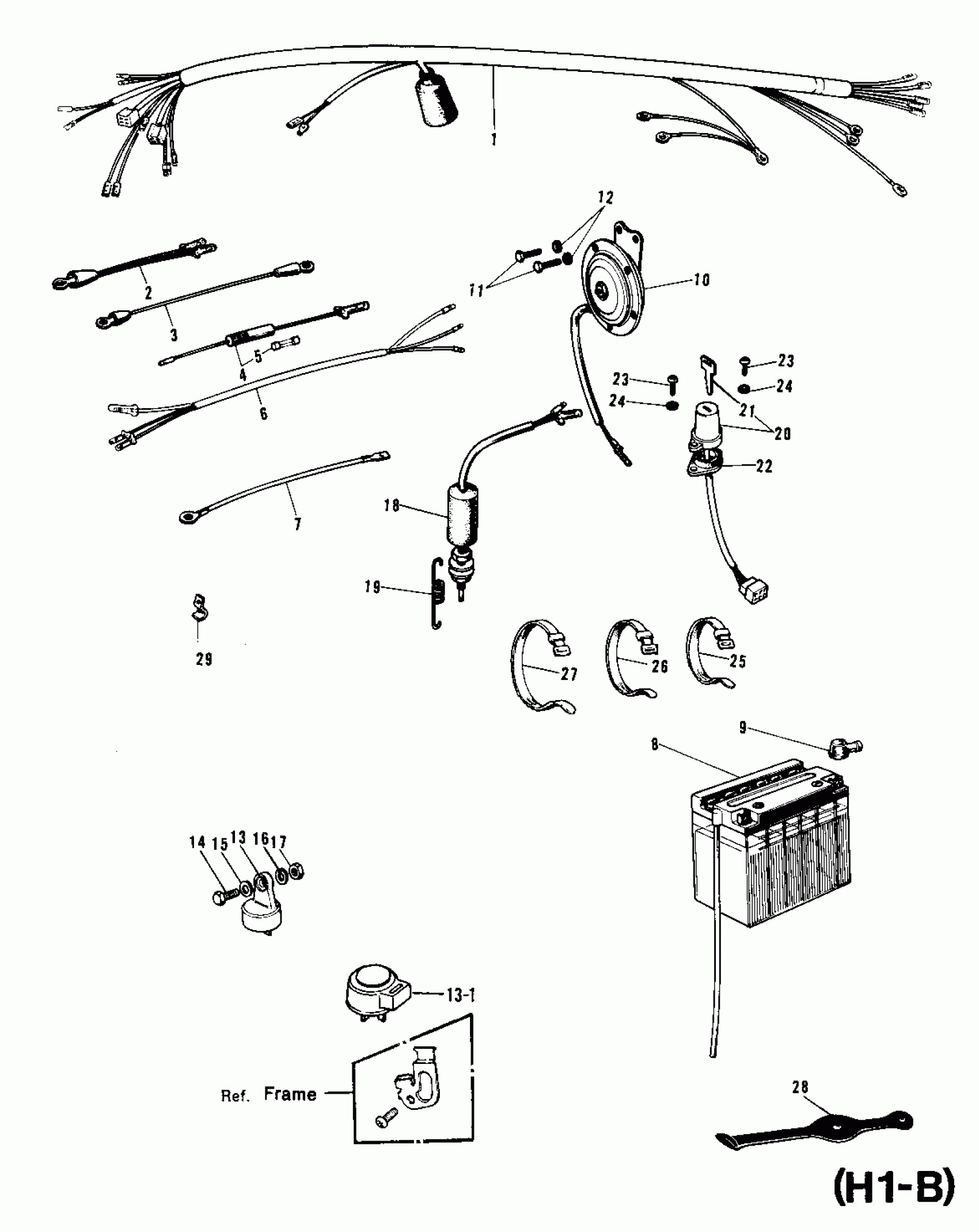

Kawasaki KH500-A8 CHASSIS ELECTRICAL EQUIPMENT (H1-B) Diagram

#

Description
Price

1

WIRING HARNESS-MAIN

26001-065

$215.05

2

WIRE BATTERY LEAD

26010-015

$9.50

3

WIRE BATTERY GROUND

26010-017

$4.23

4

FUSE ASSY

26004-010

Unavailable

4

FUSE ASSY

26004-015

Unavailable

5

FUSE 20A

26006-002

$3.77

6

WIRING HARNESS-REAR

26002-030

$17.17

7

WIRE-READ

26011-047

$7.37

8

YUA BAT 12N9-4B-1

26012-017

$52.67

9

CAP BAT TERMINAL RUBB

92073-001

$13.08

10

HORN

27003-042

Unavailable

10

HORN

27003-066

Unavailable

11

BOLT,8X20

115G0820

$5.14

12

WASHER SPRING 8MM

461F0800

$0.40

13

RELAY-TURN SIGNAL

27002-012

$66.35

13-1

RELAY-ASSY,TURN SIGNAL

27002-011

Unavailable

14

BOLT-UPSET 6X14

112B0614

Unavailable

15

WASHER,6.5X20X1.6

92022-125

$1.40

16

WASHER SPRING 6MM

461F0600

$0.69

17

NUT 6MM

311B0600

$0.93

18

SWITCH-BRAKE LAMP

27010-020

Unavailable

18

SWITCH-BRAKE LAMP

27010-020

Unavailable

19

SPRING-BRAKE LAMP SW

27011-013

$14.69

20

SWITCH-ASSY-IGNITION

27005-1058

Unavailable

20

SWITCH-ASSY-IGNITION

27005-1058

Unavailable

21

KEY SET #701

27008-042-01

Unavailable

21

KEY SET #705

27008-042-05

Unavailable

21

KEY SET #685

27008-042-85

Unavailable

21

KEY SET #689

27008-042-89

Unavailable

22

DAMPER RUBBER

92075-077

$9.19

23

BOLT-HEX HEAD,6MM

92007-026

Unavailable

24

WASHER PLAIN 8MM

410B0800

$0.93

25

BAND,L=123

92072-030

$5.00

26

BAND,L=149

92072-031

$5.00

27

BAND,L=218

92072-032

$5.00

28

BAND RUBBER

92072-018

Unavailable

29

CLAMP CABLE

92037-020

Unavailable
