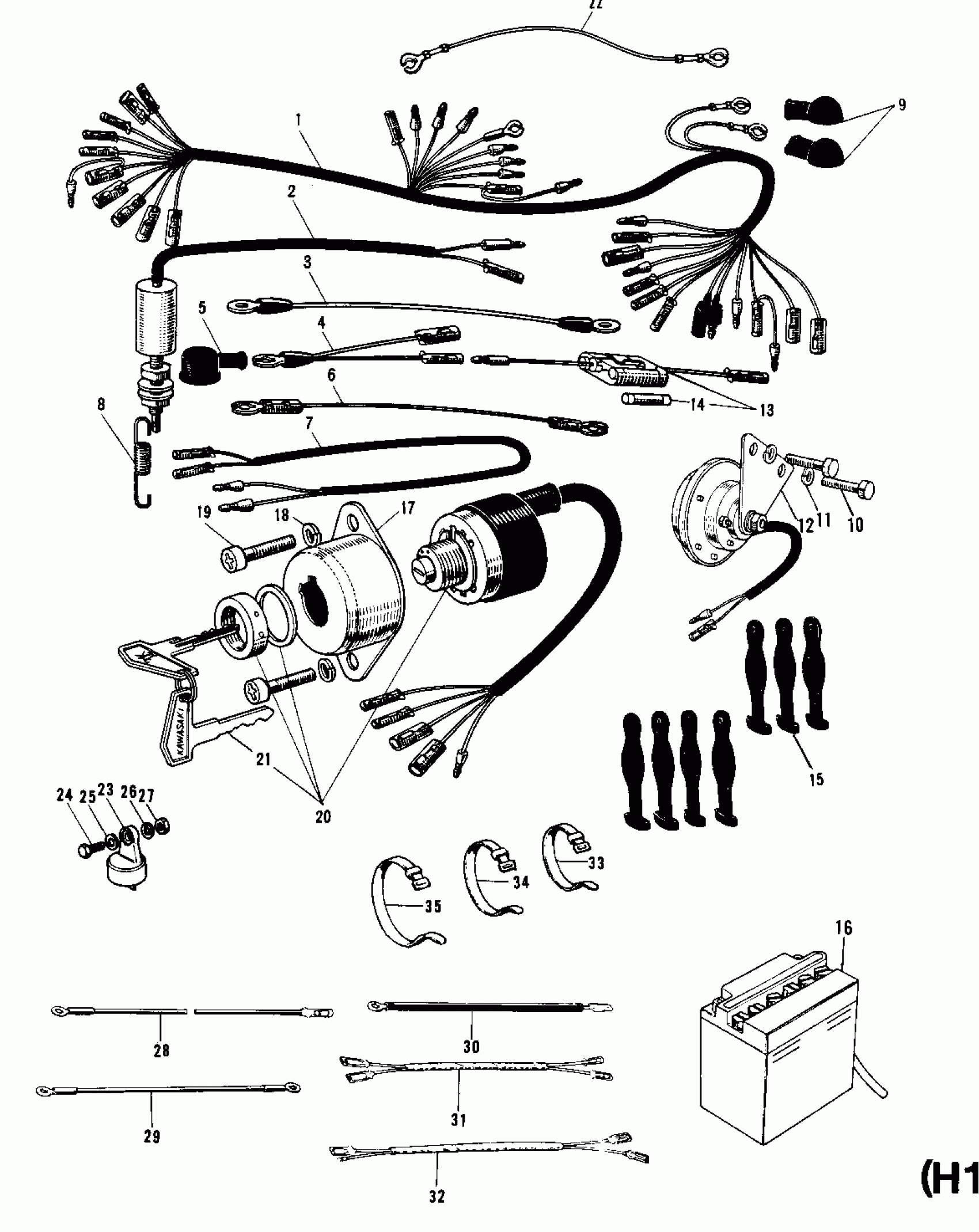

Kawasaki KH500-A8 CHASSIS ELECTRICAL EQUIPMENT (H1/A/C) Diagram
#
Description
Price
1
WIRING HARNESS MAIN
26001-031
Unavailable
2
SWITCH BRAKE LAMP
27010-006
$52.40
3
WIRE BATTERY GROUND
26010-014
$3.41
4
WIRE BATTERY LEAD
26010-015
$9.50
5
CAP BAT TERMINAL RUBB
92073-001
$13.08
6
WIRE GROUND
26011-025
$9.19
7
WIRING HARNESS REAR
26002-007
$6.07
8
SPRING BRAKE LAMP SW
27011-009
Unavailable
9
CAP IGNITION COIL
92073-003
$4.05
10
BOLT,8X20
115G0820
$5.14
11
WASHER SPRING 8MM
461F0800
$0.40
12
HORN
27003-014
Unavailable
13
FUSE ASSY
26004-005
$12.23
14
FUSE 20A
26006-002
$3.77
15
BAND RUBBER
92072-013
Unavailable
16
YUA BAT 12N9-4B-1
26012-017
$52.67
17
HOUSING IGNITION SW
27009-005
Unavailable
18
WASHER SPRING 6MM
461F0600
$0.69
19
SCREW PAN HEAD 6X12
220B0612
Unavailable
20
SWITCH ASSY IGNITION
27005-021
Unavailable
21
KEY SET NO.669
27008-027-69
Unavailable
21
KEY SET NO.676
27008-027-76
Unavailable
22
WIRE LEAD
26011-038
Unavailable
23
RELAY-TURN SIGNAL
27002-012
$66.35
24
BOLT-UPSET 6X14
112B0614
Unavailable
25
WASHER SPRING 6MM
461F0600
$0.69
26
WASHER,6.5X20X1.6
92022-125
$1.40
27
NUT 6MM
311B0600
$0.93
28
WIRE BATTERY LEAD
26010-016
$2.33
29
WIRE BATTERY GROUND
26010-017
$4.23
30
WIRE-READ
26011-047
$7.37
31
WIRE-LEAD
26011-057
$4.24
32
WIRE-LEAD
26011-058
$5.44
33
BAND,L=123
92072-030
$5.00
34
BAND,L=149
92072-031
$5.00
35
BAND,L=218
92072-032
$5.00
